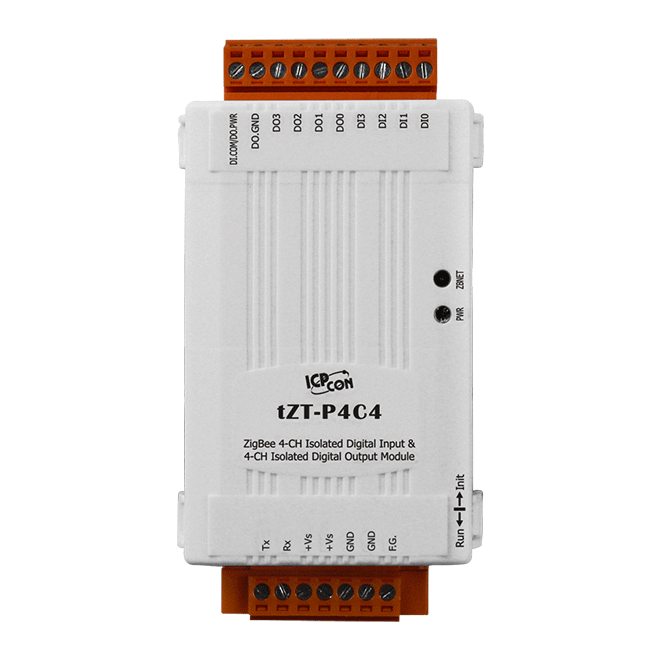

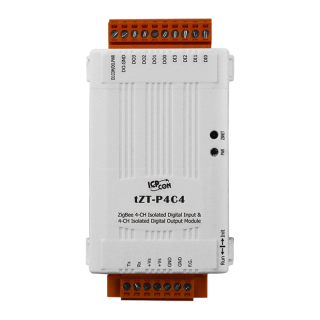

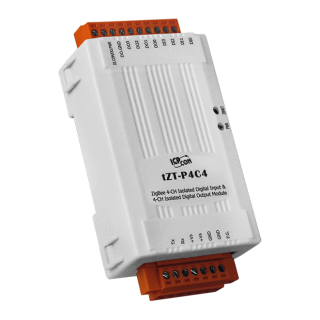

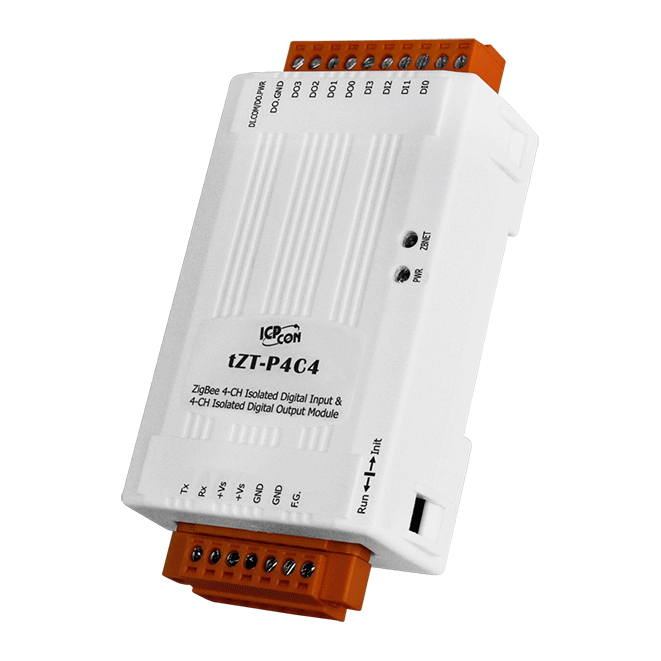

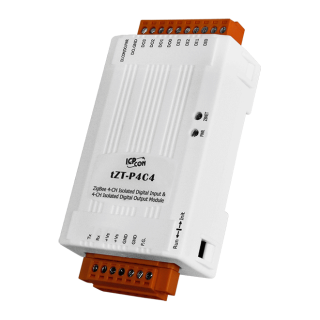

tZT-P4C4

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee 2007 Pro Specifications
  • Wireless Transmission Range up to 300 m
  • Adjustable RF Transmission Output Power
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 4 Digital Input Channels and 4 Digital Output Channels
  • All Digital Input Channels can be used as 16-bit Counters
  • Sink-type Digital Output Channels with Overload Protection
  • Surge and ESD Protection
  • Configurable Power-on Value and Safe Value Settings
  • DIN-Rail Mountable

Introduction

The tZT-P4C4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocouple isolation. The tZT-P4C4 supports sink-type output with short circuit protection, while input is source-type. All input channels can be used a 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The tZT series products of ICP DAS have the advantage of low cost and low power consumption of ZigBee. Provide wireless communication capability up to 300 meters (LOS) standard transmission distance. Coupled with the dynamic mesh network, users can easily catch DIO data in difficult-to-wire environments.

Application

Specifications

 CPU Module
 Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)





 EMS Protection
 EFT (IEC 61000-4-4) ±1 kV for Power
 ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal



 LED Indicators
 Status 1 x Power and Communication



 ZigBee
 Antenna 2.4 GHz - PCB Antenna (3dBi, 50Ω)
 Protocol Supports DCON and ModBus
 Standard ZigBee 2007 Pro
 Transmission Power 11dBm (Max. 19dBm)
 Transmission Distance (LoS) 300 m



 Digital Input/Counter
 Channels 4
 Type Wet Contact
 Sink/Source (NPN/PNP) Source
 ON Voltage Level +6 VDC ~ +50 VDC
 OFF Voltage Level Max. +5 VDC
 Max. Counts 65535 (16-bit)
 Frequency 100 Hz
 Min. Pulse Width 5 ms
 Input Impedance 10 KΩ, 0.66W
 Overvoltage Protection ± 70 VDC



 Digital Output
 Channels 4
 Type Isolated Open Collector
 Sink/Source (NPN/PNP) Sink
 Load Voltage +3.5 ~ +50 VDC
 Load Current 700mA/channel
 Overvoltage Protection Yes
 Overload Protection Yes
 Power on Value Yes, Programmable
 Safe Value Yes, Programmable



 Power
 Consumption 1 W Max.



 Mechanical
 Dimensions (mm) 98 x 52 x 27 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 95% RH, Non-condensing
