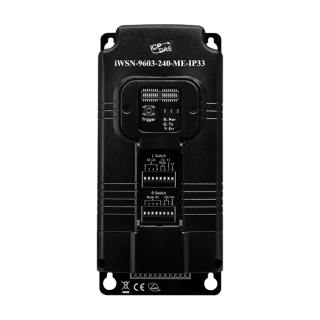

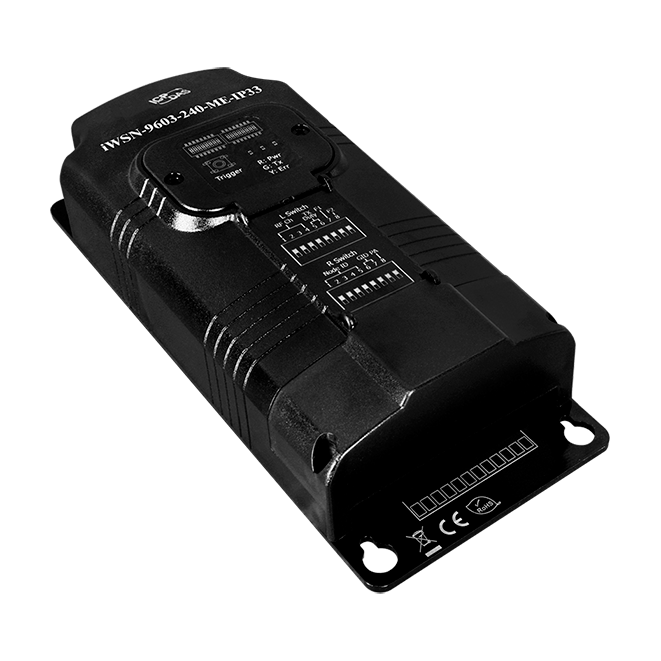

The iWSN-9603 series module is a 3-phase AC power meter, which provides one 3-phase voltage input and two 3-phase 100A current CT inputs, and suits measuring the power information of different equipment powered by the same AC source. By means of wireless communication and powering from the measured voltage cable, it can greatly reduce the cost and duration of installation, and satisfy to the demand of distributed deployment and quick setup. Moreover, the features of Sub-GHz radio frequency and data supplement mechanism effectively improve the reliability of the wireless communication especially in the crowed or seriously shielded space of the factory environment. Consider the maintenance and installation issues, the iWSN-9603 series module is configured by the DIP switches, and uses special housing with IP33 protection to avoid the circuit short while the fire sprinkler system is activated if the module is located out of the panel box. Through the design of RTC and data timestamp, the iWSN-9603 series can fit the power saving applications, such as machine and process power efficiency improvement, power information administration, calculation of carbon emission, predictive maintenance, and big data analysis of power consumption.
Machine and process power efficiency improvement
Power information administration
Calculation of carbon emission
Predictive maintenance
Big data analysis of power consumption
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | +/- 500 V |
ESD (IEC 61000-4-2) | +/- 4 kV Contact |
LED Indicators | |
---|---|
Status | 1 x Power 1 x Tx 1 x Error |
AC Power Measurement | |
---|---|
Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
Loops | 4(Single Phase)/ 2(Three Phase) |
Input Voltage | Three phase 4 wire x1, 100 - 480 VAC (58 - 277 VAC single phase) |
Input Current | 1A ~ 400A, depended on the connected CTs which refer to the accessories. |
Input Frequency | 50/60 Hz |
Wh Accuracy | Better than 2% (PF=1) |
Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
Data Update Rate | 1, 10, 30, or 60 Seconds |
CT | |
---|---|
Includes CTs | 6 |
Type | Split core CT |
Max. Current | 200A |
Inside Diameter | 24mm |
Leading Cable | 8m |
RF | |
---|---|
Channels | 0 ~ 15 |
Group ID | 0 ~ 3 |
Radio Frequency | 433.1000 ~ 434.6000 MHz |
Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
Transmission Distance (LoS) | 100 m |
Node ID | 1 ~ 31 |
Working Duty | 1, 10, 30, or 60 Seconds |
Antenna | |
---|---|
Type | Built-in Omni-directional antenn |
Power | |
---|---|
Consumption | 3W |
Input Type | Three phase 100 - 480 VAC (58 - 277 VAC single phase) |
Mechanical | |
---|---|
Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
Installation | Wall-mount |
Ingress Protection Rating | IP33 |
Environment | |
---|---|
Operating Temperature | -30 °C ~ +50 °C |
Storage Temperature | --40 °C ~ +55 °C |
Humidity | 10 ~ 90% RH, Non-condensing |
CA-SCT16I-100A-L080 | CA-SCT24I-200A-L080 | CA-SCT36I-400A-L080 |
PRODUCT SERIES | DESCRIPTION | QTY | INQUIRY |
---|---|---|---|

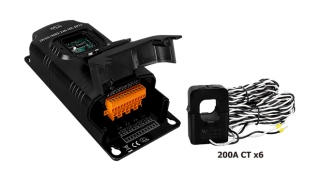

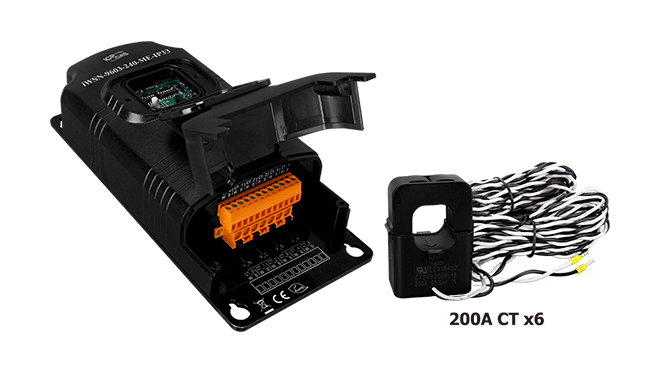

iWSN-9603-240-ME-IP33 CR | iWSN Wireless 3-phase 2-loop intelligent power meter; Includes 200A CT (Inside diameter 24 mm; wire lead 8 m) x 6 (RoHS) | 1 |
