Data Acquisition

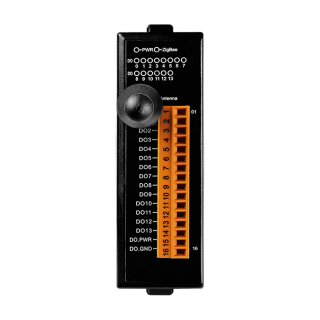

ZT-2042

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G/ ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • External DIP and Rotary Switches for easy Configuration
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 4 PhotoMOS Relay Output Channels and 4 Open Collector Digital Output
  • Channels
  • Short Circuit Protection
  • Surge and ESD Protection
  • Configurable Power-on Value and Safe Value Settings
  • DIN-Rail Mounting

Introduction

The ZT-2042 offers 4 PhotoMOS relay output channels and 4 sink-type digital output channels with short circuit protection. Each channel features photo couple isolation. There are options for configuring power-on and safe digital output values. The ZT-2042 has 8 LED indicators to display the DO channel status. 4 kV ESD protection and 3000 VDC intra-module isolation are the standard. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

 CPU Module
 Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)



 Isolation
 Intra-module Isolation 3000 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Power Line, Communication Line and each Channel, ±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±3 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication
8 x Digital Output



 ZigBee
 Antenna 2.4 GHz - 5 dBi Omni directional
 Certifications FCC/FCC ID, CE (RED excluded)
 Max. Slaves 255
 Protocol Supports DCON and Modbus RTU Protocols
 Standard 11 dBm (FCC Certificated) (Max. 19 dBm)
 Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
 Transmission Distance (LoS) 700 m (Typical)



 Digital Output
 Channels 4 (Sink)
 Type Isolated Open Collector
 Load Voltage +5 VDC ~ +50 VDC
 Load Current 700 mA/channel
 Overvoltage Protection Yes
 Overload Protection 1.1 A
 Safe Value Yes



 Relay Output
 Channels 4
 Type PhotoMOS Relay, Form A
 Power on Value Yes
 Safe Value Yes



 Power
 Input Range +10 VDC ~ +30 VDC
 Consumption 1.32 W(Max.)



 Mechanical
 Dimensions (mm) 33 x 87 x 110 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
ZT-2042     CR  ZigBee Wireless 4-ch PhotoMOS Relay and 4-ch DO Module (ZigBee Router) (RoHS)
(Asia Only)		 1
