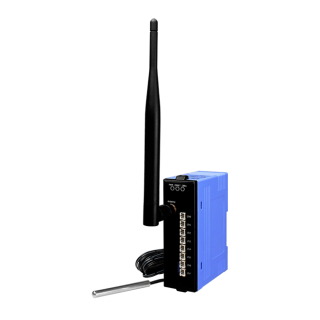

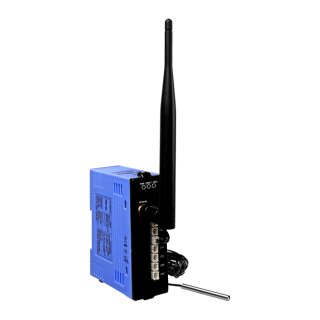

ZT-2005-C8

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with IEEE802.15.4/ZigBee Specifications (ZigBee Pro/ZigBee 2007)
  • Wireless Transmission Range up to 700 meters (Line of Sight)
  • Supports ZigBee Repeater Function
  • Supports DCON and Modbus RTU protocols
  • 8-Channel Thermistor Input
  • Resolution: 12 bits
  • Accuracy: ±1°C
  • DIN-Rail Mountable
  • Operating Temperatures, -25 °C ~ +75 °C

Introduction

The ZT-2005-C8 is an 8-channel thermistor input module of ZigBee. It based on the IEEE802.15.4 standard that allows users to measuring temperature via a thermistor in a personal area ZigBee network. The typical transmission of ZT-2005-C8 is 700 meters (LOS, line of sight), with a transmission frequency range of between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches. ZT-2005-C8 has 4 kV ESD protection and 1000 VDC intra-module isolation.

Application

Specifications

 Isolation
 Intra-module Isolation 1000 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Power Line, Communication Line and each Channel, ±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±3 kV for Power Line



 LED Indicators
 Status 1 x Communication
1 x RxD
1 x Power



 ZigBee
 Antenna 2.4 GHz - 5 dBi Omni directional
 Certifications CE/FCC
 Encryption AES-128
 Max. Slaves 255
 Protocol Supports DCON and Modbus RTU Protocols
 Standard ZigBee 2007 Pro
 Transmission Power 11 dBm (FCC Certificated) ( Max 19 dBm)
 Transmission Distance (LoS) 700 m (Typical)



 Thermistor Input
 B Constant R25/85=3435(K)±1%
 Dissipation Factor ≧3(mW/°C)
 Measuring Temperature Range -40 ~ 105°C
 Pipe φ6x60mm, stainless stell (SUS304)
 Resistance R25=10K(Ω)±1%
 Thermal Time Constant ≦15 (sec)
 Wiring 4.94m, UL2651 #24AWG*2C (TS)



 Analog Input
 Channels 8
 Type Thermistor (Only CA-021)
 Resolution 12 bits
 Accuracy ±1°C
 Sampling Rate 10 Hz total



 Power
 Input Range +10 VDC ~ +30 VDC
 Consumption 1 W(Max.)



 Mechanical
 Dimensions (mm) 33 x 87 x 110 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
ZT-2005-C8     CR  ZigBee Wireless 8-ch Thermistor Input Module(ZigBee Router) (RoHS)
(Included Thermistor x 1)
(Asia Only)		 1
