Made in India
Specifications: |
MCU Cortex M3 32-bit ARM |
Power supply 12V DC (Standard adapter: DC 12V/1.5A) |
Consumption 12V input Max. 340mA |
Temperature range - 400 to + 80 0 C (±0.3 0 C) |
Humidity range 0% to 100% (±2RH%) |
Max.2 (standard packing: 1 probe) Probe Option: temperature, temperature & humidity probe |

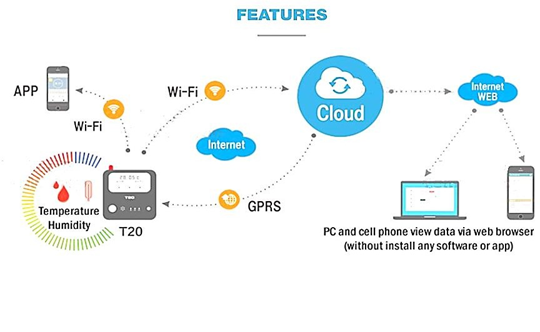

Either GPRS (or 4G, need sim card) or Wi-Fi (Not need sim card) Option: Wireless Network GSM/GPRS (4 band 850/900/1800/1900Mhz) FDD LTE(4G) Wi-Fi, 802.11 b/g security WEP/WPA/WPA2 |
GPS module Optional for 4G |
Antenna interface Standard SMA female interface (50Ω) |
Working temperature - 30 0 C ~ +70 0 C |
Working humidity Relative humidity 95% |
Display OLED |
Key Touch |
Digital input 2 channel |
Digital Output 3 relay output (NO), DC220V 2A/AC 125V 2A |
Alarm light Red LED light |
Alarm sound Inside buzzer, Loudness: 85dB |
Config port Mini USB, (windows) |
Battery lithium-polymer, 500mAh/3.7V, life:6 hours |
Dimension 130x130x20mm |
Weight 265g |
Housing Aluminum front panel, back case ABS |
PRODUCT SERIES | DESCRIPTION | QTY | INQUIRY |
---|---|---|---|
NT-T20-4G/Wi-Fi |

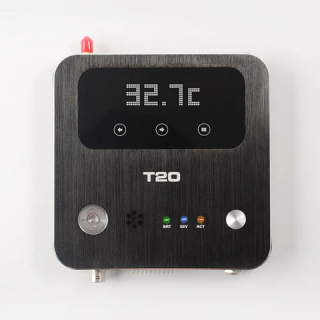

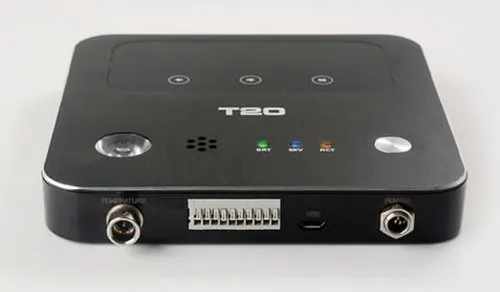

T20 Wireless Gsm 4g/Wifi Temperature Humidity Alarm Controller Data Logger |
1 |
