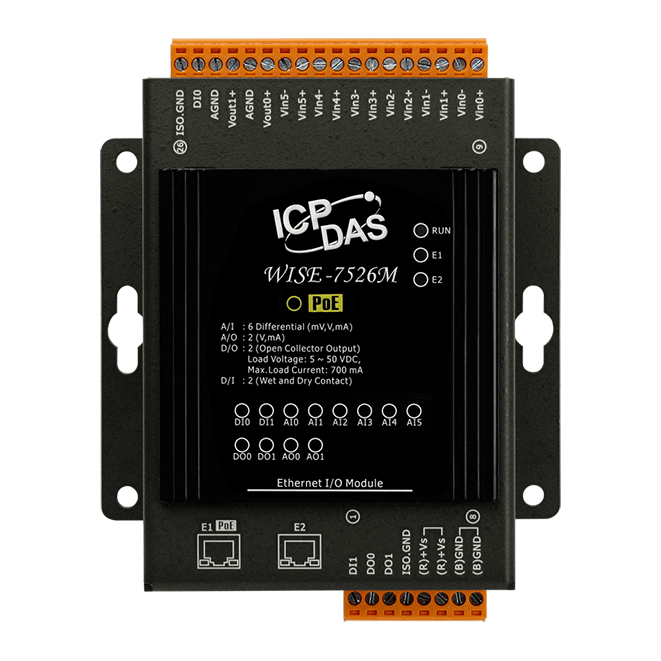

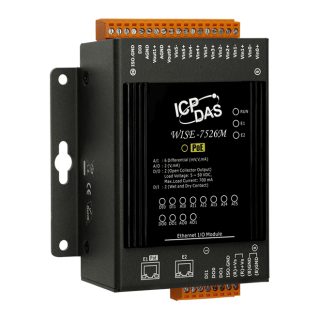

WISE-7526M

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (AI: 6 Channels; AO: 2 Channels; DI: 2 Channels; DO: 2 Channels).
  • Support I/O channel monitoring/control, Timer, Schedule operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • MQTT Protocol for IT & IoT (Internet of Things) System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).
  • 2-port Ethernet Switch for Daisy-Chain Topology.

Introduction

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.

WISE-7526M is a multi-function module with 6-channel analog inputs, 2-channel analog outputs, 2-channel digital inputs and 2-channel digital outputs. It provides various programmable analog inputs, and analog outputs. Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. WISE-7526M follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7526M also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.

By integrating with IF-THEN-ELSE rule engine, WISE-7526M provides more powerful functions such as I/O Moniitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7526M also supports Modbus TCP and MQTT protocol to make seamless integration with SCADA, IT and IoT (Internet of Things) system.


Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.

Specifications

 Software
 Protocol • Modbus TCP
• CGI Command (Sending)
• MQTT Client (non-SSL)
• Active I/O (MQTT Publish)
 Function • Web Interface for Configuration
• IF-THEN-ELSE Logic operation (72 rules supported)
• I/O channel monitoring and control
• Timer operation (24 set supported)
• Schedule operation (24 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (24 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
• SNTP Time Synchronization



 CPU Module
 CPU 32-bit CPU (80 MHz)



 Isolation
 Intra-module Isolation 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±2 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for each terminal and ±8 kV Air for random point
 Surge (IEC 61000-4-5) ±2 kV for Power Line



 LED Indicators
 Status 1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
12 x I/O Channel Status



 Analog Input
 Channels 6 (Differential)
 Type ±500 mV, ±1 V, ±5 V, ±10 V,
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
(Jumper Selectable)
 Resolution 16-bit
 Accuracy ±0.1%
 Sampling Rate 10 Sample/Sec. (Total)
 Input Impedance Voltage: 2 MΩ
Current: 125 Ω
 Common Mode Rejection 86 dB Min.
 Normal Mode Rejection 100 dB
 Common Voltage Protection ±200 VDC
 Overvoltage Protection 240 Vrms
 Overcurrent Protection Yes, 50 mA Max. at 110 VDC/VAC Max
 Individual Channel Configuration Yes
 Channel-to-Channel Isolation Yes, ±400 VDC
 Open Wire Detection Yes, for 4 ~ 20 mA only
 Zero Drift ±20 μV/°C
 Span Drift ±25 ppm/°C



 Analog Output
 Channels 2
 Type 0 ~ 5 VDC, ± 5 VDC, 0 ~ 10 VDC, ± 10 VDC
0 ~ 20 mA, 4 ~ 20 mA
(Jumper Selectable)
 Resolution 12-bit
 Accuracy ±0.1% of FSR
 Open Wire Detection Yes, for 4 ~ 20 mA only
 Voltage Output Capability 20 mA @ 10 V
 Current Load Resistance 500 Ω



 Digital Input/Counter
 Channels 2
 Type Dry + Wet Contact
 Sink/Source (NPN/PNP) Dry: Source
Wet: Sink/Source
 ON Voltage Level Dry: Close to GND
Wet: +1 VDC Max.
 OFF Voltage Level Dry: Open
Wet: +3.5 VDC ~ + 30 VDC
 Max. Counts 16-bit (65535)
 Frequency 50 Hz
 Min. Pulse Width 10 ms
 Effective Distance 500M Max.
 Overvoltage Protection +30 VDC



 Digital Output
 Channels 2
 Type Isolated Open Collector
 Sink/Source (NPN/PNP) Sink
 Load Voltage +5 VDC ~ +50 VDC
 Load Current 700 mA/Channel
 Overvoltage Protection 60 VDC
 Overload Protection 1.4 A
 Short-circuit Protection Yes



 Ethernet
 Ports RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)
 PoE Yes



 Power
 Reverse Polarity Protection Yes
 Input Range 12 ~ 48 VDC
 Consumption 4.4 W
 Powered from PoE Yes, IEEE 802.3af, Class 1
 Powered from Terminal Block Yes, 12 ~ 48 VDC



 Mechanical
Dimensions (mm) 97 x 120 x 42 (W x L x H)
Installation Wall Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Accessories

GPSU06U-6 MDR-20-24 NS-205
GPSU06U-6
 MDR-20-24 NS-205

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
WISE-7526M     CR  Intelligent I/O Module with 2-port Ethernet Switch, 6-ch AI, 2-ch AO, 2-ch DI, 2-ch DO and PoE. Supports Modbus/TCP and MQTT (RoHS) 1
