Data Acquisition

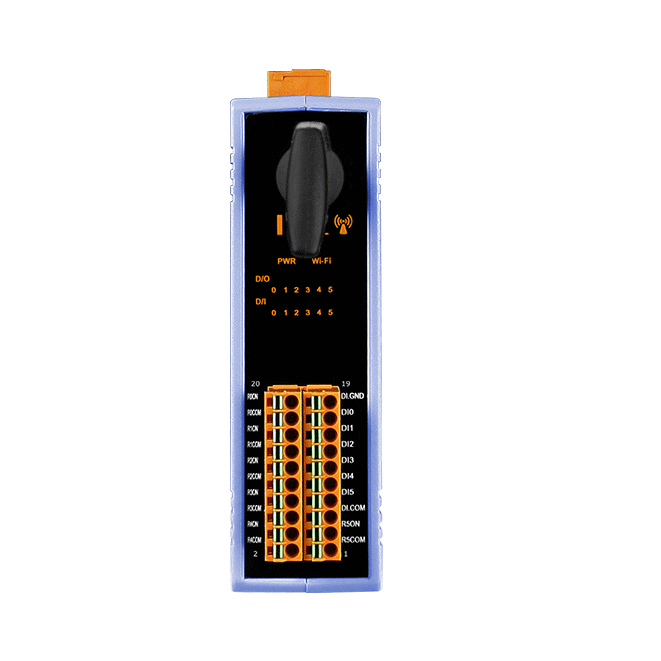

WF-2260

  • Compatible with IEEE 802.11a/b/g/n standards
  • Support WEP, WPA and WPA2 wireless encryption
  • Support Modbus TCP protocols
  • Support I/O pair connection mode
  • Built-in Watchdog

 -DI/Counter: 6 Channels
 -Power Relay: 6 Channels

Introduction

The WF-2260 is a dual bands 2.4/5 GHz Wi-Fi interface and  8-channel isolated digital input with 32-bit counters, 8-channel sink type isolated digital output module. With the popularity of 802.11 network infrastructure, the WF-2260 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2260 also supports Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

Application

Specifications

 Isolation
 Intra-module Isolation DI: 3750 VDC



 Wi-Fi
 Transmission Distance (LoS) 50 meters (LOS)
 Standard IEEE 802.11 a/b/g/n
 RX Sensitivity -95 dBm @ 2.4 GHz
-90 dBm @ 5 GHz
 Output Power 15 dBm (Max.)
 Mode Infrastructure & Limit-AP
 Encryption WEP, WPA and WPA2
 Antenna Omni-Directional
3 dBi @ 2.4 GHz
5.5 dBi @ 5 GHz



 Digital Input/Counter
 Channels 6
Counters: 6
 Type Dry Contact
Wet Contact
 Sink/Source (NPN/PNP) Dry: Source
Wet: Sink/Source
 ON Voltage Level Dry: Close to GND
Wet: +10 ~ 50 VDC
 OFF Voltage Level Dry:Open
Wet: +4 VDC Max.
 Max. Counts 32-bit (4294967295)
 Frequency 8K Hz Max.



 Relay Output
 Channels 6
 Type Power Relay (SPST-NO)
 Contact Rating Form A: 5 A 250 VAC (47 ~ 63 Hz)；5 A 30 VDC
 Operate Time Form A: 10 ms
 Release Time Form A: 5 ms
 Electrical Endurance 100,000 times min.
 Mechanical Endurance 20,000,000 times min.



 Power
 Input Range +10 VDC ~ +30 VDC
 Consumption 1.6 W



 Mechanical
 Dimensions (mm) 33 x 127 x 107 (W x L x H)
(Without antenna)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Accessories

3S001-1 3S003-1 3S005-1
3S001-1 3S003-1 3S005-1

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY

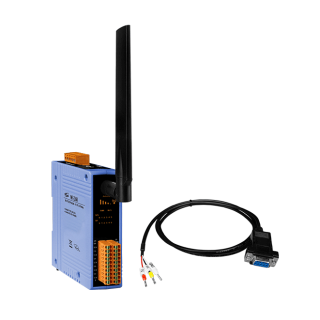

WF-2260     CR  Wi-Fi I/O Module with Isolated 6-ch (Dry, Wet) DI and 6-ch Relay (Asia Only) (RoHS)
Includes ANT-225-5 Antenna and CA-0910 Cable		 1
