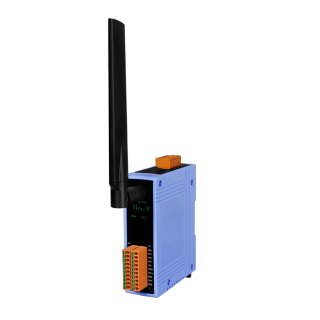

WF-2226

  • Compatible with IEEE 802.11a/b/g/n standards
  • Support WEP, WPA and WPA2 wireless encryption
  • Support Modbus TCP protocols
  • Built-in Watchdog
  • Built-in I/O

 -AI: 5 Channels
 -AO: 2 Channels
 -DI/Counter: 2 Channels
 -DO: 3 Channels

Introduction

The WF-2226 is a multifunction module with dual bands 2.4/5 GHz Wi-Fi interface that includes 5 analog input channels, 2 analog output channels, 2 digital input channels and 3 digital output channels. It provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA) and output range on all analog output (12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA). Each analog input and output channel can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Analog Input and output can be jumper selectable as either voltage or current. With the popularity of 802.11 network infrastructure, the WF-2226 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2226 also supports Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

Application

Specifications

 Isolation
 Intra-module Isolation Power: 3000 VDC
DO: 3750 VDC
DI: 3750 VDC



 Wi-Fi
 Transmission Distance (LoS) 50 meters (LOS)
 Standard IEEE 802.11 a/b/g/n
 RX Sensitivity -95 dBm @ 2.4 GHz
-90 dBm @ 5 GHz
 Output Power 15 dBm (Max.)
 Mode Infrastructure & Limit-AP
 Encryption WEP, WPA and WPA2
 Antenna Omni-Directional 3 dBi @ 2.4 GHz; 5.5 dBi @ 5 GHz



 Analog Input
 Channels 5 (Differential)
 Type Voltage
Current
 Range Voltage: ±150 mVDC, ±500 mVDC, ±1 VDC, ±5 VDC, ±10 VDC
Current: 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA (Jumper Selectable)
 Resolution 6-bit
 Accuracy ±0.1% of FSR
 Sampling Rate 10 Hz (Total)
 Input Impedance Voltage: 2 MΩ
Current: 140 Ω
 Common Mode Rejection 86 dB Min.
 Normal Mode Rejection 100 dB
 Overvoltage Protection 240 Vrms
 Overcurrent Protection Yes, 50 mA @ 110 VDC
 Individual Channel Configuration Yes
 Zero Drift ±20 μV/°C
 Span Drift ±25 ppm/°C



 Analog Output
 Channels 2
 Type Voltage: +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC
Current: +0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable)
 Resolution 12-bit
 Accuracy ±0.1% of FSR
 Voltage Output Capability 10 VDC @ 20 mA
 Power-on Value Yes, Programmable
 Safe Value Yes, Programmable



 Digital Input/Counter
 Channels 2
 Type Dry Contact
 Sink/Source (NPN/PNP) Source
 ON Voltage Level Close to GND
 OFF Voltage Level Open



 Digital Output
 Channels 3
 Sink/Source (NPN/PNP) Sink (NPN)
 Load Voltage +3.5 ~ +50 V
 Load Current 700 mA per channel
 Overvoltage Protection 60 VDC
 Short-circuit Protection Yes
 Power on Value Yes, Programmable
 Safe Value Yes, Programmable



 Power
 Input Range +10 VDC ~ +30 VDC
 Consumption 2.2 W



 Mechanical
 Dimensions (mm) 33 x 127 x 107 (W x L x H)
(Without antenna)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Accessories

3S001-1 3S003-1 3S005-1
3S001-1 3S003-1 3S005-1

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
WF-2226     CR  Wi-Fi I/O Module with 5-ch AI, 2-ch AO, 2-ch DI and 3-ch DO (Asia Only) (RoHS)

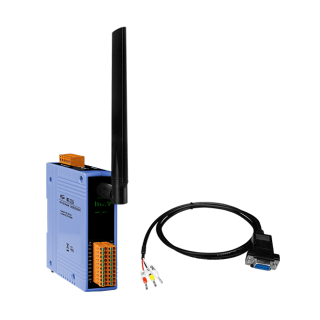

Includes ANT-225-5 Antenna and CA-0910 Cable		 1
