• Multifunction (5-AI, 2-AO, 2-DI and 3-DO)
• Individual Channel Configuration
• Jumper Selectable Voltage or Current Input/Output
• Configurable Power-on and Safe Value Settings
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Support DO/AO power on value & safe value mechanism
• Overload and Short Circuit Protection for Digital Output
• 240 Vrms Overvoltage Protection for Voltage Input
• ±4 kV Contact ESD Protection
• Built-in Watchdog

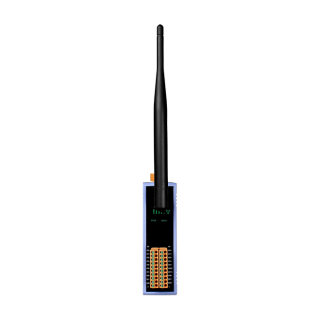

The WF-2026 is a multifunction module with Wi-Fi interface that includes 5 analog input channels, 2 analog output channels, 2 digital input channels and 3 digital output channels. It provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA) and output range on all analog output (12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA). Each analog input and output channel can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Analog Input and output can be jumper selectable as either voltage or current. With the popularity of 802.11 network infrastructure, the WF-2026 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2026 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
Isolation | |
---|---|
Intra-module Isolation | Power: 3000 VDC DO: 3750 VDC DI: 3750 VDC |
Wi-Fi | |
---|---|
Transmission Distance (LoS) | 50 meters (LOS) |
Standard | IEEE 802.11 b/g* IEEE 802.11 b/g/n** |
RX Sensitivity | -83 dBm @ 11 Mbps* -93 dBm @ 11 Mbps** |
Output Power | 8 dBm @ 11 Mbps* 14 dBm @ 11 Mbps** |
Mode | Infrastructure & Ad-hoc* Infrastructure & Limit-AP** |
Encryption | WEP, WPA and WPA2 |
Antenna | 5 dBi (Omni-Directional) |
Analog Input | |
---|---|
Channels | 5 (Differential) |
Type | Voltage Current |
Range | Voltage: ±150 mVDC, ±500 mVDC, ±1 VDC, ±5 VDC, ±10 VDC Current: 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA (Jumper Selectable) |
Resolution | 16-bit |
Accuracy | ±0.1% of FSR |
Sampling Rate | 10 Hz (Total) |
Input Impedance | Voltage: 2 MΩ Current: 140 Ω |
Common Mode Rejection | 86 dB Min. |
Normal Mode Rejection | 100 dB |
Overvoltage Protection | 240 Vrms |
Overcurrent Protection | Yes, 50 mA @ 110 VDC |
Individual Channel Configuration | Yes |
Zero Drift | ±20 μV/°C |
Span Drift | ±25 ppm/°C |
Analog Output | |
---|---|
Channels | 2 |
Type | Voltage: +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC Current: +0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable) |
Resolution | 12-bit |
Accuracy | ±0.1% of FSR |
Voltage Output Capability | 10 VDC @ 20 mA |
Power-on Value | Yes, Programmable |
Safe Value | Yes, Programmable |
Digital Input/Counter | |
---|---|
Channels | 2 |
Type | Dry Contact |
Sink/Source (NPN/PNP) | Source |
ON Voltage Level | Close to GND |
OFF Voltage Level | Open |
Digital Output | |
---|---|
Channels | 3 |
Sink/Source (NPN/PNP) | Sink (NPN) |
Load Voltage | +3.5 ~ +50 V |
Load Current | 700 mA per channel |
Overvoltage Protection | 60 VDC |
Short-circuit Protection | Yes |
Power on Value | Yes, Programmable |
Safe Value | Yes, Programmable |
Power | |
---|---|
Input Range | +10 VDC ~ +30 VDC |
Consumption | 2.2 W |
Mechanical | |
---|---|
Dimensions (mm) | 33 x 127 x 107 (W x L x H) (Without antenna) |
Installation | DIN-Rail Mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80 °C |
Humidity | 10 to 90% RH, Non-condensing |
3S001-1 | 3S003-1 | 3S005-1 |
PRODUCT SERIES | DESCRIPTION | QNT | INQUIRY |
---|---|---|---|
WF-2026 CR | Wi-Fi I/O Module with 5-ch AI, 2-ch AO, 2-ch DI and 3-ch DO (Asia Only) (RoHS) Includes ANT-124-05 Antenna and CA-0910 Cable |
