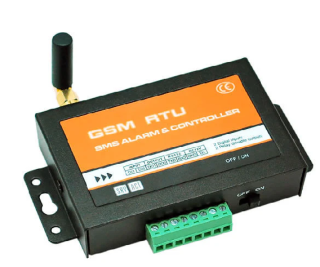

SMS Alarm Controller



  • Can add 10 user numbers to receive sms alarm & remote manage.
  • Power lost and recover SMS Alarm.
  • 2 Digital Input(Dry Contact) can be triggered to send SMS.
  • 1 Relay output can be remotely activated (ON/OFF/PULSE) by SMS.
  • One transistor output can activated external siren, relay, etc.
  • Remote update configuratiion by SMS.
  • Provide Cloude Service, manage device and website and APP.
  • Reliable performance with built-in Watchdog, 24X7 Operation.

Specifications

 Network
 Wireless Network Default GSM/GPRS



I/O Channel
 Digital input(DI) 2 Ch Dry contact trigger
Digital Output(DO) 2 Relay Output



 SIM Card
  Supporting 3V/1.8V SIM Card



 COM Ports
 Ports RS232C
 Antenna 50ohm SMA Antenna Interface



 Power
 Input Range +12 ~ +24 VDC
 Consumption 12V Input Max 150mA/Average 50mA
 Frequency Range Quad-Frequency 900/1800/850/1900MHz



 Mechanical
 Dimensions (mm) 88 x 60 x 25 mm
 Weight 150g



 Environment
 Operating Temperature -30 ~ +70 °C
Humidity Relative Humidity 95%



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 NT-5005 GSM Alarm and Controller With 2DI/2DO 1
