SG-3081-G

• Three-way isolation: 1000 Vdc
• Accuracy: ±0.1% of full range
• Easy to configure input/output range
• Three VRs for calibrating accuracy of the input/ output range
• Flexible DIN-rail

Introduction

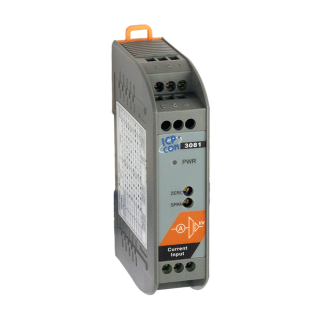

The SG-3081 is a current input to voltage or current output signal conditioning module. It has 1000 Vdc three-way isolation for input, output and power. It also can change the input/output range via internal configuration switches. The SG-3081 has an LED display to show whether the SG-3081 is functioning correctly and has two VRs (Zero, Span) to calibrate accuracy of the input/output range. The bandwidth of the SG-3081 is typically 1 KHz. It is easy to mount the SG-3081 on a standard DIN rail and operate in environments with wide temperature range.

Specifications

 Isolation
 Three-way Isolation 1000 VDC



 Analog Input
 Type 0 ~ 20 mA, 4 ~ 20 mA (Unipolar)
 Accuracy ±0.1% of full range
 Bandwidth 1KHz
 Input Impedance 250 Ω



 Analog Output
 Channels 1
 Range Voltage: 0 ~ 5 VDC, 0 ~ 10 VDC
Current: 0 ~ 20 mA, 4 ~ 20 mA
 Current Load Resistance 0 ~ 500 Ω (Source)



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.61 W (Voltage Output), 2.10 W (Current Output)



 Mechanical
 Dimensions (mm) 25 mm x 114 mm x 70 mm (W x L x H)



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +75 °C (-22 to 176 ℉)
 Humidity 5% ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 SG-3081-G     CR  DC Current Input Signal Conditioner (RoHS) 1
