SIGNAL CONDITIONING

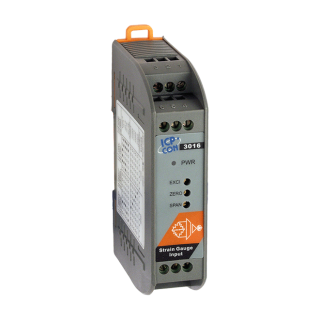

SG-3016-G

• Three-way isolation: 1000 Vdc
• Accuracy: ±0.1% of full range
• Easy to configure input/output range
• Three VRs for calibrating accuracy of the input/ output range
• Flexible DIN-rail

Introduction

The SG-3016 is a voltage input to voltage or current output signal conditioning module. It has 1000 Vdc three-way isolation for input, output and power. It also can change the input/output range via internal configuration switches. The SG-3016 has an LED display to show whether the SG-3016 is functioning correctly and has three VRs (Zero, Span, Exci) to calibrate accuracy of the input/output range . The bandwidth of the SG-3016 is typically 600 Hz. It is easy to mount the SG-3016 on a standard DIN rail and operate in environments with wide temperature range.

Specifications

 Isolation
 Three-way Isolation 1000 VDC



 LED Indicators
 Status Yes, 1 as Power/Communication Indicator



 Analog Input
 Channels 1
 Type ±10 mV, ±20 mV, ±30 mV, ±50 mV, ±100 mV
 Accuracy ±0.1% of full range
 Response Time <600 Hz



 Analog Output
 Channels 1
Range Voltage: 0 ~ 5 VDC, 0 ~ 10 VDC, ±5 VDC, ±10 VDC
Current: 0 ~ 20 mA
 Current Load Resistance 0 ~ 500 Ω (Source)



 Excitation Voltage Output
Channels 1
Range 0 ~ +10 VDC
Max. Load Current +20 mA



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.44 W (Voltage Output), 1.74 W (Current Output)



 Mechanical
 Dimensions (mm) 25 mm x 114 mm x 70 mm (W x L x H)



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 °C ~ +75 °C
 Humidity 5 ~ 95%, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 SG-3016-G     CR  Strain Gauge Input Signal Conditioner (RoHS) 1
