4G-5G IOT GATEWAY

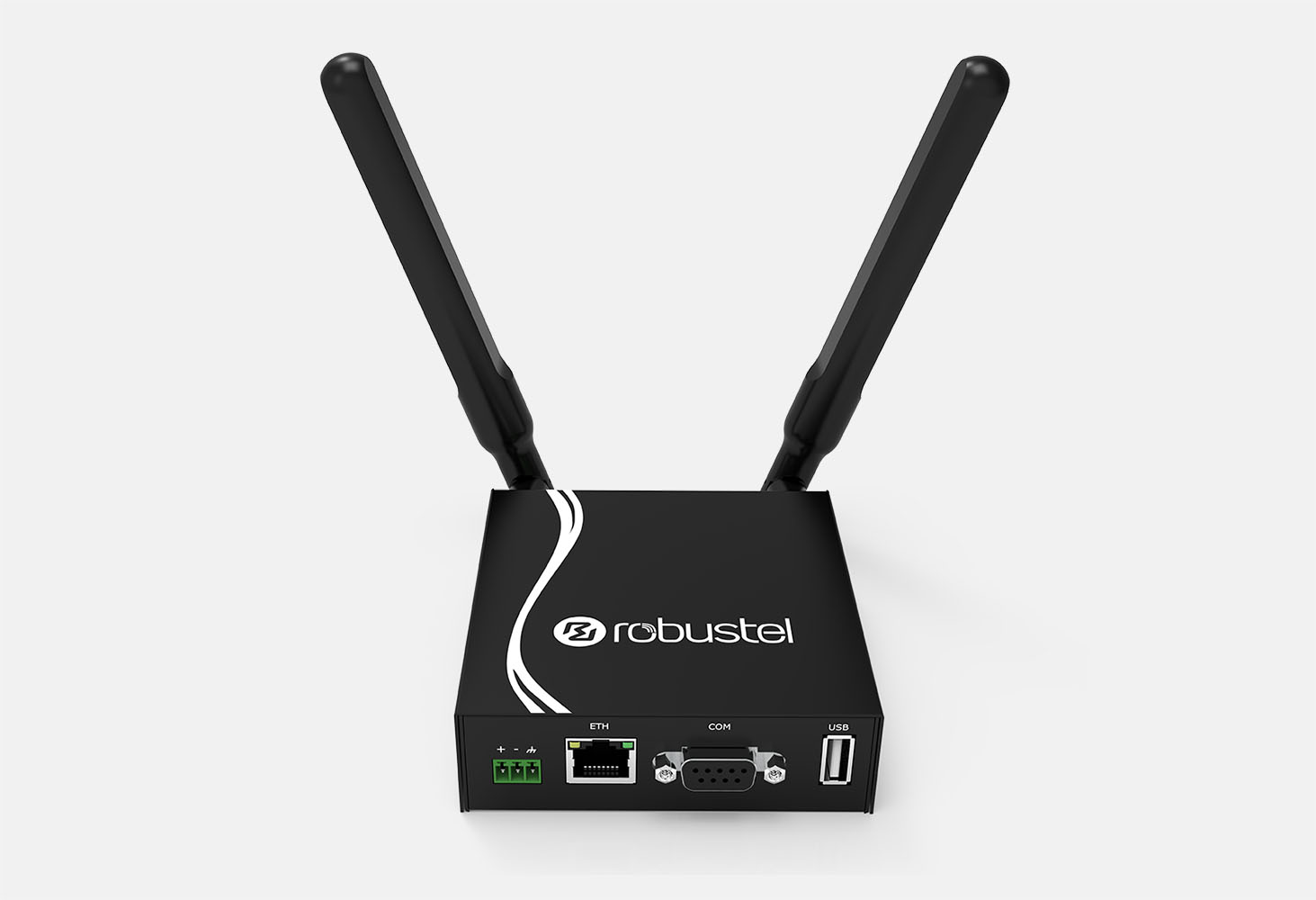

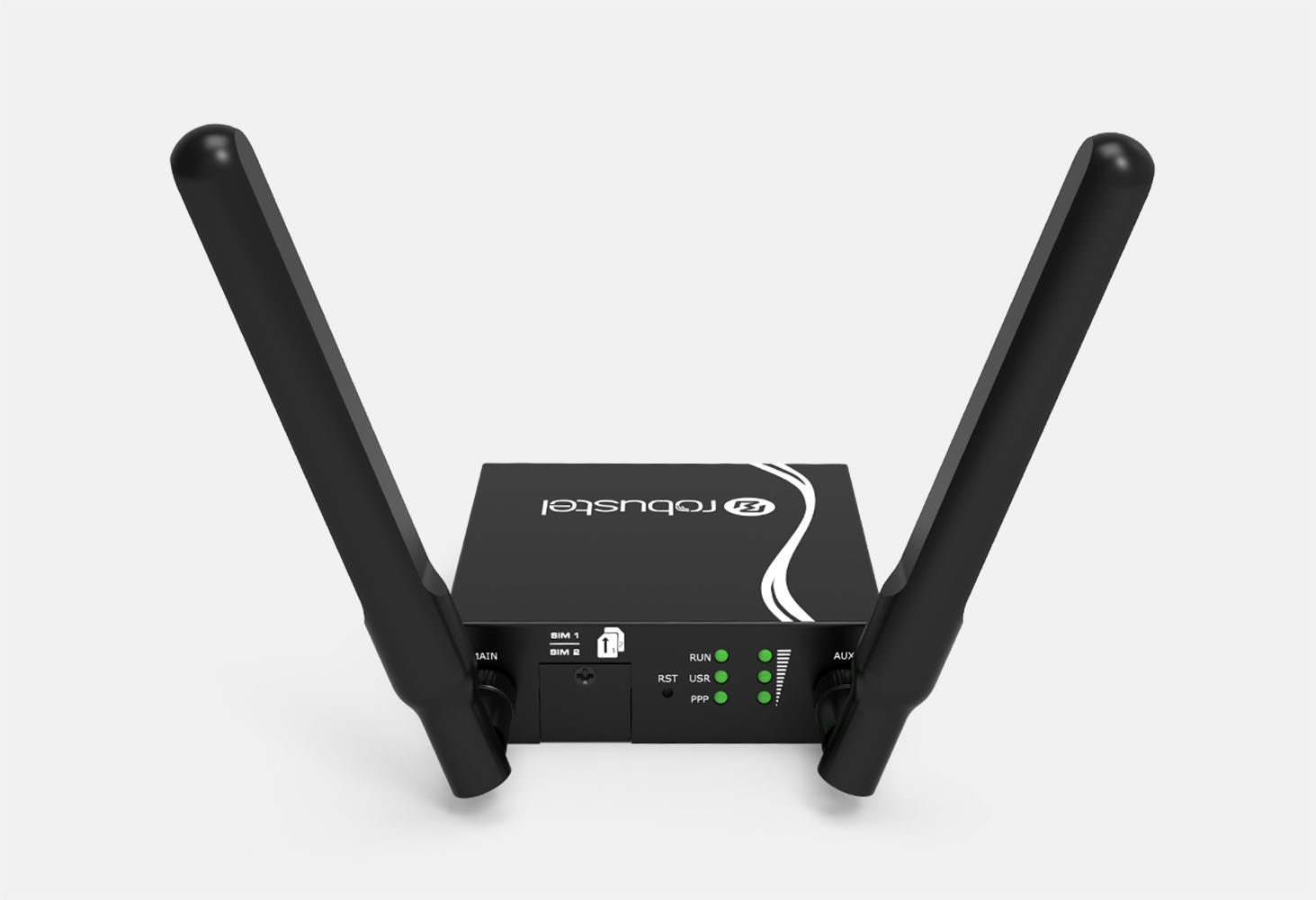

The Robustel Industrial Dual SIM Cellular VPN Router (R3000 Lite) is a rugged cellular
router offering state-of-the-art mobile connectivity for machine to machine (M2M)
applications. R3000 Lite is used extensively in industrial applications such as pipeline
monitoring, water treatment, Gas & Electricity distribution networks and many similar
environments where a hardened product with bulletproof cellular communications is
required. R3000 Lite has extensive overvoltage protection, high EMC immunity and has
a DIN-rail / panel mount form-factor making it ideal for use in any kind of industrial
automation enclosure. The following software features are present on R3000 Lite:
Smart Roaming – intelligent network selection tool for roaming SIMs
RobustVPN – Simple remote access on any SIM using Robustel hosted VPN
RCMS – Free Router Management Platform – very feature rich
Data Guard – Automatically stop data overruns to avoid billshock
RCMS is Robustel’s free router monitoring service that is fully compatible with the R3000
Lite. It allows customer to see a location overview of their routers quickly and simply on
a map. Features such as data usage, signal strength, current network and much more
can then be viewed on a per router basis. Over-the-air updates are supported for
Firmware, router configuration and Apps serving as essential ‘insurance’ if anything was
not quite right during deployment.
Cellular Interface | |
---|---|
Number of ports | 2 (MAIN + AUX) |
Connector | SMA-K |
SIM | 2 Mini SIM (2FF) |
Standards | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE |
Ethernet Interface | |
---|---|
Number of ports | 1 x 10/100 Mbps LAN port |
Magnet isolation protection | 1.5 KV,1 x WAN (10/100/1000 Mbps) |
Serial Interface | |
---|---|
Number of ports | 1 x RS-232 and 1 x RS-485 |
Connector | DB9, female |
ESD protection | ±15 KV |
Baud rate | 300 bps to 230400 bps |
Flow control | RTS/CTS (for RS232) |
Others | |
---|---|
Reset button | 1 x RST |
Expansion | 1 x USB 2.0 host up to 480 Mbps |
LED indicators | 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI |
Built-in | RTC, Watchdog, Timer |
Software | |
---|---|
Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, SSH2, DDNS, etc. |
VPN tunnel | IPsec, OpenVPN, GRE |
Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
Management | Web, CLI, SMS |
Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
App Center | |
---|---|
Apps | L2TP, PPTP, DMVPN , VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS |
SDK | |
---|---|
Supported programming language | C, C++ |
Flash available for SDK | 64 MB |
RAM available for SDK | 64 MB |
Power Supply and Consumption | |
---|---|
Power supply interface | 3.5 mm terminal block |
Input voltage | 9 to 36 VDC |
Power consumption | Idle: 100 mA @ 12 V Data link: 400 mA (peak) @ 12 V |
Physical Characteristics | |
---|---|
Ingress protection | IP30 |
Housing & Weight | Aluminum, 500 g |
Dimension | 125 x 100 x 48 mm |
Installations | Desktop, wall mounting and DIN rail mounting |
Operating temperature | Normal operation: -20 ~ +55 °C,Extended operation: -25 ~ +70 °C |
Storage temperature | -40 ~ +85 °C |
Relative humidity | 5 ~ 95% RH |
PRODUCT SERIES | DESCRIPTION | QTY | INQUIRY |
---|---|---|---|
R3000 Lite | Industrial Dual SIM Cellular VPN Router 1 Eth + 1 RS232 + 1 RS485 + 1 USB Host |
Model | PN | Category | Frequency Bands | Country/ Region |
Certifications |
---|---|---|---|---|---|
R3000-L4L | B025712 | Cat 4 | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8 |
Oceania
South America |
RCM, CRC, SUBTEL, MTC, ENACOM, URSEC |
B025717 | Cat 4 | 4G: LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41 3G: WCDMA: B1/B5/B8 2G: GSM: B3/B8 |
EMEA | CE, UKCA, CB | |
B025718 | Cat 4 | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/
B18/ B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 3G: WCDMA: B1/B2/B4/B5/B6/B8/B19 2G: GSM: B2/B3/B5/B8 |
EMEA | CE, UKCA, CB | |
B025719 | Cat 4 | 4G: LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41 3G: WCDMA: B1/B6/B8/B19 |
Japan | Telec, JATE | |
B025720 | Cat 4 | 4G: LTE FDD: B1/B3/B7/B8/B20/B28A
3G: WCDMA: B1/B8 2G: GSM: B3/B8 |
EMEA | CE, UKCA, CB |
