NT-S1-4G





RS485

« 1 RS485 port

« Support Modbus RTU protocol over RS485

« Can be Modbus master read 32 registers from slaves

 4G communication

« RS485 to GPRS/4G two-way data transmission

« Connect server with MQTT protocol (JSON format) or Http post

« Can connect up to 4 servers (support Static IP address or domain)

 System

« Reliable performance with built-in double watchdog, 24×7 operation

« Network-reconnect and retransmission to ensure data accurately transmit

« Update RTC automatically by NTP

« Configure by mini-USB port, provide windows configure software

Introduction

For acquiring the remote operating parameters and process management, NT-S1-4G IOT Gateway help machine to access internet via GPRS/4G and establish TCP/IP connection with server.NT-S1-4G can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.

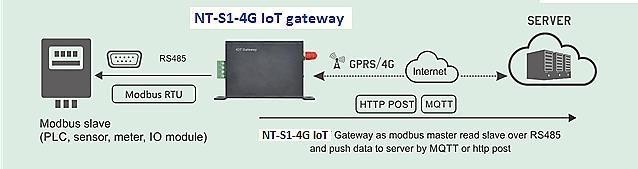

Application

Specifications

Core

MCU

Cortex M3 32-bit ARM

Power

Power supply

9-28V DC (Standard adapter: DC 12V/1.5A)

Consumption

12V input Max. 150mA/Average 50mA

Network

Optional Network

GSM/GPRS (4 band 850/900/1800/1900Mhz)

FDD LTE(4G)

Config port

Mini USB

CH341 chip

Other interface

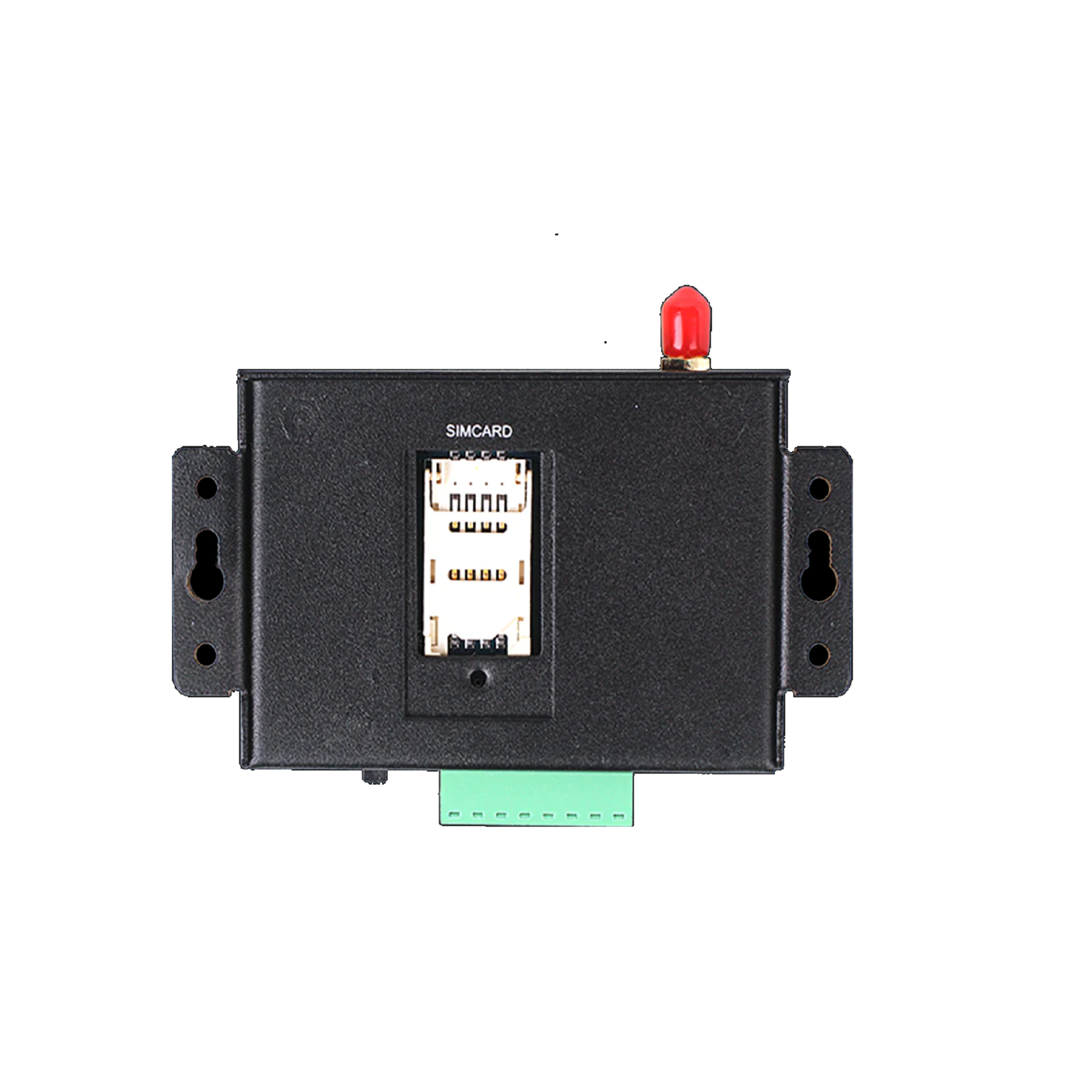

SIM/UIM

Standard user card interface

Antenna

Standard SMA female interface (50Ω)

Working Environment

temperature

-30℃～+70℃

humidity

5～95%(non-condensing)

Physical

Terminals

1×4pin 3.81mm spacing, pluggable

Housing

Providing IP30 protection

Dimension

21×51×65mm

Weight

150G

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 NT-S1-4G

4G IOT Gateway, RS485 To Server using GPRS/4G

          1
