Made in India

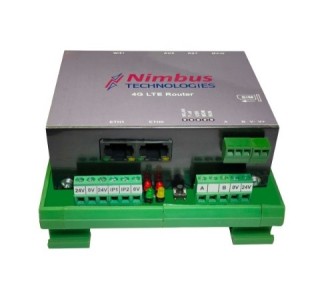

NT-RTU-2022

  • Dual Ethernet and choice of RS232 or RS485 port.
  • Modbus RTU to Modbus TCPGateway built-in.
  • Ethernet, Wi-Fi and 4G internet connection options with auto-failover.
  • Free cloud management platform.
  • Fully programmable Linux environment with excellent SDK Documentation.
  • ‘Smart Reboot’ for enhanced roaming SIM management.
  • Support MQTT Protocol.
  • Full SMS control for diagnosis and recovery from data network problems.
  • Very small footprint for space-constrained applications.
  • Wall-mount and DIN-rail mounting options available.

Introduction

NT-RTU2022 router is a Dual Ethernet port (LAN + WAN) 2G/3G/4G/LTE router with advanced software functions at a very competitive price point. The NT- RTU2022 is a sister product of the other series offering a choice of (3-wire) RS232 or (2-wire) RS485. This means that RS232 and RS485 devices, including Modbus RTU equipment can connect to the internet directly. Ethernet port 0 can be independently configured as WAN, LAN1 or LAN2 and Ethernet port 1 as LAN1 or LAN2.

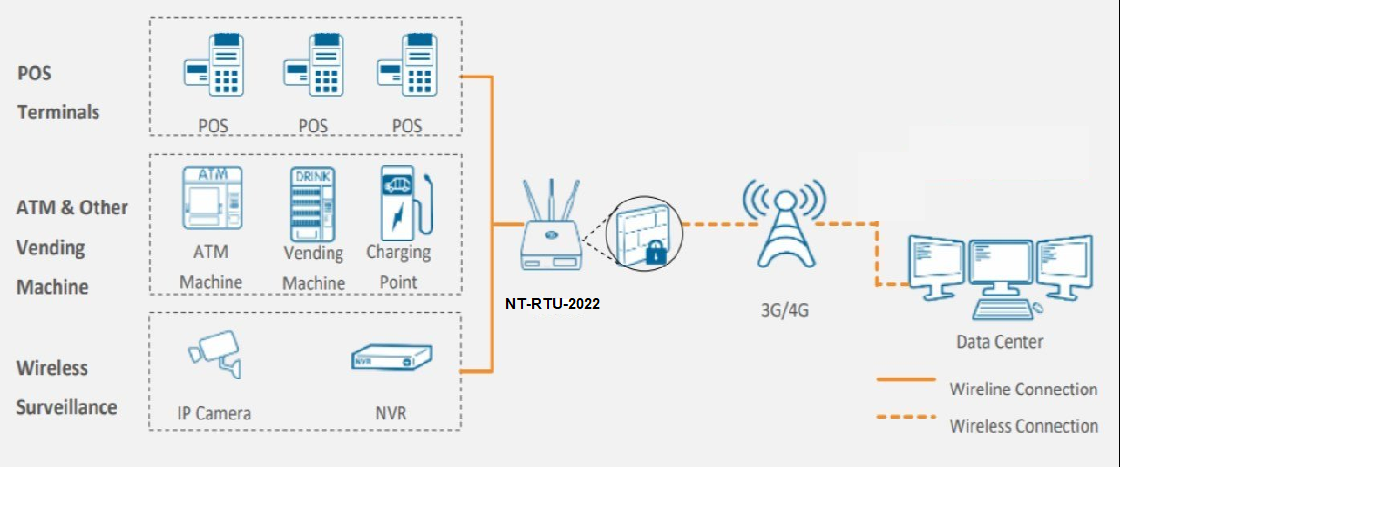

Application

Specifications

        Cellular Interface:
  •       Number of Anteenas-  2 External Antennas (Main+Aux).
  •       Connector - SMA-K
  •       SIM -  1 Mini SIM (2 FF).

       Ethernet Interface:
  •       Number of Port - 2 x 10/100Mbps, 2 x LAN + 1 x WAN.

      Wi-Fi Interface:
  •      Number of Antennas - 2 (1 External Antenna,1 PCB antenna)
  •      Standards 802.11 b/g/n, supports AP and Client modes.
  •      Frequency bands 2.4 GHz
  •      Security WEP, WPA, WPA2
  •      Encryption 64/128 AES, TKIP
  •      Data speed 2 x 2 MIMO, 30

      Serial Interface:
  •      Type 1 x RS232 or 1 x RS485 (Hardware configuration)
  •      Connector 3-pin 3.5 mm female socket
  •      Baud rate 300 bps ~ 115200 b

      Digital Input:
  •      2 Dry & Wet Digital Input available in this modem as in this modem is inbuilt I/O.

      Power Supply and Consumption:
  •      Connector 2-pin 3.5 mm female socket
  •      Input voltage 9 ~ 36 VDC
  •      Power consumption Idle: 150 mA@12 V
  •      Data link: 700 mA (peak) @12 V

      Physical Characteristics:
  •      Ingress protection IP30
  •      Housing & Weight Metal , 250 g UL 94 V-0, 5 VB
  •      Installations 35 mm DIN rail mounting
  •      Operating temperature -20 ~ +60 °C
  •      Storage temperature -40 ~ +75 °C
  •      Relative humidity 5 ~ 90% R

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 NT-RTU-2022

Industrial Cellular VPN Router, 2 Ethernet +2 Digital Input + 1 Sim + 1 RS232/R485.

          1
