Made in India

NT-L Series

System Features

  • Adoptedhighly integrated industrial 32-bit ARM MCU
  • Reliableperformance with built-in double watchdog, 24×7 operation
  • Withsignal filtering mechanisms
  • Network-reconnectand retransmission to ensure data accurately transmit
  • UpdateRTC automatically or manually, clock source support Sms, NTP, NT IO Server
  • Canset multiple timers(second, minute, day, week, month) to upload data
  • Provideconfigure software, visual programming
  • Optionalinside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost
  • OptionalOLED displayer



Introduction

For acquiring the remote operating parameters and process management, NT-L series IOT M2M Gateway help machine to access internet via GPRS/4G/ and establish TCP/IP connection with server.

NT-L Series can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.

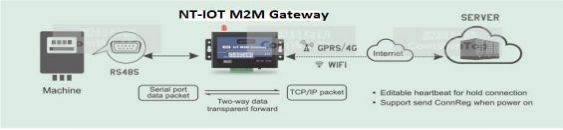

Application

Specifications

Core

MCU

Cortex M3 32-bit ARM

Power

Power supply

9-28V DC (Standard adapter: DC 12V/1.5A)

Consumption

12V input Max. 150mA/Average 50mA

Network

Optional Network

GSM/GPRS (4 band 850/900/1800/1900Mhz) FDD LTE(4G)

Wi-Fi, 802.11 b/g security WEP/WPA/WPA2

Config port

Mini USB

PL2303 chip

Other interface

SIM/UIM

Standard user card interface

Antenna

Standard SMA female interface (50Ω)

Others

Optional Battery

lithium-polymer, 500mAh/3.7V，life:8-20 hours

Working

Environment

temperature

-30℃～+70℃

humidity

5～95%(non-condensing)

Physical

Terminals

1×8pin 3.81mm spacing, pluggable

Housing

Providing IP30 protection

Dimension

88×60×25mm

Weight

150G

Description

PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
NT-L Series  RS485 To Server With DI/DO/AI. 1
