Made in India

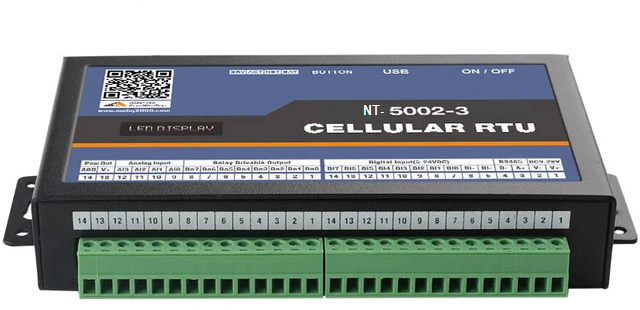

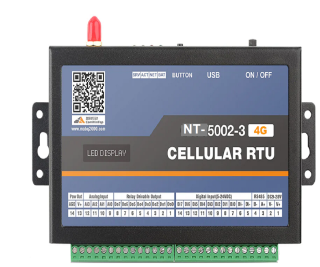

NT-5002-3 RTU

System Features

  • Adoptedhighly integrated industrial 32-bit ARM MCU
  • Reliableperformance with built-in double watchdog, 24 7 operation
  • Withsignal filtering mechanisms
  • Network-reconnectand retransmission to ensure data accurately transmit
  • UpdateRTC automatically or manually, clock source support Sms, NTP, NT IO Server
  • Canset multiple timers(second, minute, day, week, month) to execute actions, g. output, upload data, change setting
  • Event-basedlinkage programming, g. alarm linkage output
  • Provideconfigure software, visual programming, over 100 parameters can be set
  • Insidetemperature optional, can set high or low to alarm
  • Optionalinside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost



Introduction

NT-5002-3 RTU with 8 DI, 8 DO, 4 AI, RS485 standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches. It monitors the industrial system real-time running status and data, as well as constructs the remote device to a proprietary central computer and mobile phones through the GSM/GPRS/3G/4G/Wi-Fi communication network. It efficiently acquires the remote equipment operating parameters and process management, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.

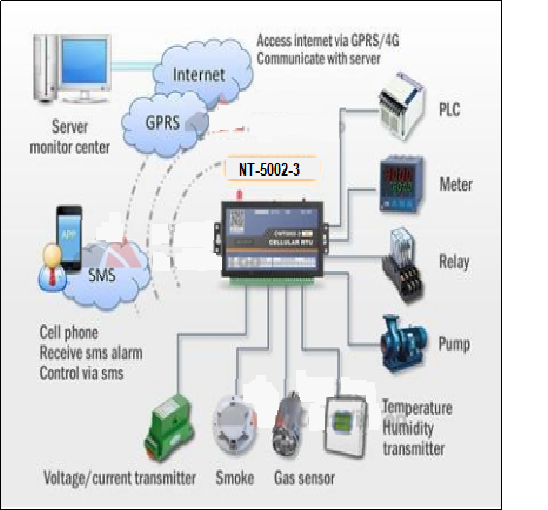

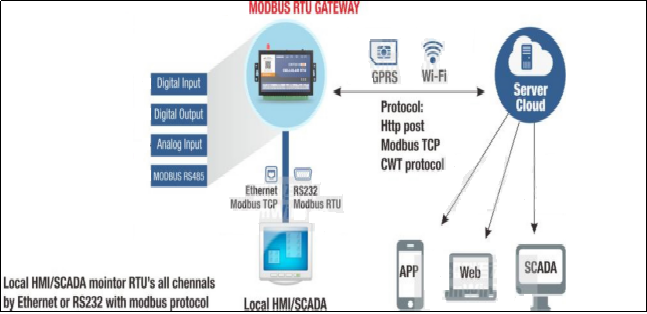

Application



Specifications

Core

MCU

Cortex M3 32-bit ARM

Power

Power supply

9-28V DC (Standard adapter: DC 12V/1.5A)

Consumption

12V input Max. 150mA/Average 50mA

Network

Wireless Network

Either GPRS(or 3G/4G, need simcard) or Wi-Fi(Not need simcard) Default: GSM/GPRS (4 band 850/900/1800/1900Mhz)

Option: WCDMA (3G), FDD LTE(4G)

Option: Wi-Fi, 802.11 b/g security WEP/WPA/WPA2

IO channel

Digital input(DI)

8 channels, Voltage input (DC5-30V, opt coupler isolation, isolation

voltage: 5000V)

Digital output(DO)

8 channels, transistor output

Output drive voltage=power supply DC voltage Drive current  500mA

Analog Input(AI)

4 channels, receive 4-20mA(option: 0-5V), Sampling frequency: 33Hz, 10-bit precision, Dual digital filters for anti-noise

Display

OLED screen

128*32, Size: 30*11.5mm

Series port

USB

1 configuration port

RS485

1 port, baud rate: 1200~115200dps, default 9600,n,8,1 Isolation 15KV ESD protect

Other interface

SIM/UIM

Standard user card interface

Antenna

Standard SMA female interface (50)

Others

Battery

Optional lithium-polymer, 500mAh/3.7V life:8-20 hours

GPS module

Optional

Working

Environment

temperature

-30  +70

humidity

5  95%(non-condensing)

Physical

Terminals

2 14pin 3.81mm spacing, pluggable

Housing

Providing IP30 protection

Dimension

130 80 25mm

Weight

390g

Description

Product Series Description Qty Enquiry
NT-5002-3 RTU 8 DI, 8 DO, 4 AI, RTU with RS485  1 $
