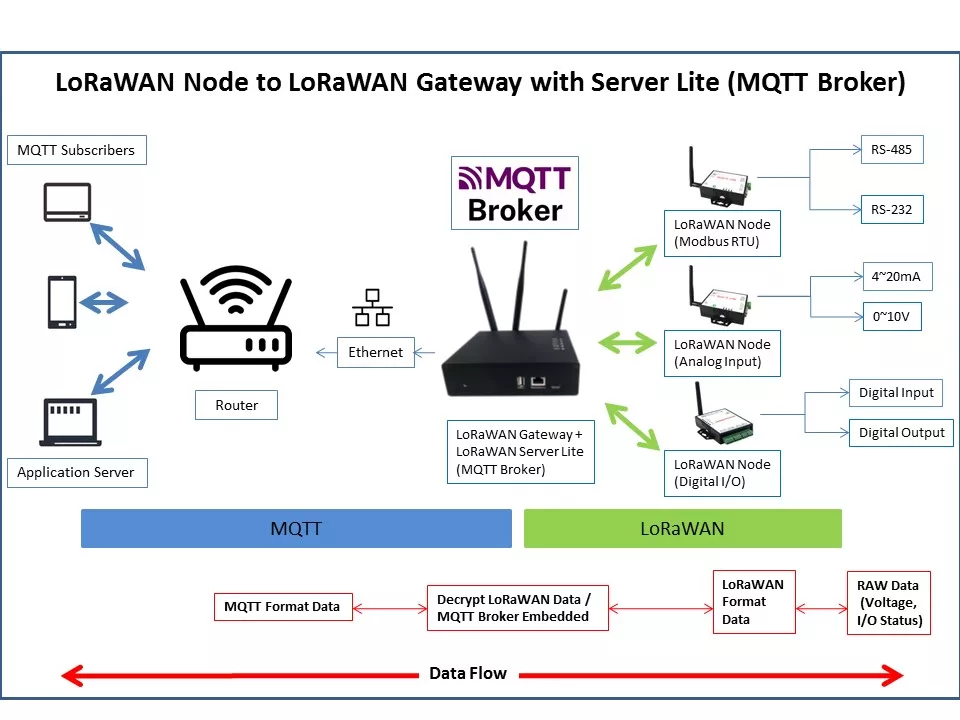

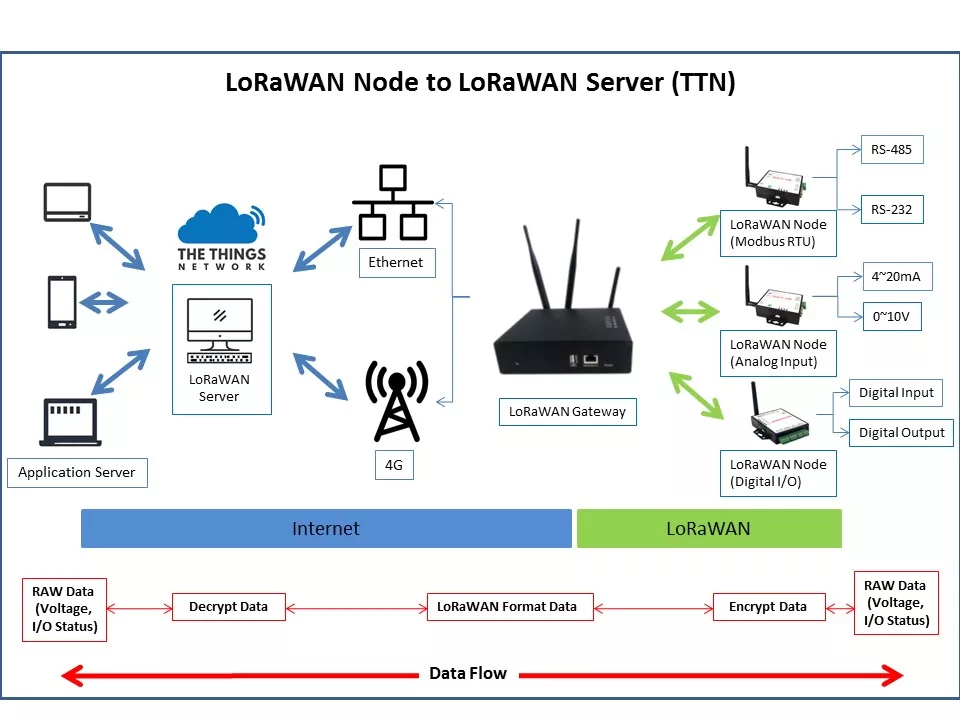

Application

Specifications

•   LoRa :

•   Semtech SX1262
•   ISM band 863 ~ 928MHz
•   Receiver Sensitivity : -139 dBm
•   Transmit Output Power : 22 dBm
•   Deep Sleep Current : 10uA
•   TX current < 140 mA@20 dbm , RX current < 10 mA
•   Antenna : SMA Type , 2 dBi , changeable
•   Distance : Up To 1500 Meters in free space
•   Data Rate : 0.244 ~ 18.2K bps (LoRa)
•   Application mode : Star

•   Serial Port

•   Port : RS-232/422/485 * 1 port ( auto Detect )
•   RS-232 : Rx , Tx , GND ( DB9 female )
•   RS-422 : Tx+ , Tx-, Rx+ , Rx- (Surge Protect )
•   RS-485 : Data+ , Data- (Surge Protect)
•   Built –in RS-422/RS-485 Terminal Resistor
•   Speed : 9600 bps〜2K bps
•   Parity : None , Odd , Even
•   Data Bit : 7, 8 / Stop Bit : 1 , 2
•   Setup Tool : Windows Utility
•   Power : DC 9 ~ 24V / 150ma @ 9V , 60ma @ 24V
•   Led Lamp : SYS (green) , Rx(red) , Tx(green), Paired(Red)
•   Environment : Operating Temperature: -10℃〜70℃
•   Storage Temperature : -20℃〜80℃
•   Dimensions : 100 * 90 * 25 mm ( W * D * H )
•   Weight : 150 gm ( not include power ).

Description

PRODUCT SERIES	DESCRIPTION	QTY	INQUIRY

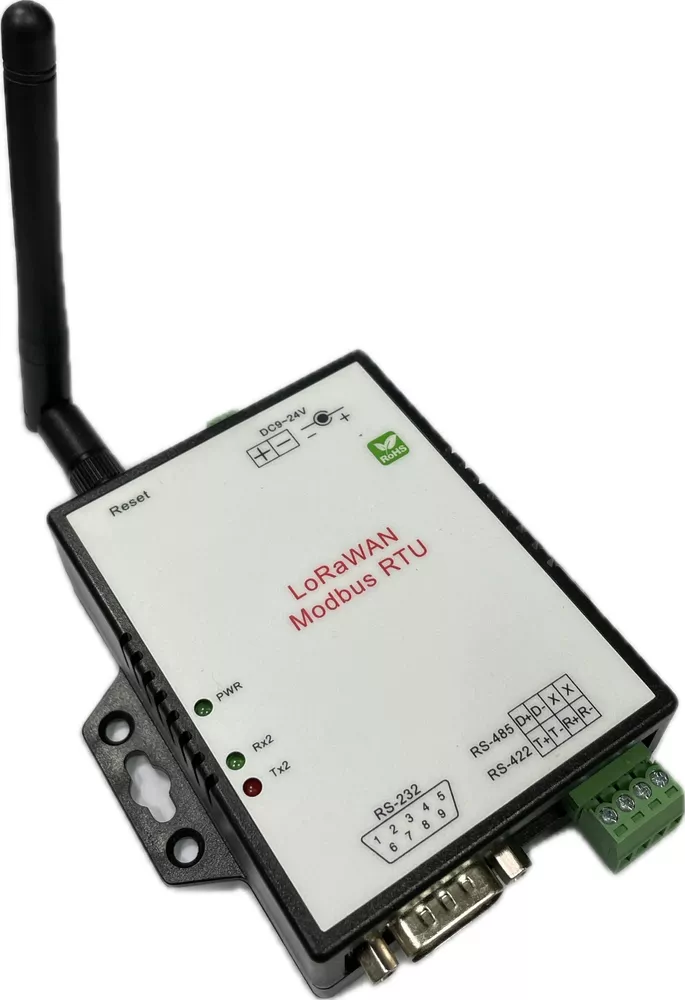

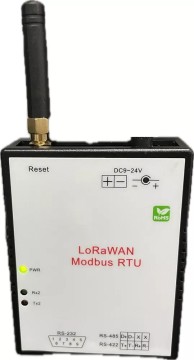

NT-201-S-WAN	RS232/422/485 To LoRaWAN	1
