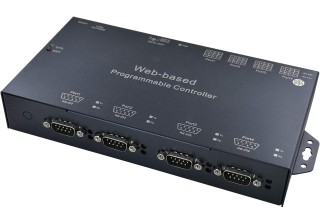

Modbus TCP To Modbus RTU(ASCII) 4 Port

  • TCP to RTU support 8 simultaneous TCP Master, 32 simultaneous requests per Master.
  • RTU to TCP support 8 TCP Slaves on each port.
  • Software support
  • TCP to RTU Slaves, RTU to TCP Slaves
  • TCP to ASCII Slaves, ASCII to TCP Slaves
  • Web Browser configuration
  • Easy installation Windows utility
  • On line F/W upgrade
  • 3000VDC Isolation

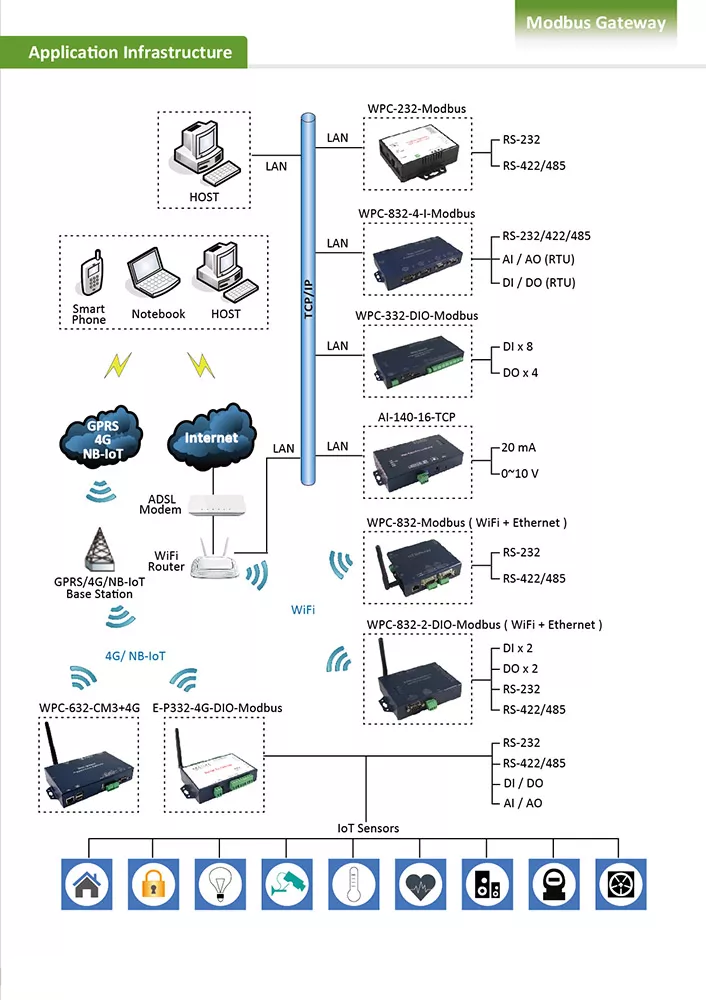

Application

Specifications

  •   System
  •   CPU : MT7688AN MIPS CPU , 580 MHz
  •   RAM : 128M Bytes DDR2 RAM
  •   ROM : 32M Bytes Flash ROM
  •   OS :  Open Wrt Linux
  •
  •   Ethernet *1
  •   Port Type : RJ-45 Connector
  •   Speed : 10 /100 M bps  ( Auto Detecting )
  •   Protocol : ARP , IP , ICMP , UDP , TCP , HTTP , DHCP
  •   Protocol ：DNS , NTP
  •   Mode : TCP Server / TCP Client / UDP
  •   Setup : HTTP Browser Setup (IE & Netscape) ,  Console
  •   Security : Setup Password
  •   Protection : Built-in 1.5KV Magnetic Isolation
  •
  •   WiFi port *1
  •   2.4G WiFi IEEE 802.11 b/g/n
  •   Support  AP / Station
  •
  •   Serial Ports *4
  •   Port : RS – 232/422/485 * 2 Port   ( RS-232 - RX/TX only )
  •   Port : RS - 422 / 485  ( Surge Protect )
  •   Speed：300 bps ~ 230.4 K bps
  •   Parity：None , Odd , Even
  •   Data Bit：5 , 6 , 7 , 8
  •   Stop Bit : 1 , 2
  •   RS-232 Pins : Rx , Tx , GND
  •   RS-422 : Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )
  •   RS-485 : Data+ , Data- ( Surge Protect )
  •   15KV ESD for all signals
  •   3000V DC Isolation (option)
  •   Watch Dog Function
  •   Power : DC 9~32 V , 1000 mA  1000mA@12V, support DC Jack & Terminal Input
  •   Led Lamp :  SYS (PWR) , LAN , RX , TX
  •   Environment : Operating Temperature: -20℃〜70
  •   Storage Temperature : -25℃〜80℃
  •   Dimensions: 198 * 110 * 34 mm ( W * D * H ), W+16mm x2 for din rail extension.
  •   Weight :  450 gm
  •   RoHS : Compliant with RoHS
  •   Regulatory Approvals : EMC :  FCC Class A, CE Class A
  •   WARRANTY :  1 year



Description

PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
       NT-832-4-I-Modbus   Modbus TCP To Modbus RTU/ASCII (4 Port)        1
