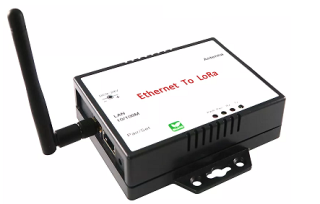

Modbus TCP To Lora

Introduction

 It work with Modbus TCP protocol, not work with LoRaWAN.
 The devices to be used in a loop group for data transmission. It is like an RS-485 in semi-duplex but wireless.
 In the loop group just pick one LoRa device to work as a MASTER and the other LoRa devices are SLAVE.
 These devices have general LoRa features such as long range, low packet size and loose in data collecting.
 We recommend the packet not over 100 bytes per second and the condition could accept data lost.
 Generally it work good for environment data collection to get long trend. It’s not suitable for instant On/Off work.
 Distance of LoRa transmission is long range subject to antenna to be Line-Of-Sight from Master to Slaves.

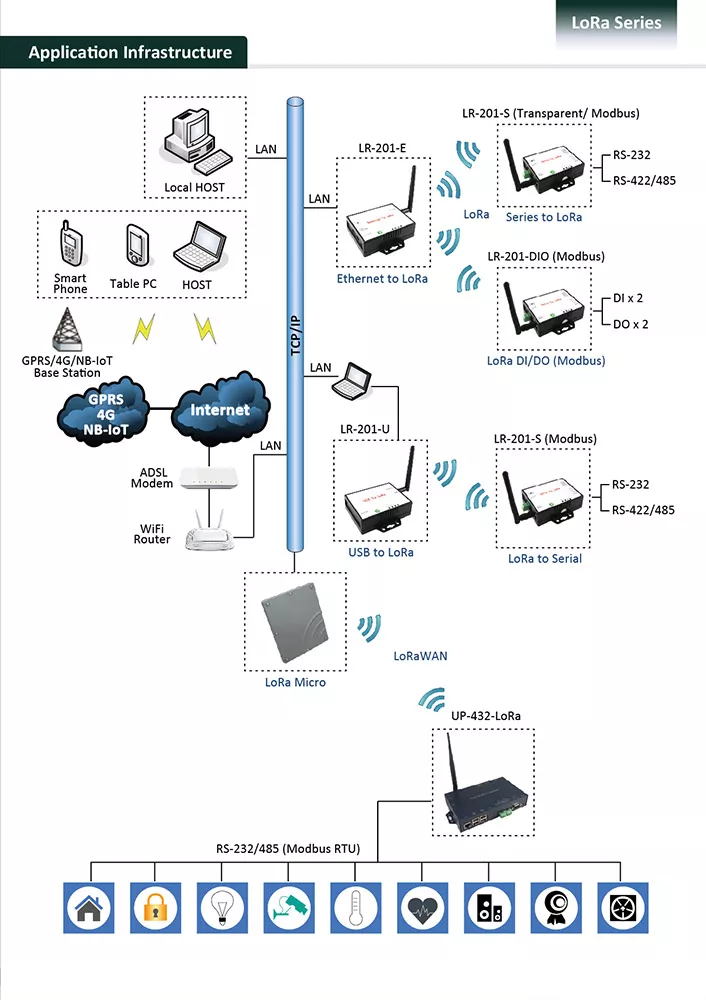

Application

Specifications

  •   LoRa :
  •   Semtech SX1272
  •   ISM band 862 ~ 936MHz
  •   Receiver Sensitivity : -137 dBm
  •   Transmit Output Power : 20 dBm
  •   Sleep Current : 3uA (at power down state)
  •   TX current < 140 mA@20 dbm , RX current < 10 mA
  •   Security processor ( 128/192/256 bits AES )
  •   Packet engine up to 256 bytes with CRC
  •   Antenna : SMA Type , 2 dBi , changeable
  •   Distance : Up To 1500~7500 Meters in free space
  •   Data Rate : 0.244 ~ 18.2K bps (LoRa) / 300 K bps (FSK)
  •   Application mode : Star



  •   Ethernet Port
  •   Port Type：RJ-45 Connector
  •   Speed：10 / 100 Mbps ( Auto Detect )
  •   Protocol：ARP , IP , ICMP , UDP , TCP , HTTP , DHCP
  •   Mode：TCP Server / TCP Client / UDP / Virtual Com / Pairing
  •   Setup：HTTP Browser Setup ( IE )
  •   Security：Login Password
  •   Protection：Built-in 1.5KV Magnetic Isolation
  •   Modbus TCP To RTU Slave & Modbus TCP To ASCII Slave Mode
  •   Modbus RTU To TCP Slave & Modbus ASCII To TCP Slave Mode
  •   Setup Tool : Windows Utility
  •   Power : DC 9 ~ 24V / 150mA@ 9V , 60mA@ 24V
  •   Led Lamp : SYS (green) , Rx(red) , Tx(green)
  •   Environment: Operating Temperature: -10℃〜70℃
  •   Storage Temperature: -20℃〜80℃
  •   Dimensions : 100 * 90 * 25 mm ( W * D * H )
  •   Weight : 150 gm ( not include power )

Description

PRODUCT SERIES     DESCRIPTION  QTY   INQUIRY
           NT-201-E-Modbus

  Modbus TCP Ethernet To LoRa

               1
