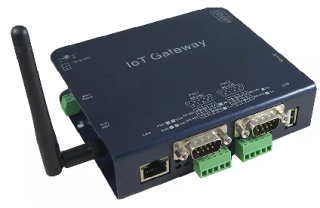

Modbus TCP TO Modbus RTU/ASCII Gateway (Ethernet+Wi-Fi)

  • TCP to RTU support 8 simultaneous TCP Master, 32 simultaneous requests per Master.
  • RTU to TCP support 8 TCP Slaves on each port.
  • Software support :
  • TCP to RTU Slaves, RTU to TCP Slaves
  • TCP to ASCII Slaves, ASCII to TCP Slaves
  • Web Browser configuration
  • Easy installation Windows utility
  • On line F/W upgrade

Specifications

System

  •   WPC-832-Modbus : 2 ports Modbus TCP To RTU/ASCII Gateway
  •   CPU : MT7688AN MIPS CPU , 580 MHz
  •   RAM : 128M Bytes DDR2 RAM
  •   ROM : 32M Bytes Flash ROM
  •   OS :  Open Wrt Linux OS



Ethernet *1

  •   Port Type : RJ-45 Connector
  •   Speed : 10 /100 M bps  ( Auto Detecting )
  •   Protocol : ARP , IP , ICMP , UDP , TCP , HTTP , DHCP
  •   Protocol ：DNS , NTP
  •   Mode : TCP Server / TCP Client / UDP
  •   Setup : HTTP Browser Setup (IE & Netscape) ,  Console
  •   Security : Setup Password
  •   Protection : Built-in 1.5KV Magnetic Isolation



WiFi  *1

  •   Standard : 802.11b/g/n
  •   Data Rate :11/54/72.2 Mbps @ 20Mhz Band Width
  •   Modulation : DSSS; OFDM
  •   Frequency : 2.4GHz
  •   Tx Power 11b : Max. 22dBm
  •   Tx Power 11g/n : Max. 19dBm
  •   Rx Sensitivity : -76dBm@54Mbps; -89.5dBm@11Mbps
  •   Tx Rate : Max. 54Mbps with auto fallback
  •   Tx Distance : Up to 100m
  •   Security : WEP 64-bit / 128-bit data encryption, WPA / WPA2
  •   Antenna : 2 dBi ; RP-SMA connector
  •   Network Mode: Infrastructure; Soft AP (for Setup)
  •   Mode : TCP Server/ TCP Client/ UDP/ Virtual Com/ Pairing
  •   Setup : HTTP Browser Setup (IE, Chrome, Firefox)
  •   Security : Login Password



Serial Ports *2

  •   Port : RS – 232/422/485 * 2 Port   ( RS-232 - RX/TX only )
  •   Port : RS - 422 / 485  ( Surge Protect )
  •   Speed：300 bps ~ 230.4 K bps
  •   Parity：None , Odd , Even
  •   Data Bit：5 , 6 , 7 , 8
  •   Stop Bit : 1 , 2
  •   RS-232 Pins : Rx , Tx , GND
  •   RS-422 : Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )
  •   RS-485 : Data+ , Data- ( Surge Protect )
  •   15KV ESD for all signals



Other Features(**for OpenWrt programming only)

  •   Led Lamp : SYS, PWR, PoE(option), WiFi, RX, TX, LAN
  •   RTC : Real Time Clock
  •   Buzzer
  •   Watch Dog Function
  •   **Digital Input / Output : GPIO * 8 Pins
  •   **I2C Interface * 1 port
  •   **SD Interface : micro SD card ( for 16G storage )
  •   **USB ( Host * 1 port ) : for Memory Storage



Power

  •   DC 9~32V, 1000mA@12V, support DC Jack & Terminal Input
  •   PoE : Power over Ethernet 802.3 af (option )



Mechanical and Environment

  •   Operating Temperature : -20℃〜70℃
  •   Storage Temperature: -25℃〜80℃
  •   Dimensions : 180 * 110 * 30 mm ( W * D * H )
  •   Weight : 450 ± 5gm
  •   Housing: metal.



Warranty

  •   Warranty period : 1 year.



Software

  •   Software  : TCP TO RTU Slave, RTU Master TO TCP Slave , TCP TO ASCII Slave, ASCII Master TO TCP Slave
  •   Utility  :  Built-in Web server Setup, Easy Operation

Description

PRODUCT SERIES     DESCRIPTION  QTY   INQUIRY
           NT-832-2-Modbus

  Modbus TCP to RTU/ASCII-2 Port (Ethernet+Wi-Fi)

            1
