Data Acquisition

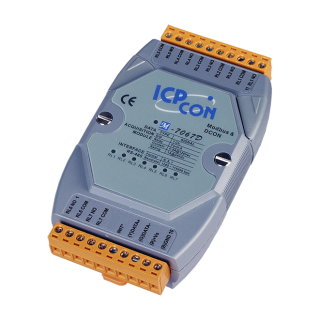

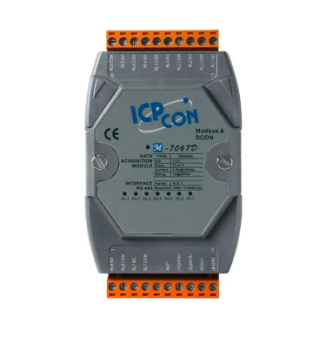

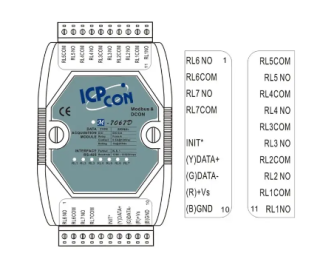

M-7067D-G

  • 7 Signal Relay Outputs
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog

Introduction

The M-7061/M-7061D provides 12 power relay output channels and The M-7067/M-7067D provides 7 signal relay output channels. The M-7061D provides 12 LED indicators and The M-7067D provides 7 LED indicators for channel status monitoring. The M-7061(D)/M-7067(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values.

4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments. The M-7067(D) is the ideal solution for small signal-switching applications, while The M-7061(D) is the perfect solution for high-power applications.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Display
 Type I/O LED Indicator



 Isolation
 Intra-module Isolation 1500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±2 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point



 LED Indicators
 Status 1 x Power and Communication
7 x Digital Input/Relay Output



 Relay Output
 Channels 7 (Form A)
 Type Singal Relay
 Contact Material Gold overlay silver palladium
 Contact Rating 0.5 A @ 120 VAC
1 A @ 24 VDC
 Operate Time 5 ms
 Release Time 2 ms
 Electrical Endurance 1 x 10^5 ops.
 Mechanical Endurance 5 x 10^6 ops.
 Power on Value Programmable
 Safe Value Programmable



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.9 W



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-7067D-G     CR  7-ch Signal Relay Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
