Data Acquisition

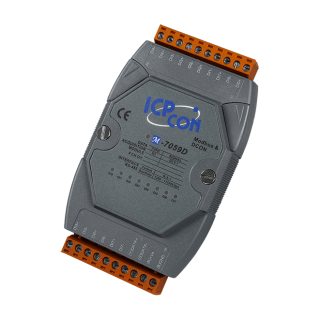

M-7059D-G

  • Supports AC/DC Digital Input
  • 8 Differential Digital Inputs
  • All Channels Can be Used as 16-bit Counters
  • Channel-to-Channel Isolation
  • Built-in Dual Watchdog

Introduction

The M-7059/M-7059D offers 8 differential channels for AC/DC digital input, each of which features channel-to-channel photocoupler isolation. All digital input channels are also able to be used as 16-bit counters. The M-7059D module has 8 LED indicators for channel status monitoring. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. The M-7059(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7059(D).

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Display
 Type I/O LED Indicator



 Isolation
 Intra-module Isolation 3750 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point



 LED Indicators
 Status 1 x Power and Communication



 Digital Input/Counter
 Channels 8
 Type Wet Contact
 Sink/Source (NPN/PNP) Sink/Source
 ON Voltage Level 10 ~ 80 VAC
±15 ~ ±80 VDC
 OFF Voltage Level 3 VAC Max.
±3 VDC Max.
 Max. Counts 65535 (16-bit)
 Frequency 100 Hz
 Min. Pulse Width 5 ms
 Input Impedance 10 kΩ
 Overvoltage Protection 100 VAC/VDC Max.
 Channel-to-Channel Isolation ±2 kV



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.0 W



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-7059D-G     CR  8-ch Isolated (Wet, 10~80 VAC/±15~±80 VDC) DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
