Industrial Gateway

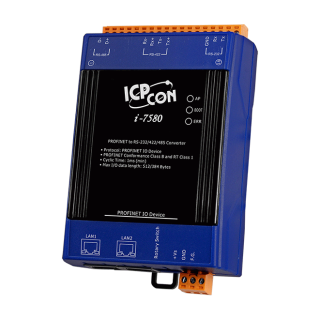

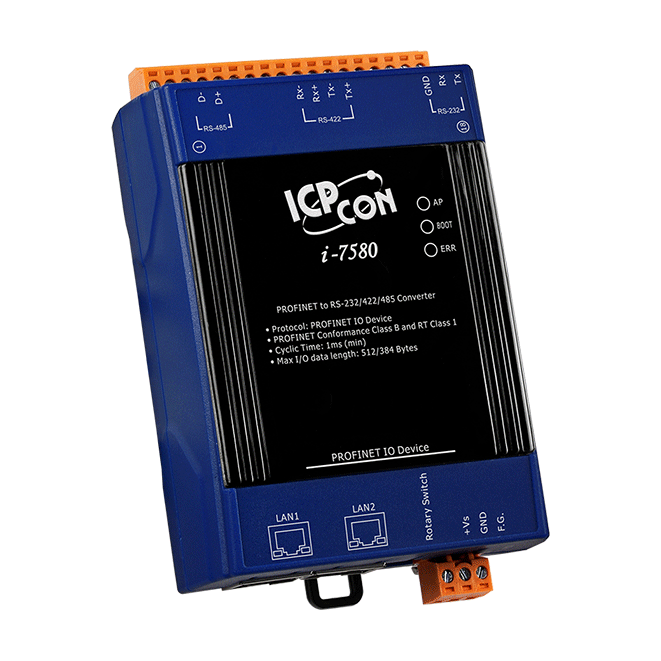

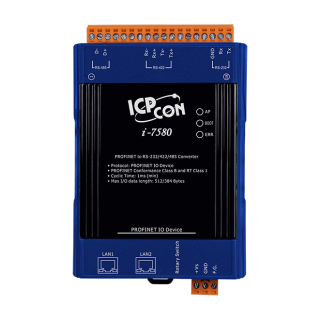

I-7580

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • Max length of input/output data is 512/384 Bytes
  • 4 kV Contact ESD protection for any terminal

Introduction

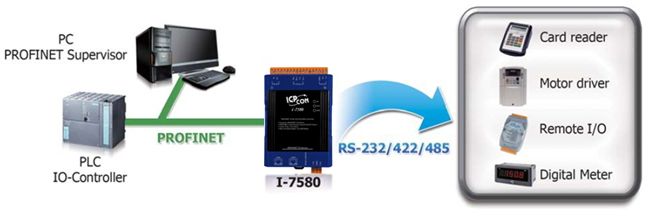

The I-7580 is a PROFINET IO device with RT functionality that supports RS-232, RS-422 and RS-485 serial interfaces. Users can choose one of these serial communication interfaces to apply. It is easy to allow users to take almost serial device to a PROFINET network including serial remote I/O devices, sensors, actuators, HMI, barcode readers and RFID, etc.

Application

  • Industrial Automation

  • Factory Automation

  • Process Automation

  • Etc…

Specifications

 CPU Module
 CPU 32-bit CPU Core
 EEPROM 8 KB
 Flash 4 MB
 SRAM 32 MB
 Watchdog Timer CPU built-in



 LED indicators
 Status AP LED, BOOT LED, ERR LED



 COM Ports
 Ports RS-232/RS-422/RS-485 (can't be used simultaneously)
3-pin screwed terminal block (RxD, TxD, GND)
4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)
2-pin screwed terminal block (DATA+, DATA-)
 Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800
 Parity None, Even, Odd
 Data Bit 7, 8
 Stop Bit 1



 Ethaernet
Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging



 PROFINET
 Conformance Classes Class B
 Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
 Cycle Time 1 ms (min)
 Protocol PROFINET IO Device



 Power
Consumption 3.4 W



 Mechanical
 Dimensions (mm) 42 x 76 x 119 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
  I-7580     CR  PROFINET to RS-232/422/485 Converter (RoHS) 1
