Industrial Gateway

I-7567

  • Support HART Short/Long frame
  • Support HART Burst mode
  • Support point-to-point or multi-drop HART mode
  • Support connecting up to 15 HART slave devices
  • Allow two HART masters
  • Provide utility tool for module configuration and HART communication
  • No external power supply (powered by USB)
  • Support firmware update via USB
  • 4KV ESD Protection
  • Selectable 250Ω load resistor
  • Support HART OPC Server provided by HART COMMUNICATION FOUDATION

Introduction

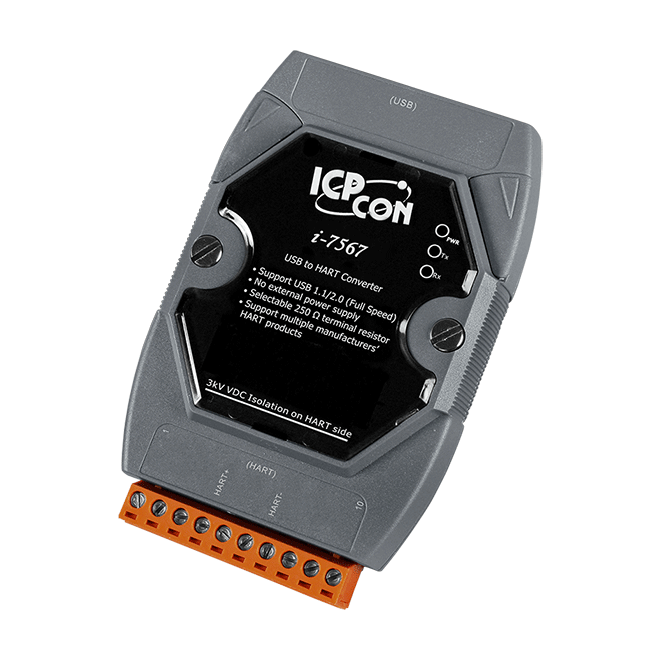

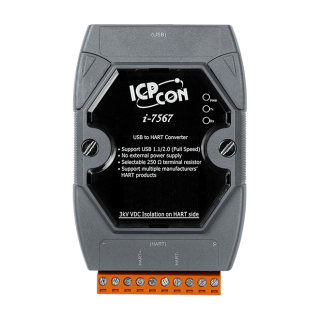

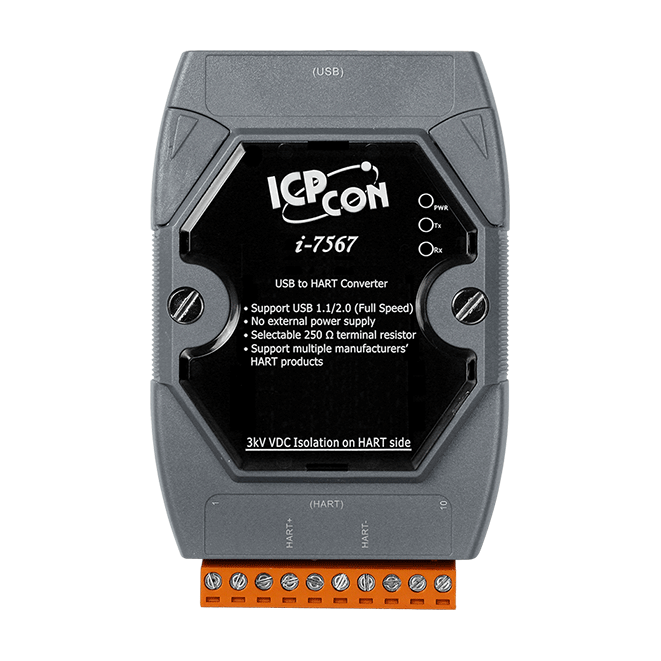

I-7567 is a USB to HART converter and can be used as a HART master with HC_Tool utility or a HART slave with HDS utility.

(1) I-7567 as HART Master :

It allows users to access the HART slave via virtual COM-port of PC. When connecting I-7567 to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7567. In addition, by using the I-7567 utility, users can configure module and test HART communication easily.

(2) I-7567 as HART Slave :

HART Device Simulator (called HDS) is the HART device simulation software developed by ICP DAS. It can be used to simulate multi HART slave devices simultaneously to exchange data with HART master device by using ICP DAS HART converter (like: I-7567 / I-7570 / I-7547) connected to any COM port (USB / 232 / 485 / Ethernet). By this way, users can develop or verify the HART master program without any HART slave device.

HDS (HART Device Simulator)

Application

    •        Current Measuring
    •        Petrochemical Industry Application
    •        Environment Monitoring
    •        Tunnel Monitoring
    •        Monitor system
    •        Building Monitoring

Specifications

 Software
 Driver Windows 2000 / XP / Vista / 7 (32/64 bit)



 LED Indicators
 Status PWR : Power Indicator
Tx : Received Data from USB Indicator
Rx : Received Data from HART Indicato



 USB
 Specification USB 1.1 and 2.0 standard
 Connector USB Type B
 Virtual COM Parameter 1200 bps, O(odd parity), 8(data bit), 1(stop bit)



 HART
 Ports 1
 Terminal Resistor Selectable 250 Ω terminal resistor
 Isolation 3000 VDC



 Power
 Input Range By USB Interface
 Consumption Maximum : 1.5W



 Mechanical
 Dimensions (mm) 108 x 72 x 35 (H x W x D)
 Installation DIN-Rail or Wall Mounting



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +70 °C (-22 to 176 ℉)
 Humidity 5% ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 I-7567     CR  USB To HART Converter (Gray Cover) (RoHS) 1
