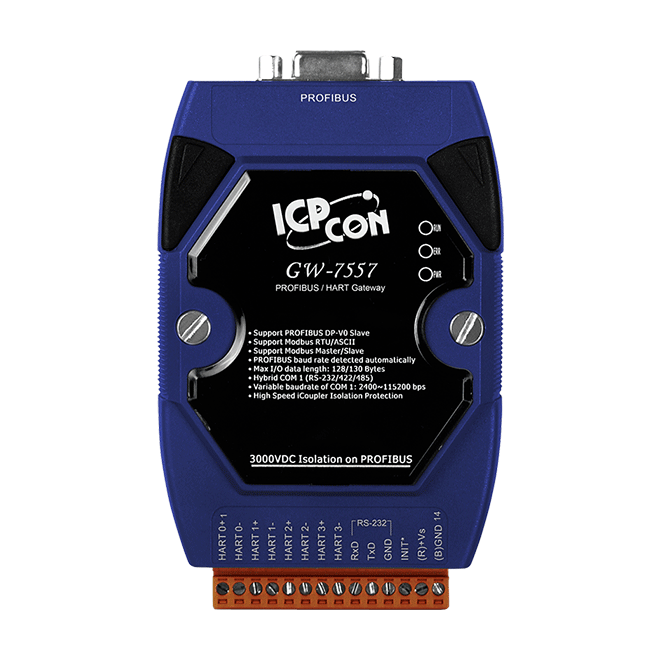

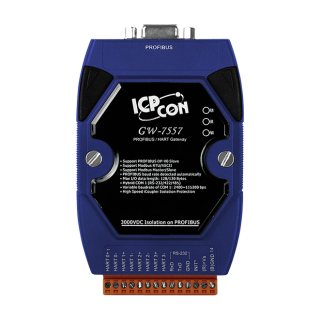

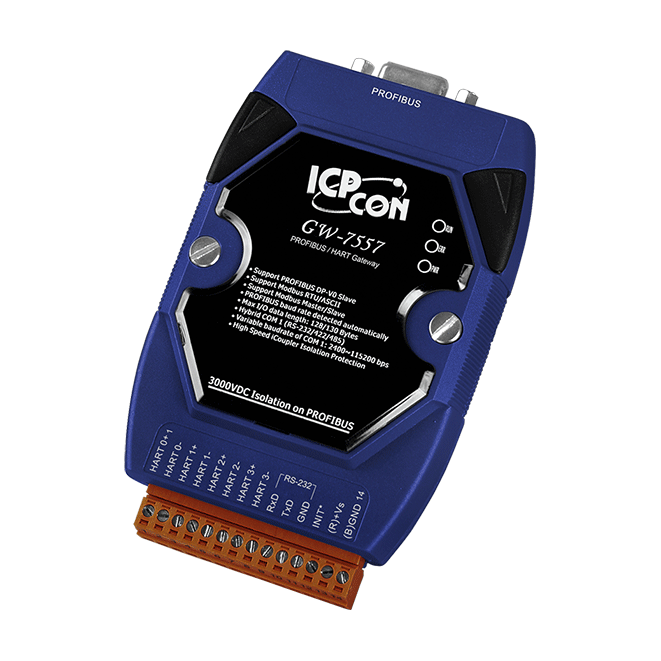

Industrial Gateway

GW-7557-B

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 240 Bytes
  • Max Output Data Length : 240 Bytes
  • Address Setting : 0~126 set by DIP switch or EEPROM
  • Supports HART Mode : point-to-point / multi-drop
  • Support HART Master : Allow two HART Masters
  • Support HART Channel : 4 channels
  • Support HART Frame : Short/Long frame
  • Support HART modules : Connecting up to 15 HART modules
  • Support HART Burst mode : YES
  • Network Isolation Protection : 2500 Vrms High Speed iCoupler
  • DC Isolation Protection : 3000 VDC on PROFIBUS side

Introduction

The GW-7557 Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the HART slave devices. These HART slave devices may be a transmitter, an actuator, a current output device and so forth. In addition, we also provide the utility software for users to configure the GW-7557. By using this module, users can put their HART slave devices into PROFIBUS network very easily.

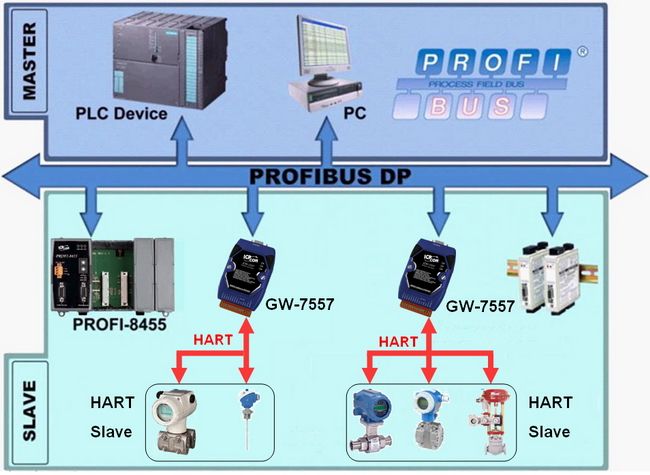

Application

Applications

  • Industrial Automation

  • Factory Automation

  • Process Automation

  • Etc…

Specifications

 CPU Module
 CPU 80186, 80 MHz or compatible
 EEPROM 16 KB
 Flash 512 KB
 SRAM 512 KB
 Watchdog Timer Watchdog IC
CPU built-in



 LED Indicators
 Status PWR LED, RUN LED, ERR LED



 COM Ports
 Ports RS-232
3-pin screwed terminal block (RxD, TxD, GND)
 Baud Rate Up to 115200
 Parity None, Even, Odd
 Data Bit 7, 8
 Stop Bit 1, 2



 HART
 Ports 4 channels



 PROFIBUS
 Controller Profichip VPC3+C
 Transceiver ADI ADM2486
 Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
 Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
 Protocol DP-V0



 Power
 Consumption 2.0 W



 Mechanical
 Dimensions (mm) 72 x 33 x 119 (W x L x H)

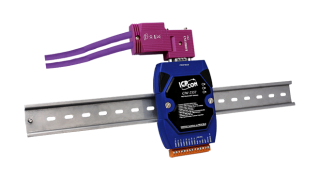

 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +85 °C
 Humidity 5 ~ 95% RH, non-condensing



Accessories

CNT-PROFI
  CNT-PROFI

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 GW-7557-B     CR  PROFIBUS to HART Gateway (Plastic Case) (RoHS) 1
