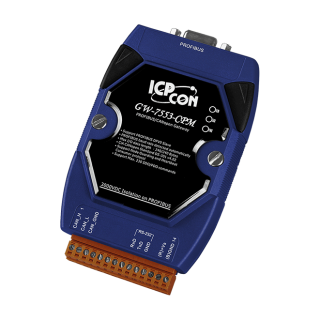

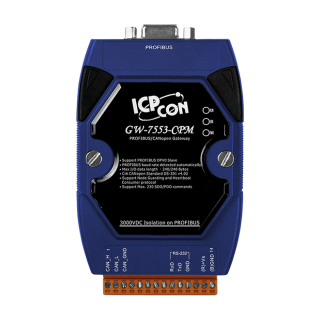

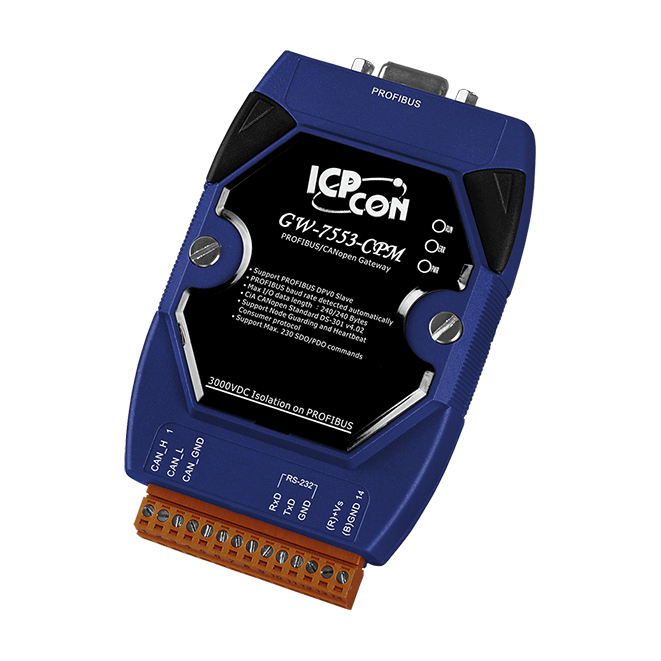

Industrial Gateway

GW-7553-CPM

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 240 Bytes
  • Max Output Data Length : 240 Bytes
  • PROFIBUS Address Setting : 0~126 set by DIP switch
  • Supports CANopen Standard : CiA CANopen Standard DS-301 v4.02
  • Supports CANopen Consumer protocol : Node Guarding and Heartbeat Consumer protocol
  • Number of CANopen Commands : Support 110 CANopen SDO/PDO commands
  • Network Isolation Protection : 2500 Vrms High Speed iCoupler
  • DC Isolation Protection : 3000VDC on PROFIBUS side

Introduction

The GW-7553-CPM Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the CANopen slave devices. We also provide the utility software for users to configure the GW-7553-CPM. By using this module, users can put their CANopen devices into PROFIBUS network very easily.

Application

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Specifications

 CPU Module
 CPU 80186, 80 MHz or compatible
 EEPROM 16 KB
 Flash 512 KB
 SRAM 512 KB
 Watchdog Timer Watchdog IC
CPU built-in



 LED Indicators
 Status PWR LED, RUN LED, ERR LED



 COM Ports
 Ports RS-232 (For updating firmware and configuration)
3-pin screwed terminal block (RxD, TxD, GND)
 Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
 Parity None, Even, Odd
 Data Bit 7, 8
 Stop Bit 1, 2



 CAN
 Controller NXP SJA1000T with 16 MHz clock
 Isolation 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
 Specification CANopen DS-301 ver4.02



 PROFIBUS
 Controller Profichip VPC3+C
 Transceiver ADI ADM2486
 Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
 Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
 Protocol DP-V0



 Power
Consumption 2.5 W



 Mechanical
 Dimensions (mm) 72 x 33 x 119 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +85 °C
 Humidity 5 ~ 95% RH, non-condensing



Accessories

CNT-PROFI
    CNT-PROFI

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 GW-7553-   CPM     CR  PROFIBUS to CANopen Gateway (Plastic Case) (RoHS) 1
