Made in India

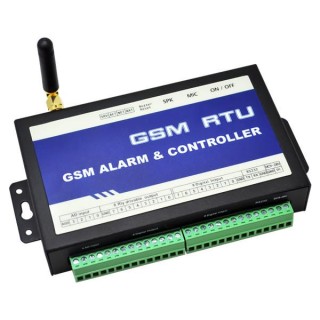

GSM RTU



  •  Adopted highly integrated industrial 32-bit ARM MCU
  • Reliable performance with built-in double watchdog, 24×7 operation
     With signal filtering mechanisms
  • Network-reconnect and retransmission to ensure data accurately transmit
  • Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
  • Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
  • Event-based linkage programming, e.g. alarm linkage output
  •  Provide configure software, visual programming, over 100 parameters can be set
  •  Inside temperature optional, can set high or low to alarm
  • Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost.

Introduction

NT-5011 RTU with 8 DI, 8 DO, 4 AI, RS232 standard electrical interface can connect various industrial equipment,
such as PLC, meters, sensors, electrical switches. It monitors the industrial system real-time running status and data, as
well as constructs the remote device to a proprietary central computer and mobile phones through the sms
communication. It efficiently acquires the remote equipment operating parameters and process management, can be
widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water
conservancy project, power industries, agriculture, etc.

Specifications

 Network
 Wireless Network Default GSM/GPRS



I/O Channel
 Digital input(DI) 8 Ch Dry contact
Digital Output(DO) 8 Relay Output
Analog Input 4-20mA / 0-5VDC



 SIM Card
  Supporting 3V/1.8V SIM Card



 COM Ports
 Ports RS232C
 Antenna 50ohm SMA Antenna Interface



 Power
 Input Range +12 ~ +24 VDC
 Consumption 12V Input Max 150mA/Average 50mA
 Frequency Range Quad-Frequency 900/1800/850/1900MHz



 Mechanical
 Dimensions (mm) 130 x 80 x 25 mm
 Weight 370g



 Environment
 Operating Temperature -30 ~ +70 °C
Humidity Relative Humidity 95%



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 NT-5011 GSM RTU with 8 DI/8 DO/4 AI, RS232 N1
