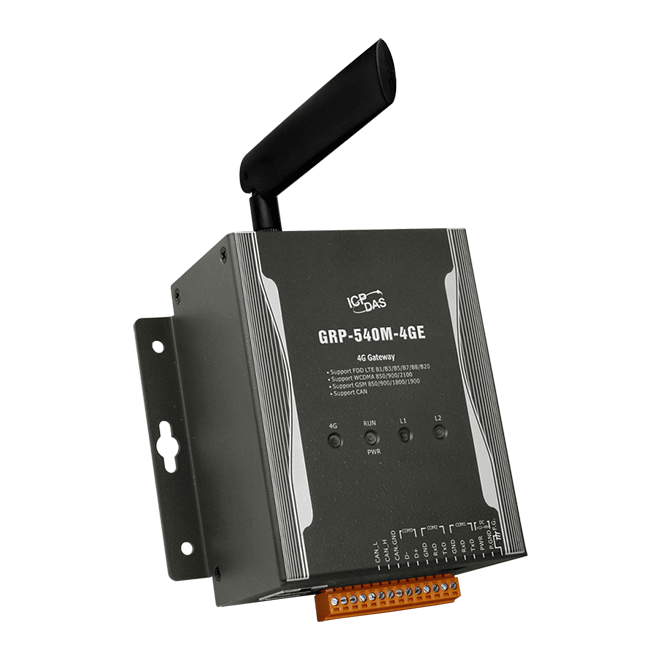

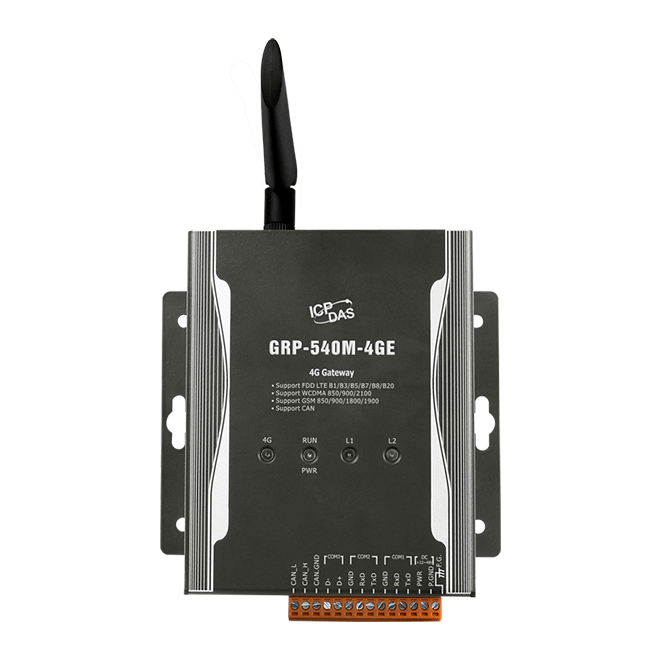

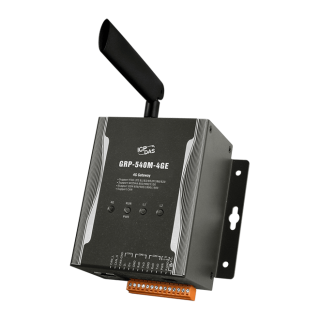

GRP-540M-4GE

  • Support 4G FDD LTE.
  • Support 3G WCDMA.
  • Support 2G GSM.
  • 10/100 Base-TX compatible Ethernet controller.
  • Support CAN.
  • GPS : 32 channels with All-In-View tracking.
  • Support Micro SD card.
  • Provide 4G Router function.
  • Provide port mapping function.
  • Serial Port to 4G Gateway Function.
  • High reliability in harsh environments.
  • DIN-Rail mountable.

Introduction

The GRP-540M provided by ICP DAS is a 4G gateway for Ethernet, serial port, and CAN. With GPS function, the GRP-540M can also be a GPS tracking system. It can be used in M2M application fields to transfer the remote I/O, Modbus data or video of the camera via 4G/3G/2G. Within the high performance CPU, the GRP-540M-4GE can handle a large of data and are suit for harsh Industrial environment. The GRP-540M has 4G module, Ethernet interface and GPS module.

Application

  4G Router





  Remote Video Monitor




  Serial Port to 4G Gateway Application

Specifications



 CPU Module
CPU ARM CPU
EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Storage Expansion SD Card (Max. 32GB SDHC)
Watchdog Timer Yes



 LED Indiacators
Status 1 x RUN/PWR
1 x 4G
1 x L1
1 x L2



2G System
Data Transmission Rate GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps
Frequency Band 850/900/1800/1900 MHz
Coding Schemes CS 1, CS 2,CS 3,CS 4
GPRS Multi-slot GPRS class 12; GPRS station class B
Power Class Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz)



3G System
Data Transmission Rate DC-HSPA+
Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
Frequency Band WCDMA 850/900/2100 MHz
Power Class Class 3 (250mW @ WCDMA/HSPA)



4G System
Data Transmission Rate LTE
Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50 Mbps
Frequency Band FDD LTE: B1/B3/B5/B7/B8/B20



GPS/GNSS
Protocol NMEA 0183
Support Channels 32



COM Ports
Ports 1 x RS-232 (Console, Debug)
1 x RS-232
1 x RS-485 (3000VDC Isolated)



Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)



CAN
Signal Line CAN Bus (CAN_H, CAN_L)



Power
Consumption 4.8W ( 200 mA @ 24 VDC)



Mechanical
Casing Metal
Dimensions (mm) 117 x 126 x 58 (W x L x H)
Installation DIN-Rail / Screw



Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 95% RH, Non-condensing



Accessories

ANT-115-03 ANT-124-05
ANT-115-03 ANT-124-05

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
GRP-540M-4GE  CR  Ethernet/Serial/CAN to 4G Gateway. (RoHS) 1
