Data Acquisition

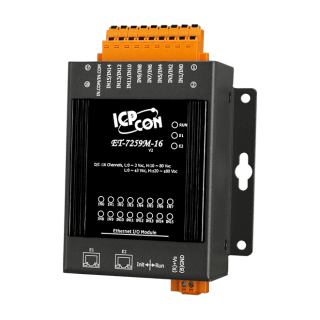

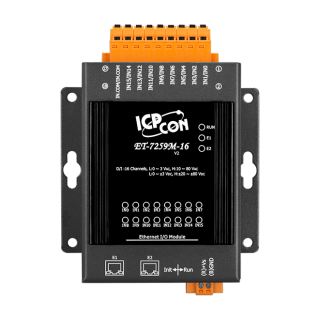

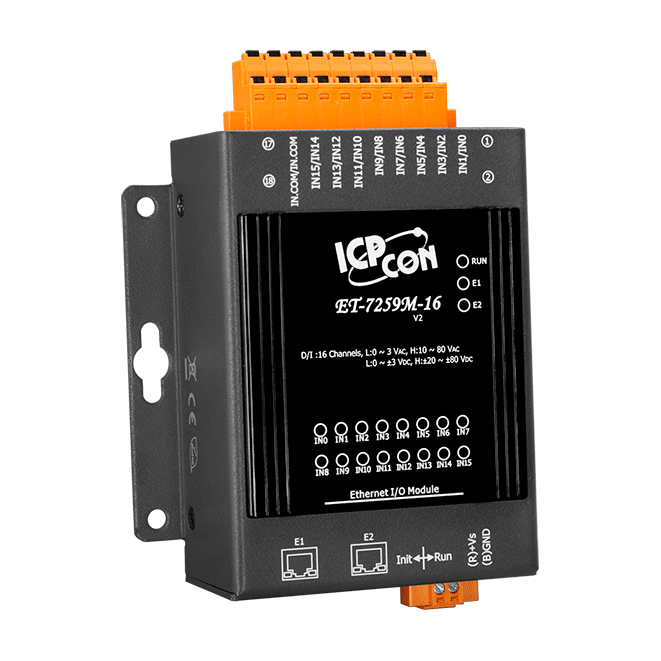

ET-7259M-16

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Built-in I/O
    • AC/DC Digital Input: 16 Channels

Introduction

The ET-7259M-16 provides 16 AC/DC digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 2500 VDC of transient over voltage protection but doesn't provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.

Specifications

 Software
 Built-in Web Server Yes



 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 2-way Isolation Ethernet: 1500 VDC
I/O: 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point



 LED Indicators
 Status Run, Ethernet, I/O



 Digital Input/Counter
 Channels 16
 Type Wet Contact
 Sink/Source (NPN/PNP) Sink/Source
 ON Voltage Level 15 to 90 VAC
±20 to ±90 VDC
 OFF Voltage Level 3 VAC (max.)
±3 VDC (max.)
 Max. Counts 4,294,967,295 (32-bit)
 Frequency 100 Hz
 Min. Pulse Width 5 ms
 Input Impedance 30 kΩ
 Overvoltage Protection 120 VAC



 Ethernet
 Ports 2 x RJ-45, 10/100 Base-TX, Switch Ports
 LAN bypass Yes
 Security ID, Password and IP Filter
 Protocol Modbus TCP, Modbus UDP



 Power
 Reverse Polarity Protection Yes
 Consumption 2.6 W (max.)
 Powered from Terminal Block +12 to +48 VDC



 Mechanical
 Dimensions (mm) 97 x 130 x 38 (W x L x H)
 Installation DIN-Rail mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 ET-7259M-16     CR  Ethernet I/O Module with 2-port Ethernet Switch, with 16-channel Digital Input (RoHS) 1
