Data Acquisition

ET-7052

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • DI/Counter: 8 Channels
    • DO: 8 Channels

Introduction

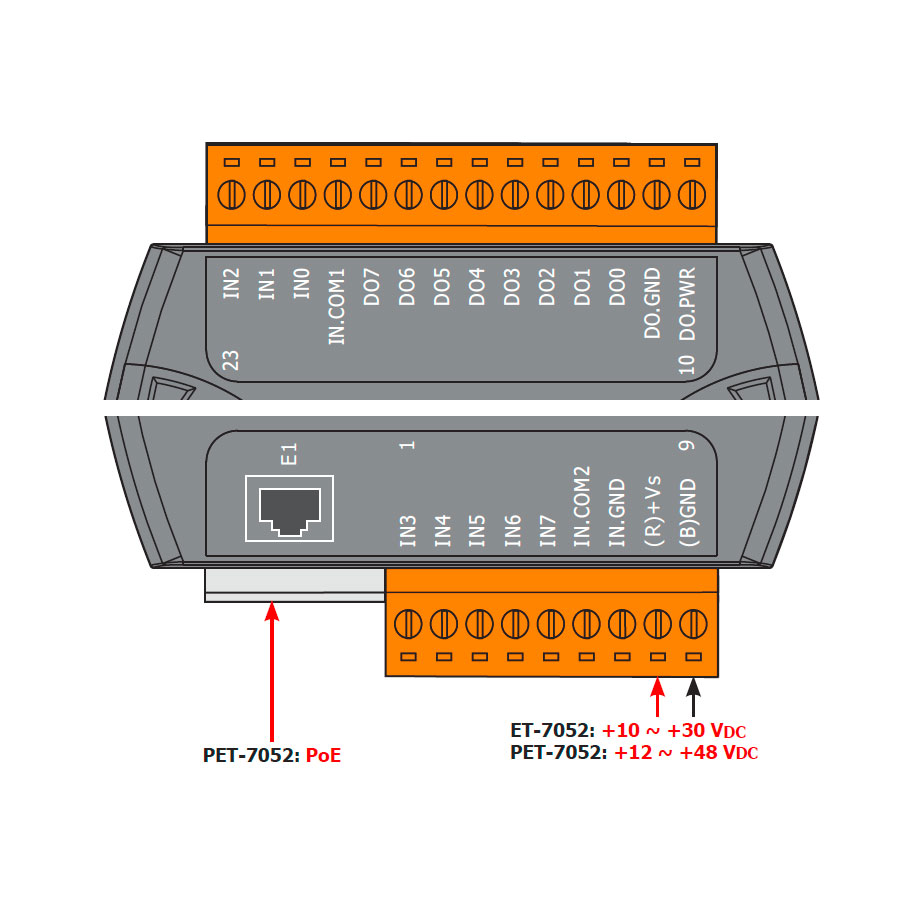

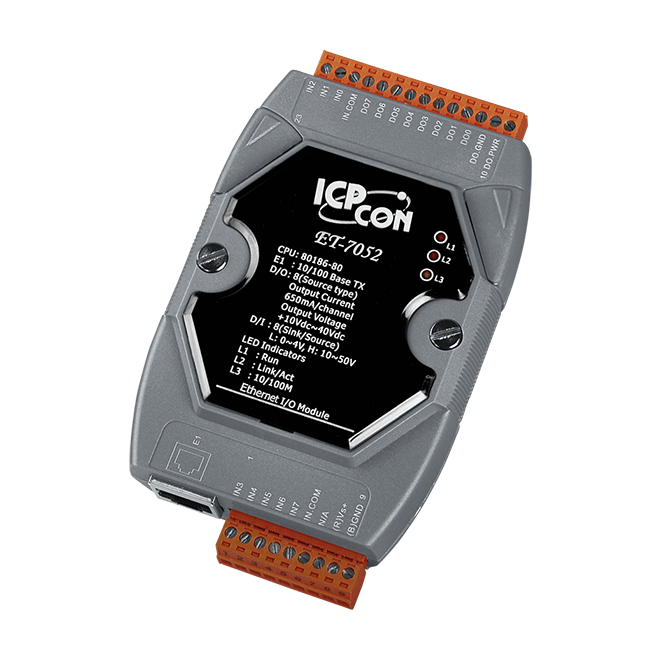

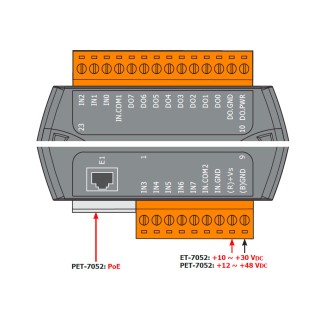

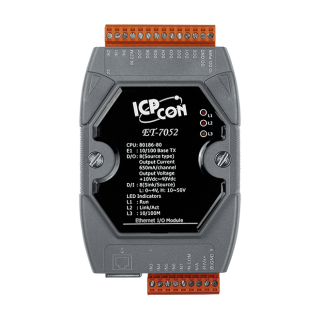

The ET-7052 provides 8 wet contact digital input channels and 8 source-type digital output channels. It features optical isolation for 2500 VDC of transient overvoltage protection but doesn't provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter and each output channel can drive a 650 mA load. The power-on value and safe value of the digital output channel are programmable. It can safely be used in applications where hazardous voltages are present.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

 Software
 Built-in Web Server Yes



 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 2-way Isolation Ethernet: 1500 VDC
I/O: 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±0.5 kV for Power Line



 LED Indicators
 Status Run, Ethernet



 Digital Input/Counter
 Channels 8
 Type Wet Contact
 Sink/Source (NPN/PNP) Sink/Source
 ON Voltage Level +10 to +50 VDC
 OFF Voltage Level +4 VDC (max.)
 Max. Counts 4,294,967,295 (32-bit)
 Frequency 500 Hz
 Min. Pulse Width 1 ms
 Input Impedance 10 KΩ
 Overvoltage Protection +70 VDC



 Digital Output
 Channels 8
 Type Isolated Open Collector
 Sink/Source (NPN/PNP) Source
 Load Voltage +10 to +40 VDC
 Load Current 650 mA/channel at 25°C
 Overvoltage Protection +47 VDC
 Short-circuit Protection Yes
 Power on Value Programmable
 Safe Value Programmable



 Ethernet
 Ports 1 x RJ-45, 10/100 Base-TX
 Security ID, Password and IP Filter
 Protocol Modbus TCP, Modbus UDP



 Power
 Reverse Polarity Protection Yes
 Consumption 2.5 W (max.)
 Powered from Terminal Block +10 to +30 VDC



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description
