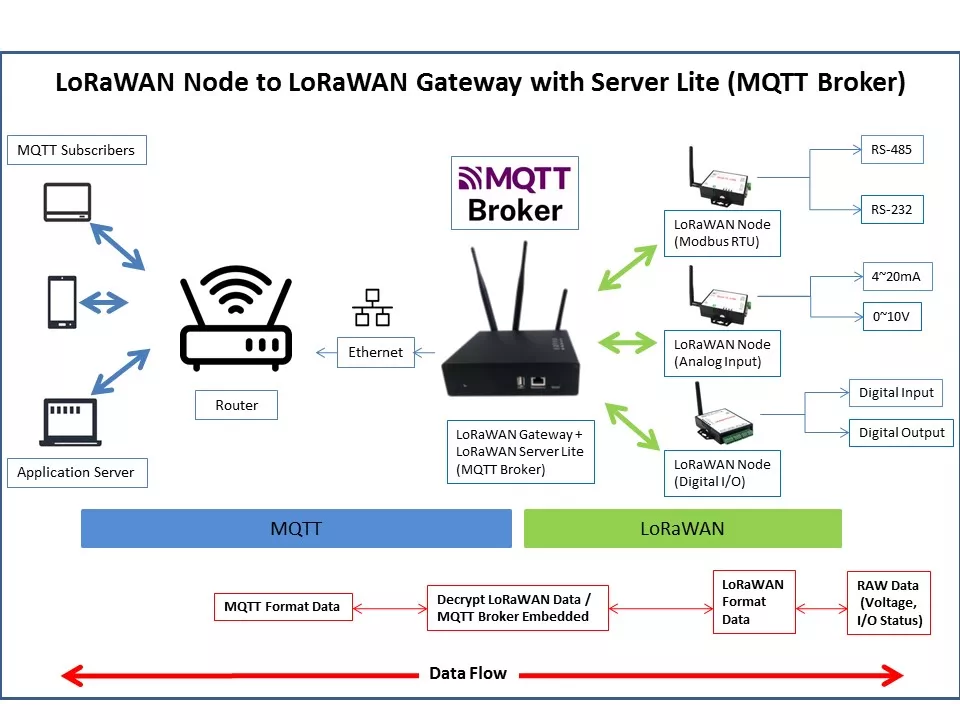

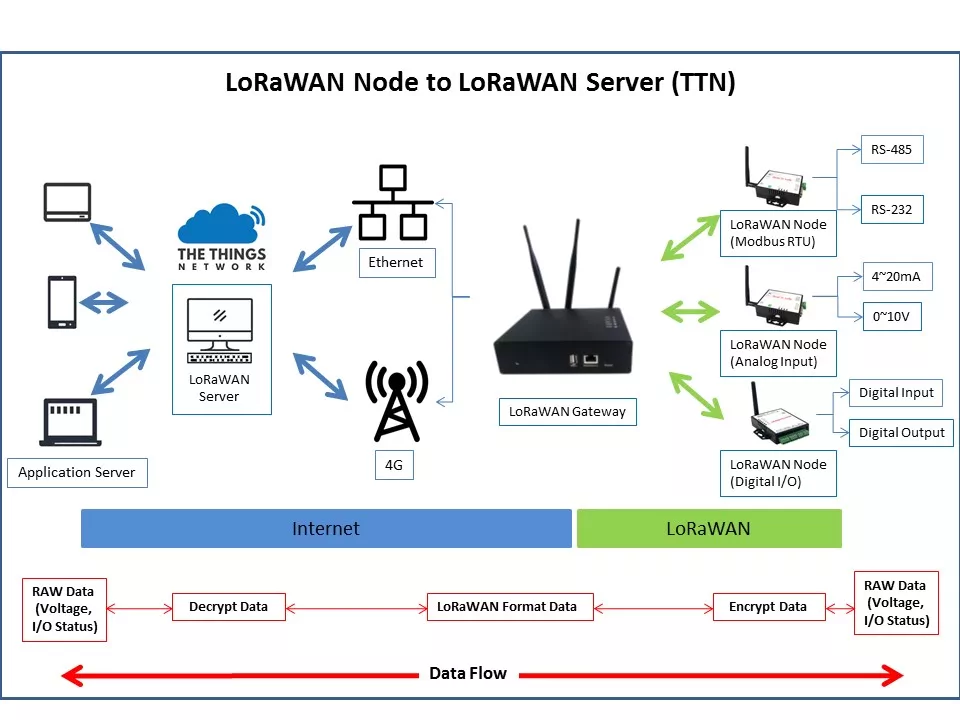

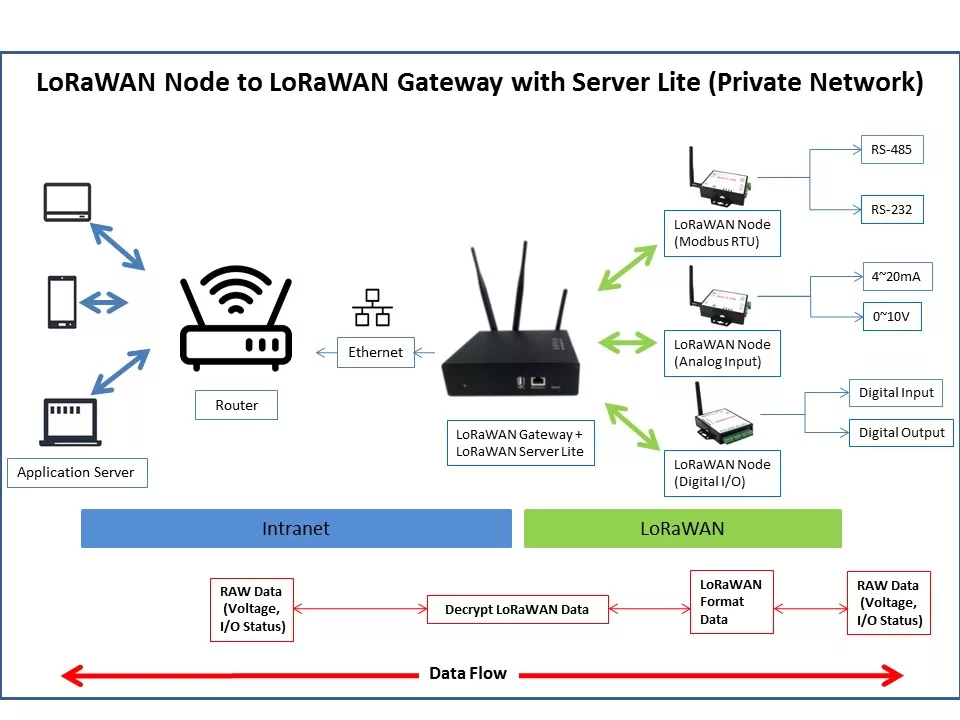

Application

Specifications

•   LoRa :
•   Semtech SX1262
•   ISM band 863 ~ 928MHz
•   Receiver Sensitivity : -139 dBm
•   Transmit Output Power : 22 dBm
•   Deep Sleep Current : 10uA
•   TX current < 140 mA@20 dbm , RX current < 10 mA
•   Antenna : SMA Type , 2 dBi , changeable
•   Distance : Up To 1500 Meters in free space
•   Data Rate : 0.244 ~ 18.2K bps (LoRa) / 300 K bps (FSK)
•   Application mode : Star

•   Digital I/O
•   Digital Input * 4
•   3000VDC Isolation Protect ( Active High /Active Low Selectable )
•   Dry contact : Logic level 0 : close to GND , Logic level 1 : open
•   Wet contact : Logic level 0 : 0~3 V , Logic level 1 : 10 ~ 30 V
•   Digital Output * 3
•   Relay ( Active High /Active Low Selectable )
•   120V AC@0.5A , 240V AC@0.5A , 24V DC@1A
•   Setup Tool : Windows Utility
•   Power : DC 9 ~ 24V / 150ma @ 9V , 60ma @ 24V
•   Led Lamp : SYS (red) , Pairing (green) , Rx(red) , Tx(green),Pair (Green)
•   Environment: Operating Temperature:-10℃〜70℃
•   Storage Temperature:-20℃〜85℃
•   Dimensions : 100 * 90 * 25 mm ( W * D * H )
•   Weight : 150 gm ( not include power )

Description

PRODUCT SERIES	DESCRIPTION	QTY	INQUIRY

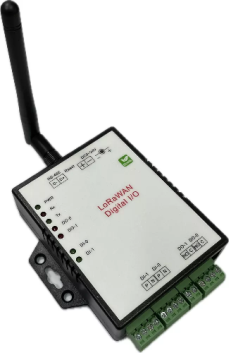

NT-201-DIO-WAN	Digital I/O To LoRaWAN	1
