DN-DO-16DR-A

Introduction

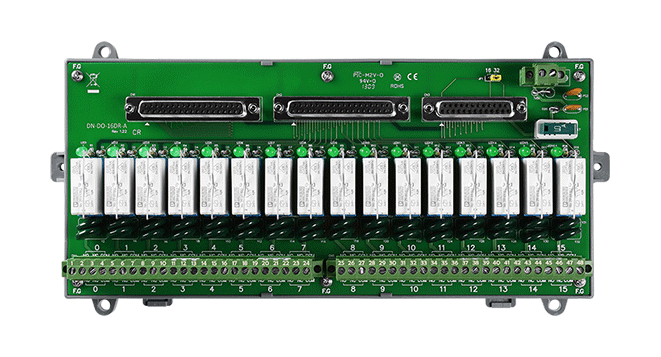

The DN-DO-16DR-A & DN-DO-16DR-B are termination boards with relay (Form C, SPDT) output. The DN-DO-16DR-A is used for digital output channel 0~15, and the DN-DO-16DR-B is used for digital output channel 16~31. These boards offer 2 output for each channel to extend control logic due to the Form C relay, it can be positive (N.O.) or negative (N.C.) logic output or both. In addition, each channel is built-in two varistors on N.O. and N.C. channel to protect against high-voltage transients and surges to the control loop.


PIN Assignments

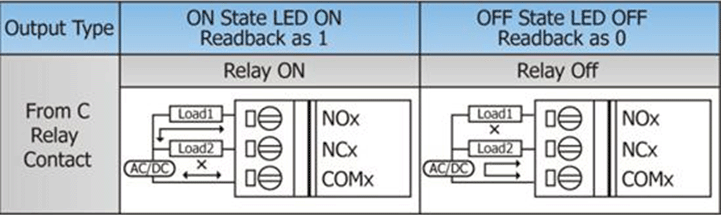

Wiring

Specifications



 Digital Output
 Type Form C Relay



 Relay Output
 Contact Rating  Contact configuration: SPDT; Rated current/Max. peak current: 6 A/10 A;   Rated voltage/Max. switching voltage: 250 VAC/400 VAC; Minimum   switching Load: 300 mW
 Operate Time  8 ms
 Release Time  5 ms
 Mechanical Endurance  20 x 10^6



 Mechanical
 Dimensions (mm) 126.6 x 274.6 x 25.5
 Installation DIN-Rail & wall mounting



 Environment
 Operating Temperature -25 ~ 75 °C
 Humidity 5 ~ 95% RH, Non-condensing



Accessories

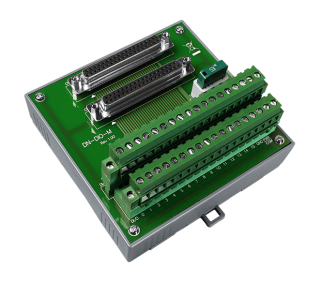

CA-2520D CA-3710AM CA-37100AM

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 DN-DO-16DR-A     CR  Termination board for digital output with high EMS protection and removable relay (Ch0 ~ 15) 1
