PROCESS INDICATOR
․Measuring load cell, strain gauge signal 0~1.0/~2.0/~3.33/~4.0/~10.0/~20.0/~40.0mV/V (Specified)
․Field calibration with load cell or strain gauge to meet the system requirement.
․Able to select one from these 3 functions, 1 relay output, 1 analog output, or 1 RS-485
․Relay output can be programmed individually to be a Hi / Lo / Hi Hold / Lo Hold, and can be energized with Start
Delay / Hysteresis / Energized & De-energized Delay functions.
․Optional purchase: analog output or RS-485 communication port
․CE Approved & RoHS
CS1-SG economic type strain gauge/load cell indicator is equipped
with high accuracy measurement, display and communication of DC signal
0~1.0/~4.0mV or 0~10.0/~40.0mV.
It supports field calibration, and It can calibrate with sensor (load cell/
strain gauge) according to actual needs.
It is able to select one from these three functions, 1 relay output, 1
analogue output or 1 RS-485 (Modbus RTU Mode) interface; they provides many functions such as control, alarm,
re-transmission, and communication
․Measuring load cell, strain gauge signal 0~1.0/~2.0/~3.33/~4.0/~10.0/~20.0/~40.0mV/V (Specified)
․Field calibration with load cell or strain gauge to meet the system requirement.
․Able to select one from these 3 functions, 1 relay output, 1 analog output, or 1 RS-485
․Relay output can be programmed individually to be a Hi / Lo / Hi Hold / Lo Hold, and can be energized with Start
Delay / Hysteresis / Energized & De-energized Delay functions.
․Optional purchase: analog output or RS-485 communication port
․CE Approved & RoHS

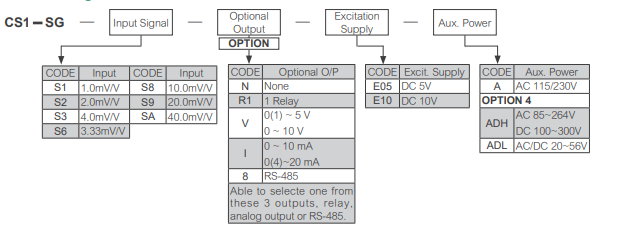

Input | |
---|---|
Voltage | 0 ~ 10 V |
Current | 4(0)~20 mA |
Calibration | Digital calibration by front key |
A/D converter | 16 bits resolution |
Accuracy | ≤± 0.04% of FS 1C; |
Sampling rate | 15 cycles/sec |
Response Time | ≤100 msec.(when the AvG = “1”) in standard |
Input type | 0~10V / 0~5V / 1~5V / 0-10mA / 0~20mA / 4~20mA |
Display & Functions | |
---|---|
LED | Numeric: 5 digits, 0.8”(20.0mm)H red high-brightness LED Relay output indication: 1 square red LED RS 485 communication: 1 square orange LED E.C.I. function indication: 1 square green LED Max/Mini Hold indication: 2 square orange LED Down key function indication (Reset for Max.(Mini.) Hold / PV Hold / Rel. PV): 1 square green LED |
Display range | -19999~29999 |
Scaling function | lOsc: Low Scale; Settable range: -19999~+29999 hIsc: High Scale; Settable range: -19999~+29999 |
Decimal point | Programmable from 0 / 0.0 / 0.00 / 0.000 / 0.0000 |
Over range indication | ovfl, when input is over 20% of input range Hi |
Under range indication: | -ovfl, when input is under -20% of input range Lo |
Max / Mini recording | Maximum and Minimum value storage during power on |
Display functions | PV / Max(Mini) Hold / RS 485 Programmable |
Front key functions | Relative PV / PV Hold / Reset for maxi(mini) hold / Reset for relay energized latch programmable |
Low cut | Settable range: -19999~29999 counts |
Digital fine adjust | pVzro: Settable range: -19999~+29999 pVspn: Settable range: -19999~+29999 |
Reading Stable Function | |
---|---|
Average | Settable range: 1~99 times |
Moving average | Settable range: 1(None)~10 times |
Digital filter | Settable range: 0(None)/1~99 times |
Control Functions | |
---|---|
Set-points | One set-point |
Control relay | 1 Relay, FORM-C, 5A/230Vac, 10A/115V |
Relay energized mode | Energized levels compare with set-points: Hi / Lo / Hi.HLd / Lo.HLd programmable |
Energizing functions | Start delay / Energized & De-energized delay / Hysteresis Energized Latch Start band(Minimum level for Energizing): 0~9999counts Start delay time: 0:00.0~9(Minutes):59.9(Second) Energized delay time: 0.00.0~9(Minutes):59.9(Second) De-energized delay time: 0.00.0~9(Minutes):59.9(Second) Hysteresis: 0~5000 counts |
Analogue output | |
---|---|
Accuracy | ≤ 0.1% of F.S |
Ripple | ≤ 0.1% of F.S |
Response time | ≤100 msec. (10~90% of input) |
Isolation | AC 2.0 KV between input and output |
Output range | Specify either Voltage or Current output in ordering Voltage: 0~5V / 0~10V / 1~5V programmable Current: 0~10mA / 0~20mA / 4~20mA programmable |
Output capability | Voltage: 0~10V: ≥ 1000Ω; Current: 4(0)~20mA: ≤ 500Ω max |
Functions | aOhs(output range high): Settable range: -19999~29999 aOls(output range Low): Settable range: -19999~29999 |
Digital fine adjust | aOzro: Settable range: -38011~+27524 aOspn: Settable range: -38011~+27524 |
Power | |
---|---|
Power Supply | AC115/230V,50/60Hz; Optional: AC 85~264V, DC 100~300V or DC 20~56V |
Mechanical | |
---|---|
Dimensions (mm) | 96mm(W) x 48mm(H) x 72mm(D |
Case material | ABS fire-resistance (UL 94V-0) |
Environment | |
---|---|
Operating temp.: 0~60 ˚C |
0~60 ˚C |
Operating humidity | 20~95 %RH, Non-condensing |
Temp. coefficient | ≤100 PPM/˚C |
Storage temp | -10~70 ˚C |
Enclosure | Operating Temperature |
