PROCESS INDICATOR

CS1-PR

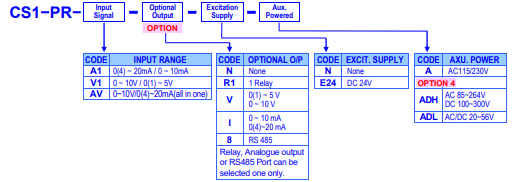

 Measuring linear signal 0~10V and 0(4)~20mA in one indicator(input code: AV)

■ Option available 1 of 1 relay, 1 analogue output or RS485(Modbus RTU mode)

■ 1 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch energized with Start Delay /

Hysteresis / Energized & De-energized Delay functions.

■ Analogue output or RS 485 communication port in option

■ CE Approved & RoHS

Introduction

CS1-PR economic type Process Indicator has been designed with high accuracy measurement, display and communication of DC signal 0~10V and 4(0)~20mA. They are also available 1 option of 1 Relay outputs, 1 Analogue output or 1 RS485(Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission or communication for a wide range of industrial applications.

Specifications

 Input
 Voltage  0 ~ 10 V
 Current 4(0)~20 mA
 Calibration Digital calibration by front key
 A/D converter 16 bits resolution
 Accuracy ≤± 0.04% of FS  1C;
 Sampling rate 15 cycles/sec
 Response Time ≤100 msec.(when the AvG = “1”) in standard
 Input type 0~10V / 0~5V / 1~5V / 0-10mA / 0~20mA / 4~20mA



 Display & Functions
 LED Numeric: 5 digits, 0.8”(20.0mm)H red high-brightness LED
Relay output indication: 1 square red LED
RS 485 communication: 1 square orange LED
E.C.I. function indication: 1 square green LED
Max/Mini Hold indication: 2 square orange LED
Down key function indication (Reset for Max.(Mini.) Hold /
PV Hold / Rel. PV): 1 square green LED
 Display range -19999~29999
 Scaling function lOsc: Low Scale; Settable range: -19999~+29999
hIsc: High Scale; Settable range: -19999~+29999
 Decimal point  Programmable from 0 / 0.0 / 0.00 / 0.000 / 0.0000
 Over range indication ovfl, when input is over 20% of input range Hi
 Under range indication: -ovfl, when input is under -20% of input range Lo
 Max / Mini recording Maximum and Minimum value storage during power on
 Display functions PV / Max(Mini) Hold / RS 485 Programmable
 Front key functions Relative PV / PV Hold / Reset for maxi(mini) hold /
Reset for relay energized latch programmable
 Low cut Settable range: -19999~29999 counts
 Digital fine adjust pVzro: Settable range: -19999~+29999
pVspn: Settable range: -19999~+29999



 Reading Stable Function
 Average Settable range: 1~99 times
 Moving average Settable range: 1(None)~10 times
 Digital filter Settable range: 0(None)/1~99 times



 Control Functions
 Set-points One set-point
 Control relay 1 Relay, FORM-C, 5A/230Vac, 10A/115V
 Relay energized mode Energized levels compare with set-points:
Hi / Lo / Hi.HLd / Lo.HLd programmable
 Energizing functions Start delay / Energized & De-energized delay / Hysteresis
Energized Latch
Start band(Minimum level for Energizing): 0~9999counts
Start delay time: 0:00.0~9(Minutes):59.9(Second)
Energized delay time: 0.00.0~9(Minutes):59.9(Second)
De-energized delay time: 0.00.0~9(Minutes):59.9(Second)
Hysteresis: 0~5000 counts



 Analogue output
 Accuracy ≤ 0.1% of F.S
 Ripple ≤ 0.1% of F.S
 Response time ≤100 msec. (10~90% of input)
 Isolation AC 2.0 KV between input and output
 Output range Specify either Voltage or Current output in ordering
Voltage: 0~5V / 0~10V / 1~5V programmable
Current: 0~10mA / 0~20mA / 4~20mA programmable
 Output capability Voltage: 0~10V: ≥ 1000Ω;
Current: 4(0)~20mA: ≤ 500Ω max
 Functions aOhs(output range high): Settable range: -19999~29999
aOls(output range Low): Settable range: -19999~29999
 Digital fine adjust aOzro: Settable range: -38011~+27524
aOspn: Settable range: -38011~+27524



 Power
 Power Supply AC115/230V,50/60Hz;
Optional: AC 85~264V, DC 100~300V
or DC 20~56V



 Mechanical
 Dimensions (mm) 96mm(W) x 48mm(H) x 72mm(D
 Case material ABS fire-resistance (UL 94V-0)



 Environment
 Operating temp.

 0~60 ˚C
 Operating humidity 20~95 %RH, Non-condensing
 Temp. coefficient ≤100 PPM/˚C
 Storage temp -10~70 ˚C
 Enclosure Operating Temperature



Description
