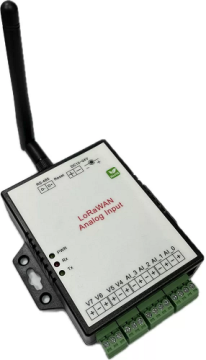

Analog Input To LoRaWAN

  • LR-201-AI-WAN : Analog Input To LoRaWAN
  • Features : Auto polling Analog Input Sensor Data To LoRaWAN
  • CPU : Xtensa® 32-bit LX6 microprocessors 160M Hz
  • RAM : 400K Bytes SRAM ; ROM : 380K Bytes Flash ROM
  • Support : LoRaWAN 1.0.2
  • Windows Configuration Utility
  • Support LoRaWAN 1.0.2
  • Support Modbus RTU protocol
  • 8 Channels Analog Inputs

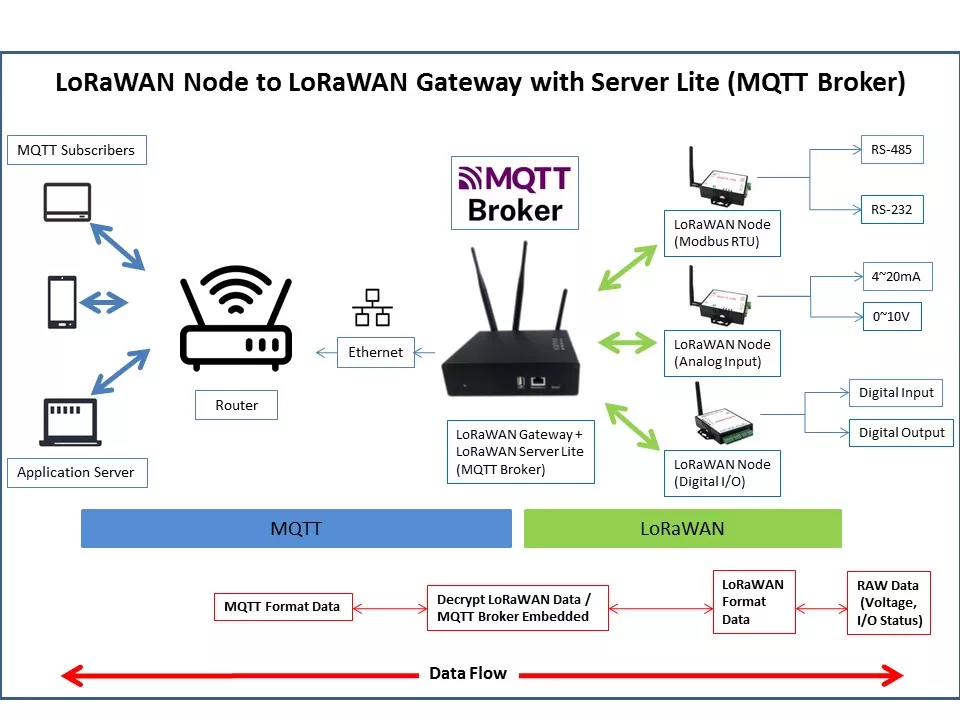

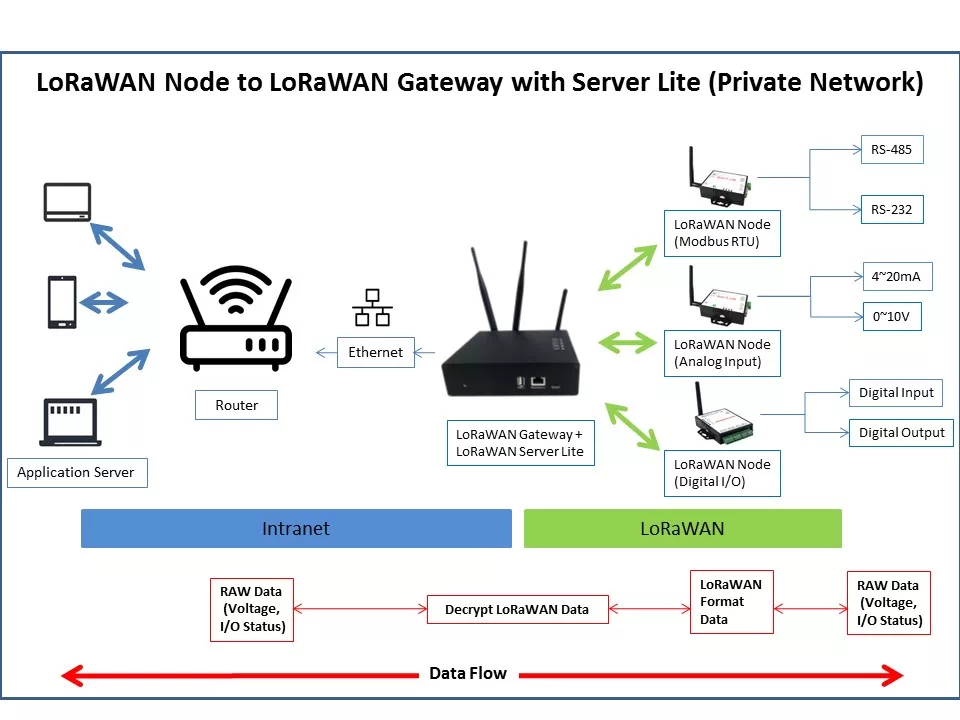

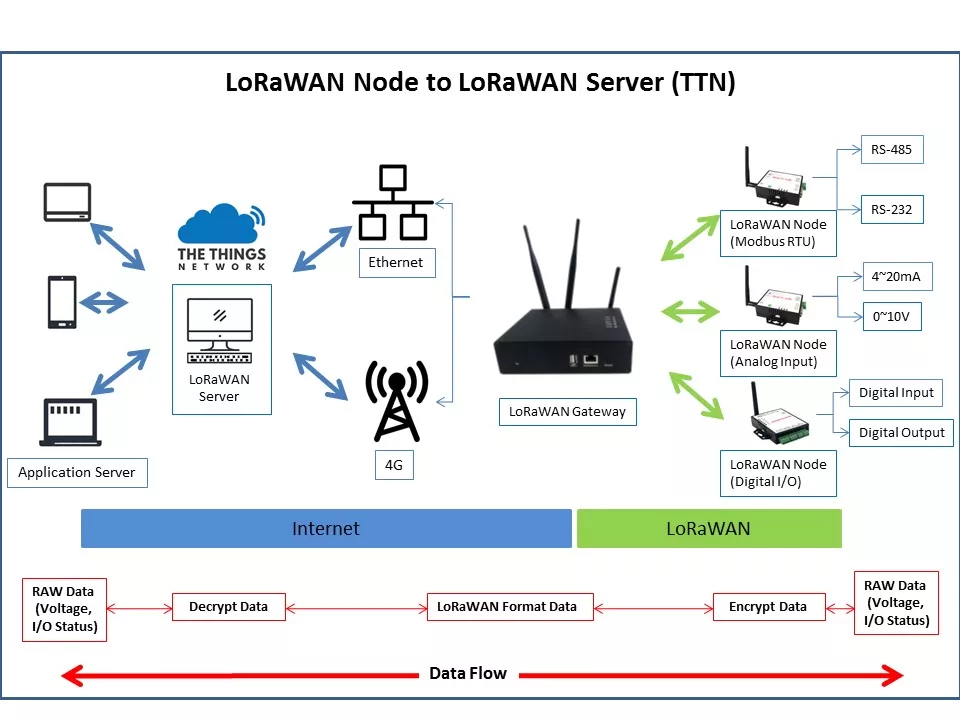

Application

Specifications

  •   LoRa :

  •   Semtech SX1262
  •   ISM band 863 ~ 928MHz
  •   Receiver Sensitivity : -139 dBm
  •   Transmit Output Power : 22 dBm
  •   Deep Sleep Current : 10uA
  •   TX current < 140 mA@20 dbm , RX current < 10 mA
  •   Antenna : SMA Type , 2 dBi , changeable
  •   Distance : Up To 1500 Meters in free space
  •   Data Rate : 0.244 ~ 18.2K bps (LoRa)
  •   Application mode : Star



  •   Analog Input

  •   Port : 4~20 MA or 0~10 V * 4 Channels, 0~10V * 4 Channels
  •   TI chipset 16 bits resolution
  •   Sample rate : 3 times / second ( 8 channels )
  •   Setup Tool : Windows Utility
  •   Power : DC 9 ~ 24V / 150ma @ 9V , 60ma @ 24V
  •   Led Lamp : SYS (green) , Rx(red) , Tx(green), Paired(Red)
  •   Environment : Operating Temperature: -10℃〜70℃
  •   Storage Temperature : -20℃〜80℃
  •   Dimensions : 100 * 90 * 25 mm ( W * D * H )
  •   Weight : 150 gm ( not include power )

Description

PRODUCT SERIES     DESCRIPTION  QTY   INQUIRY
              NT-201-AI-WAN

   Analog Input(4-20mA/0-10VDC) To LoRaWAN

           1
