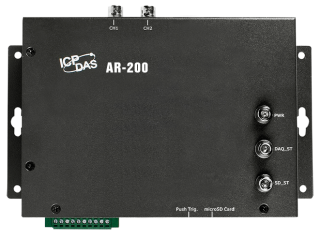

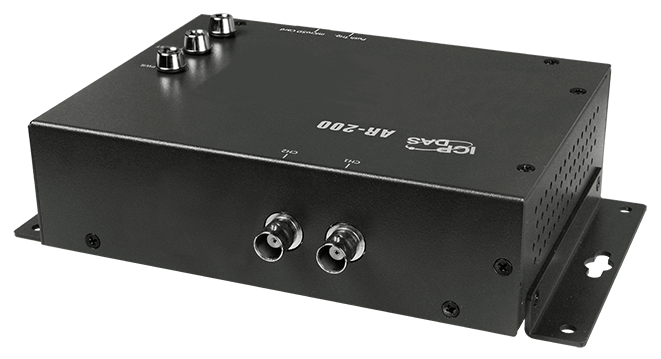

AR-200

  • 2 or 4 simultaneous, 16-bit resolution ADC.
  • Support 2 or 4 IEPE input，and built-in 3 mA excitation current.
  • AR-200 support sample rate: 200kHz、100kHz、50kHz.
  • Max. Recording time：30 minutes
  • Flexible trigger modes: Push button trigger、Schedule trigger、analog threshold trigger、digital input trigger and utility remote trigger.
  • Supports 4 to 32 GB micro SDHC type flash.
  • 4 kV Contact ESD protection for any terminal.
  • Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to 75°C)

Introduction

The AR-200/AR-400 series is a range of high-performance dynamic signal acquisition modules that are designed specifically for vibration monitoring and analysis. The maximum simultaneous sampling rate for each channel on the AR-200 and AR-400 is up to 200k-Hz and 125k-Hz respectively. The AR-200/AR-400 modules include a built-in 3mA excitation current to power the Integrated Electronics Piezo-Electric (IEPE) accelerometers and a 16-bit A/D converter. The data acquired by the AR-200/AR-400 is saved on a Micro SD card that can be used for offline vibration analysis. ICP DAS also provides a utility that can be installed on the Host PC that can be easily configured for different triggering modes, as well as changing the sampling rate, and scheduling the sampling time for various applications using the development tools. Consequently, the AR-200/AR-400 modules are recommended as your best choice for vibration monitoring and measurement.



Application

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Specifications



 LED Indicators
 Status 1 x PWR
1 x DAQ
1 x SD



 Analog Input
 Channels 2 (simultaneous sampling)
 Type IEPE
 Range Voltage: ±10 V
Current: 3 mA
 Resolution 16 bit
 Sampling Rate 5, 10, 20, 50, 100, 125, 200 (kHz)P
 Trigger Mode Push-button triggering, timed triggering, threshold triggering, digital input triggering, remote triggering by utility software



 Digital Input
 Channels 1, Dry Contact: Source / Wet Contact: Sink or Source
 ON Voltage Level Dry: Close to GND
Wet: +10 VDC to +50 VDC
 OFF Voltage Level Dry: Open
Wet: +4 VDC max



 Relay Output
 Channels Form A x 1
 Type Power Relay
 Contact Rating 5A@250 VAC (47 ~ 63 Hz)
5A@30 VDC
 Operate Time 10 ms
 Release Time 5 ms
 Electrical Endurance 100,000 times min
 Mechanical Endurance 20,000,000 times min



 Ethernet
 Ports 1 x RJ-45, 10/100 Base-TX



 Power
 Consumption 4.3 W



 Mechanical
 Dimensions (mm) 197 x 139 x 57 (W x L x H)
 Installation Wall mounting, rail type



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Accessories

iSN-701-F15-L030 iSN-701-MBase01
iSN-701-F15-L030  iSN-701-F15-L030 iSN-701-MBase01

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 AR-200     CR  Accelerometer Data Logger Device, 2-ch IEPE Input (RoHS) 1
