PROCESS INDICATOR
The frequency input is 1Hz~6KHz, the input signal is a sine wave
˙ The operation buttons are built-in to prevent users from arbitrary operation or incorrect setting, which may cause
abnormal operation of the equipment
˙ The output can option relays or analog output or RS485 (Modbus RTU mode)
˙ Relay function in addition to start delay, active delay, delay off and active hold
˙ Analog output voltage signal range can be switched (0~10V/0~5V/1 ~5V)
or current signal range can be switched (0~10mA/0~20mA/4~20mA)
˙ The analog output signal is free to set the corresponding display range (Span-50%) and can be fine-tuned on-site
˙ On board terminal design, no quality issue, installation depth is only 73mm

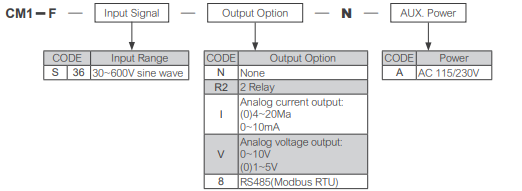

CM1-F is an economical and simple frequency meter with a 20mm 5-digit
LED display, and the display range can be set by pressing the button. Antiinterference design, reliable quality, simple installation and operation.
At the same time, it has 2 sets of relay output or 1 set of analog output or 1
set of RS485 (Modbus RTU mode) communication ports for selection.
The built-in design of the operation buttons can avoid human misoperation
and is suitable for various mechanical use.
Sine wave frequency measurement and PC/PLC for communication control or alarm
| Input | |
|---|---|
| Voltage | 0 ~ 10 V |
| Current | 4(0)~20 mA |
| Calibration | Digital calibration by front key |
| A/D converter | 16 bits resolution |
| Accuracy | ± 0 .1% of FS ±1 count |
| Sampling rate | 0.1~99 sec |
| Response Time | 15 times/sec( ≥15Hz，when avg = “1”) |
| Input type | 0~10V / 0~5V / 1~5V / 0-10mA / 0~20mA / 4~20mA |
| Display & Functions | |
|---|---|
| LED | 5 digits, 0.8”(20.0mm) high-brightness LED |
| Display range | 0~99999 |
| Display parameters | Frequency |
| Decimal point | D.P. of set point auto / Programmable from 0/ )0/ )00/ )000/ 0.0000 |
| Over range indication | [ ovfl]: when input is over 110% of input range |
| Max /Mini recording | Maximum and Minimum value storage during running |
| Low cut | Settable range: -19999~29999 counts |
| Reading Stable Function | |
|---|---|
| Average | [ avg]: 1~99 times |
| Digital filter | [ Dfilt]: 1~99 times |
| Control Functions | |
|---|---|
| Set-points | One set-point |
| Control relay | 1 Relay, FORM-C, 5A/230Vac, 10A/115V |
| Relay energized mode | Energized levels compare with set-points: Hi / Lo / Hi.HLd / Lo.HLd programmable |
| Energizing functions | Start delay / Energized & De-energized delay / Hysteresis Energized Latch Start band(Minimum level for Energizing): 0~9999counts Start delay time: 0:00.0~9(Minutes):59.9(Second) Energized delay time: 0.00.0~9(Minutes):59.9(Second) De-energized delay time: 0.00.0~9(Minutes):59.9(Second) Hysteresis: 0~5000 counts |
| Analogue output | |
|---|---|
| Accuracy | ≤ 0.1% of F.S |
| Ripple | ≤ 0.1% of F.S |
| Response time | ≤100 msec. (10~90% of input) |
| Isolation | AC 2.0 KV between input and output |
| Output range | Specify either Voltage or Current output in ordering Voltage: 0~5V / 0~10V / 1~5V programmable Current: 0~10mA / 0~20mA / 4~20mA programmable |
| Output capability | Voltage: 0~10V: ≥ 1000Ω; Current: 4(0)~20mA: ≤ 500Ω max |
| Functions | aOhs(output range high): Settable range: -19999~29999 aOls(output range Low): Settable range: -19999~29999 |
| Digital fine adjust | aOzro: Settable range: -38011~+27524 aOspn: Settable range: -38011~+27524 |
| Power | |
|---|---|
| Range | AC 115/230V ±15%,50/60Hz |
| Power consumption | AC: ≤2.5VA |
| Excitation supply | None |
| Memory storage | EEPROM |
| Mechanical | |
|---|---|
| Dimensions (mm) | 96mm(W)x48mm(H)x80mm(L) |
| Case material | ABS (with fire-retardant )(UL 94V-0) |
| Environment | |
|---|---|
| Operating temp |
0~60 ˚C |
| Operating humidity | 20~95 %RH, Non-condensing |
| Temp. coefficient | ≤100 PPM/˚C |
| Storage temp | -10~70 ˚C |
| Enclosure | Operating Temperature |
