Data Acquisition

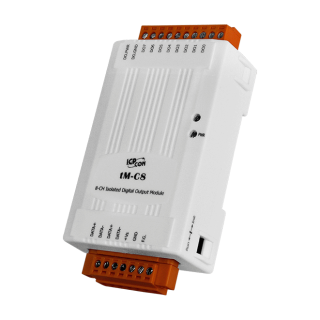

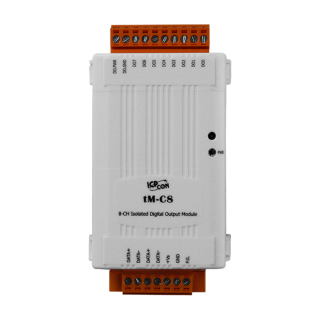

tM-C8

  • Sink-type Digital Outputs
  • photocoupler Isolation
  • Configurable Power-on Value and Safe Value Settings
  • Dual Watchdog

Introduction

The tM-C8 provides 8 channels for digital output, each of which features photocoupler isolation. The tM-C8 supports sink-type output with short circuit protection and there are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.

Application

• All kinds of On/Off Control
• Industry Automation
• Industrial Machinery
• Building Automation
• Food & Beverage Systems
• Semiconductor Fabrication
• Control Systems

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 Intra-module Isolation 3750 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point



 LED Indicators
 Status 1 x Power and Communication



 Digital Output
 Channels 8
 Type Isolated Open Collector
 Sink/Source (NPN/PNP) Sink
 Load Voltage +3.5 ~ +50 VDC
 Load Current 700 mA/channel
 Overvoltage Protection 60 VDC
 Overload Protection 1.4 A
 Short-circuit Protection Yes
 Power on Value Programmable
 Safe Value Programmable



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
 Protocol DCON, Modbus RTU, Modbus ASCII



 Power
 Reverse Polarity Protection Yes
 Input Range 0.8 W Max.
 Consumption 10 ~ 30 VDC



 Mechanical
 Dimensions (mm) 52 x 98 x 27 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +75 °C
 Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY    INQUIRY
 tM-C8     CR  8-channel Isolation DO (Sink, NPN) Module (RoHS) 1
