Data Acquisition

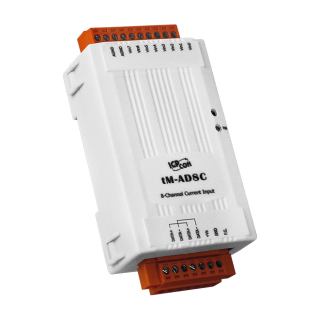

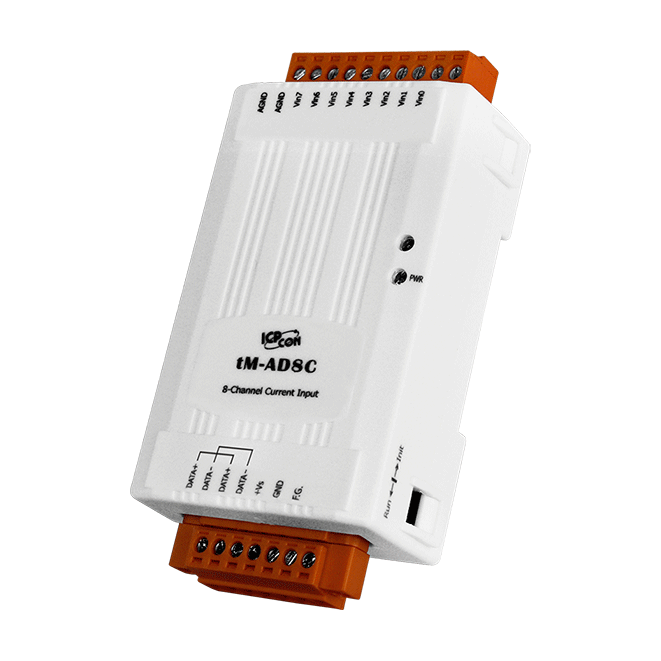

tM-AD8C

  • 8-channel Single-ended Inputs
  • Current Inputs
  • Adjustable Sampling Rate
  • Dual Watchdog

Introduction

The tM-AD8C is a current input module that includes 8 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 20 mA, 4 ~ 20 mA). The sampling rate of the tM-AD8C is adjustable and is available in either fast or normal mode. It also provides 4 kV ESD protection as well as 2500 Vrms intra-module isolation.

Application

• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 Intra-module Isolation 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point



 LED Indicators
 Status 1 x Power and Communication



 Analog Input
 Channels 8 Single-ended
 Type Current
 Range 0 ~ 20 mA, 4 ~ 20 mA
 Resolution Normal Mode: 14-bit
Fast Mode: 12-bit
 Accuracy Normal Mode: ±0.1%
Fast Mode: ±0.5%
 Sampling Rate Normal Mode: 10 Hz
Fast Mode: 200 Hz
 Input Impedance 125 Ω



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
 Protocol DCON, Modbus RTU, Modbus ASCII



 Power
 Reverse Polarity Protection Yes
 Input Range 0.7 W Max.
 Consumption 10 ~ 30 VDC



 Mechanical
 Dimensions (mm) 52 x 98 x 27 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +75 °C
 Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
   tM-AD8C CR             8-channel Isolation Current Input Module (RoHS)
