Data Acquisition

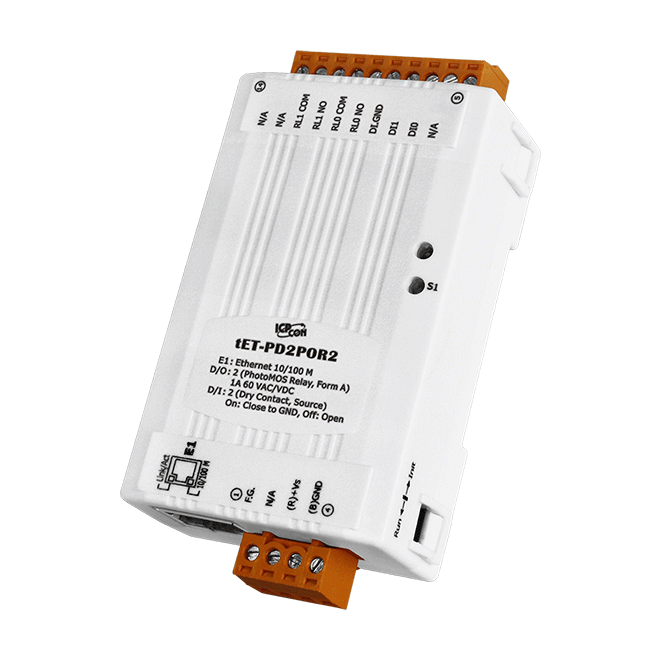

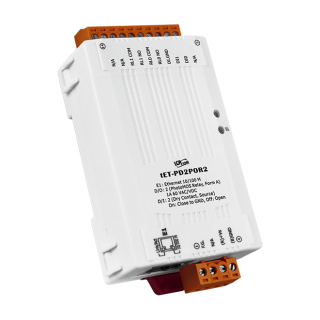

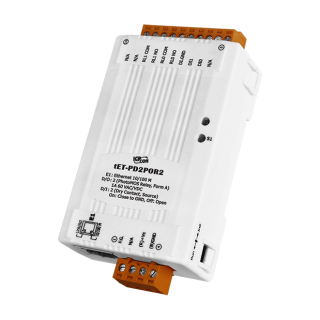

tET-PD2POR2

  • Built-in Web Server
  • Cost-effective Tiny Ethernet I/O Modules
  • Support Modbus TCP/UDP and MQTT Protocols
  • I/O Pair Connection (Push and Pull)
  • Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • Supports Dual-watchdog
  • Supports Web Configuration and Firmware Update Via Ethernet
  • Supports Latched DI, 32-bit DI Counters, and Frequency Measurement
  • DO Power-on and Safe Value

Introduction

Providing various digital I/O functions, the tET/tPET series is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP protocol. Modbus has become a de facto standard communications protocol in industry and is now the most commonly available means of connecting industrial electronic devices. This makes the tET/tPET series perfect integration with the HMI, SCADA, PLC, and other software systems.

The functionality of the tET/tPET series is almost the same as the ET-7000/PET-7000 series. The tET/tPET series tiny Ethernet I/O modules support various I/O types, like photo-isolated digital input, relay contact, photoMOS relay, and open-collector output. The module can be used to create DI to DO pair-connect through the Ethernet. Once the configuration is completed, the tET/tPET series module can poll the status of local DI channels and then use the Modbus/TCP protocol to continuously write to a remote DO device in the background.

The tET/tPET series provides a dual watchdog: CPU watchdog and host watchdog. The CPU watchdog automatically resets itself when the built-in firmware runs abnormally. The host watchdog monitors the host controller (PC or PLC), and the output of the module can go to a predefined state (safe value) when the host fails.

For maximum space savings, the tET/tPET series is offered in an amazing tiny form factor that makes it can be easily installed anywhere, even directly embedded into a machine. It is equipped with two removable terminal block connectors for easy wiring and features a powerful 32-bit ARM MCU to handle efficient network trafficking. The tPET series offers true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. When there is no PoE switch on site, the tPET series accepts power input from the DC adapter.

Application

Factory, Building, and Home Automation Remote Maintenance

Specifications

 CPU Module
 CPU 32-bit ARM
 Watchdog Timer Module, Communication (Programmable)



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point



 LED Indicators
 Status Run, Ethernet



 Digital Input/Counter
 Channels 2
 Type Dry Contact
 Sink/Source (NPN/PNP) Source
 ON Voltage Level Close to GND
 OFF Voltage Level Open
 Max. Counts 4,294,967,295 (32-bit)
 Frequency 3.5 kHz (without filter)
 Min. Pulse Width 0.15 ms
 Effective Distance 500m (max.)
 Isolation 3750 Vrms



 Relay Output
 Channels 2
 Type PhotoMOS Relay, Form A
 Contact Rating 60V/1.0A (Operating Temperature -25 to +40°C)
60V/0.8A (Operating Temperature +40 to +60°C)
60V/0.7A (Operating Temperature +60 to +75°C)
 Operate Time 1.3 ms (Typical)
 Release Time 0.1 ms (Typical)
 Electrical Endurance Long Life and No Sparking
 Isolation 3000 Vrms



 Ethernet
 Ports 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
 Protocol Modbus TCP, Modbus UDP, and MQTT



 Power
 Consumption 0.9 W
 Powered from Terminal Block +12 to +48 VDC



 Mechanical
 Dimensions (mm) 52 x 95 x 27 (W x L x H)
 Installation DIN-Rail mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
tET-PD2POR2     CR  Tiny Ethernet Module with 2-ch Dry Contact DI and 2-ch PhotoMOS Relay (RoHS) 1
