POWER

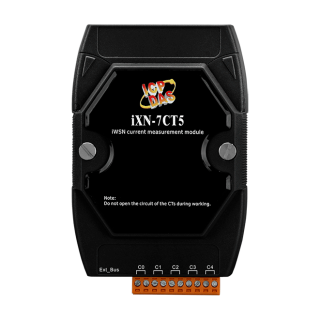

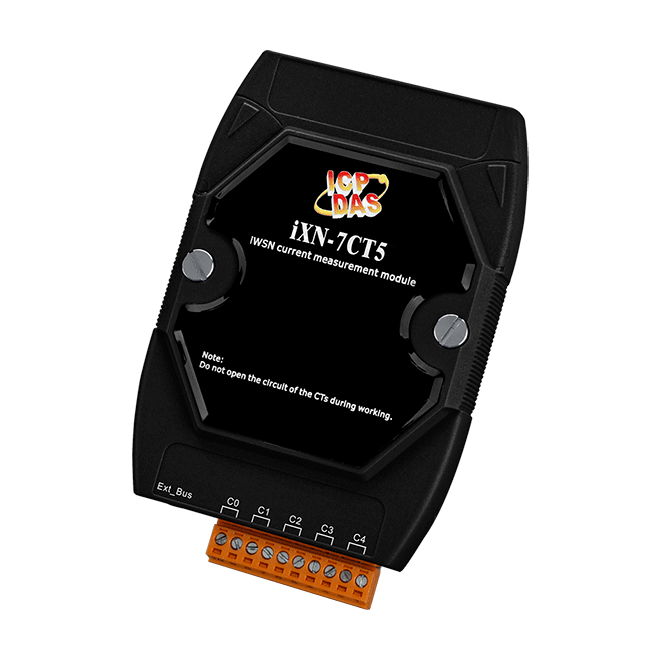

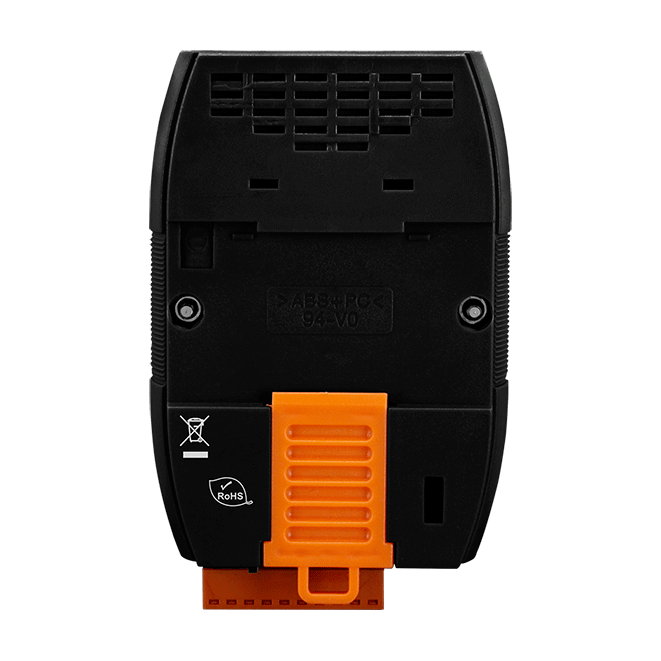

iXN-7CT5

  • Supports multi-channel IO expansion.
  • Allows connecting different measurement range of CTs in one expansion module.
  • Powered by iWSN sensing module.
  • Removable screwed terminal block for easy maintenance.
  • Offers wall-mount mechanism and magnet for installation.

Introduction

In order to upgrade the flexibility and expansibility of iWSN sensing module, the iXN expansion module is developed to connect to the iWSN sensing module. By means of iXN expansion modules, the iWSN sensing module can offer more current and temperature measurement channels. The iXN expansion module is energized by iWSN sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN expansion module provide removable screwed terminal block, wall-mount mechanism and magnet adsorption for installation, and also allows connecting different measurement range of CTs to fit various applications. More kinds of IO interface will be designed to rich the iWSN functionalities and unleash the power of iWSN sensing modules.

Application

  • iWSN sensor and iXN-7CT5

Specifications

 CT
 Split-core CT Channels 5
 Split-core CT Type Φ16mm (100A), Φ24mm (200A), or Φ36mm (400A); 8 m wire
 Input Voltage Maximum 500VAC, 60 Hz
 Accuracy ±3% or ±0.3A



 Power
 Consumption 1-sec Tx Duty: 20 A
10-sec Tx Duty: 12 A
30-sec Tx Duty: 11 A
60-sec Tx Duty: 11A
 Input Type iWSN sensing module provides power through the audio line.



 Mechanical
 Dimensions (mm) 72 x 115 x 35 (W x L x H)
 Installation DIN-rail or magnet adsorption



 Environment
 Operating Temperature 0 °C ~ +45 °C
 Storage Temperature -20 °C ~ +50 °C
 Humidity 10 ~ 90% RH, Non-condensing



Accessories

CA-SCT16I-100A-L080 CA-SCT24I-200A-L080 CA-SCT36I-400A-L080
CA-SCT16I-100A-L080 CA-SCT24I-200A-L080 CA-SCT36I-400A-L080

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 iXN-7CT5     CR  iXN Extension Module with 5-ch CT Input (RoHS) (Asia Only) (Optional 100A/200A/400A CT) 1
