• 433 MHz Radio Frequency
  • 16 RF Channels
  • Supported Modbus RTU protocol (Slave)
  • Supported data buffers of 31 iWSN sensors

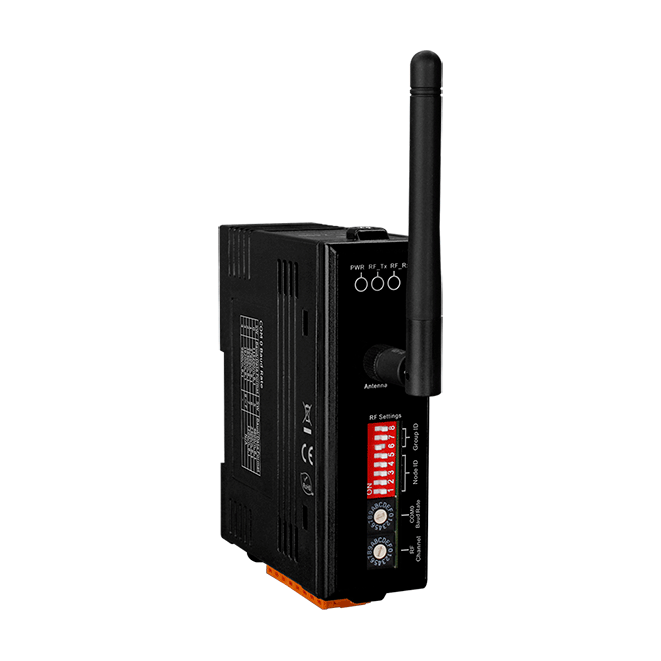

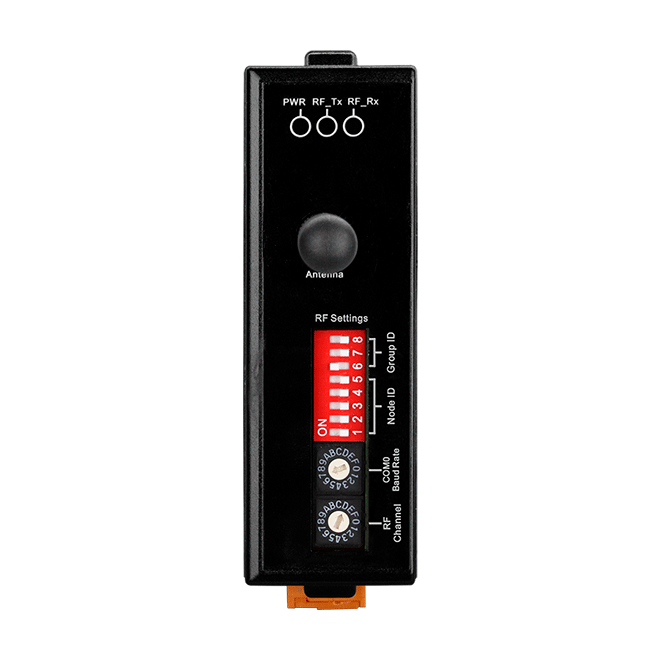

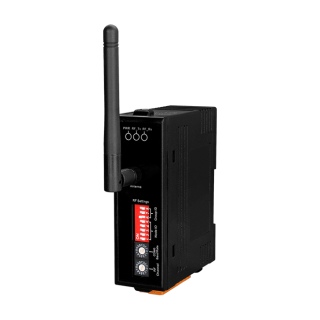

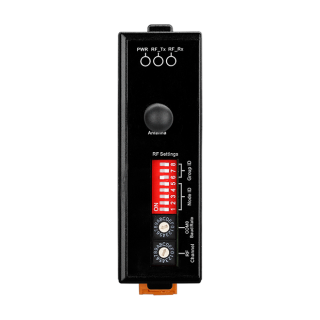

The iWSN-200U is an iWSN wireless data contractor, it supports one 433MHz wireless communication interface and one RS-232/RS-485 communication interface. Among it, the RS-232/RS-485 interface can’t be used simultaneously. The module supports Modbus RTU protocol slave, the main function can receive and buffer 31 iWSN sensor’s data by wireless, and the user can transmit Modbus RTU commands to read the sensor’s data by RS-232/RS-485 interface. In wireless interface, the module supports 16 wireless channels and 8 groups ID by rotary switch and DIP switch setting, the user can easy to use them to divide and manage the wireless network of 433MHz frequency.

In addition, iWSN Utility is a special software tool developed to simplify the configuration process and the setup of the iWSN network. It greatly reduces the burden of deploying the iWSN network and let users focus on big data processing and analysis. Through the intuitive visual operation interface of iWSN Utility, users can easily setup an iWSN data collection system on a local computer without knowing the Modbus address configuration of the iWSN data collector. The device tree diagram of the Utility allows users to clearly understand the network structure of the current iWSN network and is convenient to manage and check the configuration status of iWSN devices. In addition to showing the immediate value of iWSN sensing modules, the Utility also provides performance information and CSV/database storage functions, so that users can not only know the execution efficiency of each iWSN data collector, but also save time in building data storage systems.



 EMS Protection
 EFT (IEC 61000-4-4) +/- 1kV
 ESD (IEC 61000-4-2) +/- 4kV Contact
 Surge (IEC 61000-4-5) +/- 1kV


 LED Indicators
 Status 1 x Power
1 x RF_Tx
1 x RF_Rx


 Channels 0 to 15 (configured by rotary switch)
 Radio Frequency 433MHz
 Transmission Power 9±1dBm (PA Off) / 18±1dBm (PA On)
 Transmission Distance (LoS) 100m (Line of sign, LoS)


 Connector RP-SMA Male (Plug)
 Dimensions (mm) 10 x 108 (Ø x L)
 Type 0 dBi, Omni-Directional


 COM Ports
 Ports 1 x RS-485
1 x RS-232
(Cannot be used simultaneously)
 Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps, N81
 Protocol Modbus RTU
 Node Address 1 to 31


 Consumption 1W Max
 Input Type +10 to +30 VDC


 Dimensions (mm) 108 x 84 x 33 (W x L x H)
 Installation DIN-Rail


 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



3S001-1 ANT-Base-02
      3S001-1   ANT-Base-02


iWSN-200U     CR  iWSN data concentrator with RS-232/RS-485 serial port (RoHS) 1
