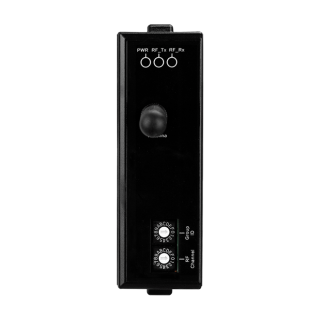

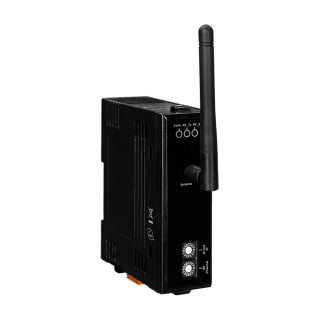

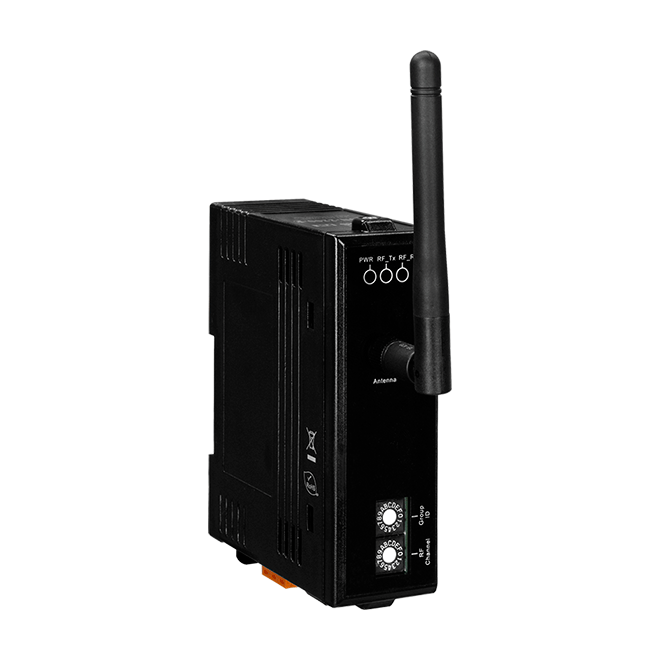

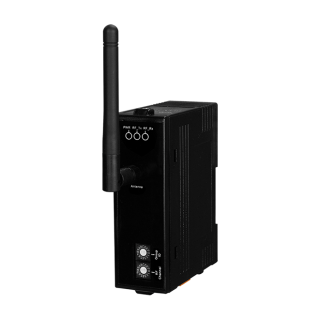

iWSN-200E

  • 433 MHz Radio Frequency
  • 16 RF Channels
  • Supported Modbus TCP protocol (Slave)
  • Supported data buffers of 31 iWSN sensors

Introduction

The iWSN-200E is an iWSN wireless data concentrators, it supports one 433MHz wireless communication interface and one Ethernet communication interface with PoE. The module supports Modbus TCP protocol slave, the main function can receive and buffer 31 iWSN sensor’s data by wireless, and the user can transmit Modbus TCP command to read the sensor’s data by Ethernet interface. In wireless interface, the series modules support 16 wireless channels and 8 groups ID by rotary switch and DIP switch setting, the user can easy to use them to divide and manage the wireless network of 433MHz frequency.

In addition, iWSN Utility is a special software tool developed to simplify the configuration process and the setup of the iWSN network. It greatly reduces the burden of deploying the iWSN network and let users focus on big data processing and analysis. Through the intuitive visual operation interface of iWSN Utility, users can easily setup an iWSN data collection system on a local computer without knowing the Modbus address configuration of the iWSN data collector. The device tree diagram of the Utility allows users to clearly understand the network structure of the current iWSN network and is convenient to manage and check the configuration status of iWSN devices. In addition to showing the immediate value of iWSN sensing modules, the Utility also provides performance information and CSV/database storage functions, so that users can not only know the execution efficiency of each iWSN data collector, but also save time in building data storage systems.

Application

Specifications

 EMS Protection
 EFT (IEC 61000-4-4) +/- 1kV
 ESD (IEC 61000-4-2) +/- 4kV Contact
 Surge (IEC 61000-4-5) +/- 1kV



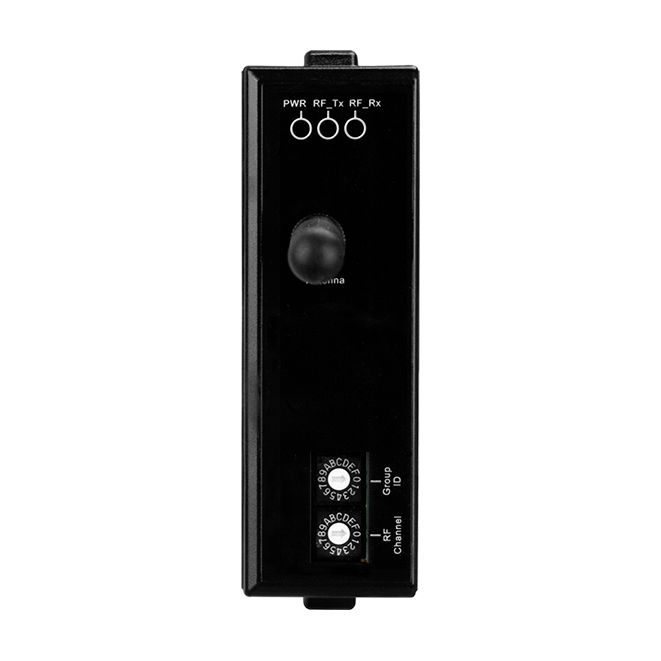

 LED Indicators
 Status 1 x Power
1 x RF_Tx
1 x RF_Rx



 RF
 Channels 0 to 15 (configured by rotary switch)
 Radio Frequency 433MHz
 Transmission Power 9±1dBm (PA Off) / 18±1dBm (PA On)
 Transmission Distance (LoS) 100m (Line of sign, LoS)



 Antenna
 Connector RP-SMA Male (Plug)
 Dimensions (mm) 10 x 108 (Ø x L)
 Type 0 dBi, Omni-Directional



 Ethernet
 Ports 1 x RJ-45
10/100Mbps
 Protocol Modbus TCP



 Power
 Consumption 1W Max
 Input Type +10 to +30 VDC



 Mechanical
 Dimensions (mm) 108 x 84 x 33 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



Accessories

3S001-1 ANT-Base-02
      3S001-1   ANT-Base-02

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
iWSN-200E     CR  iWSN data concentrator with PoE Ethernet port (RoHS) (Asia Only) 1
