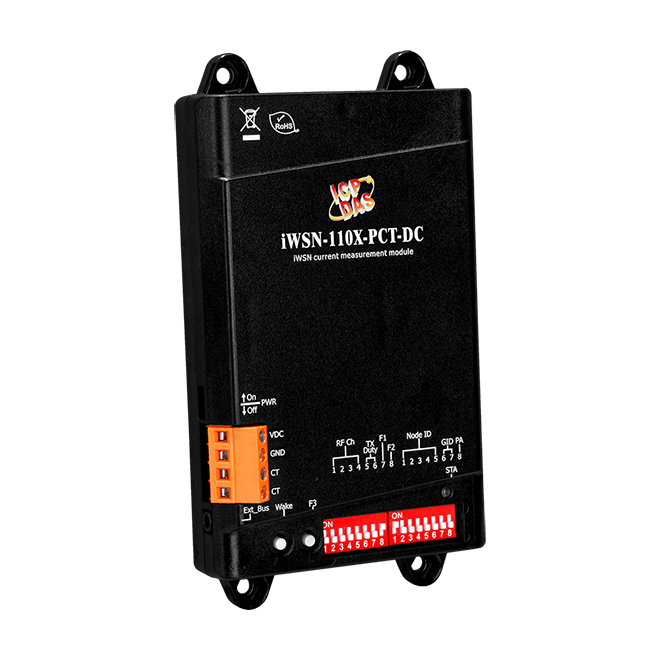

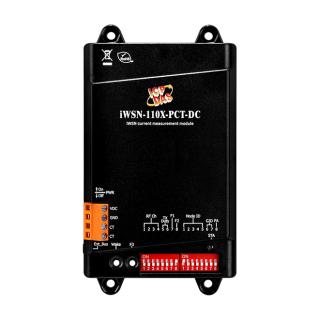

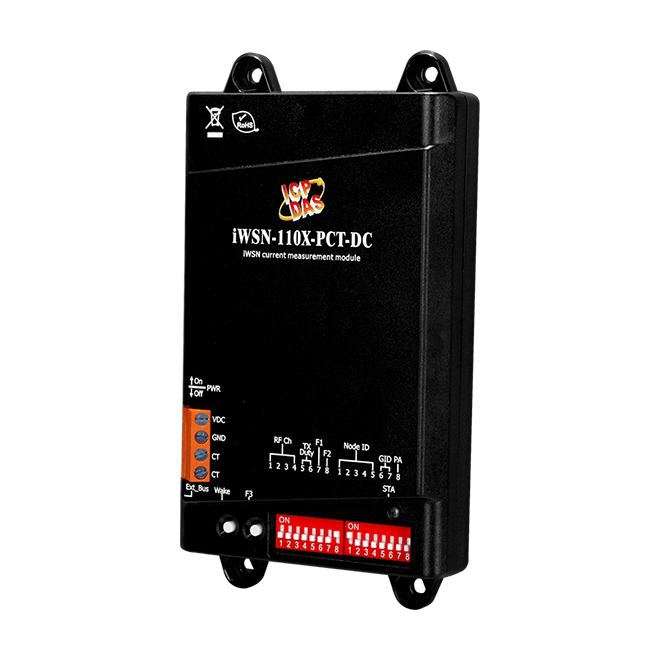

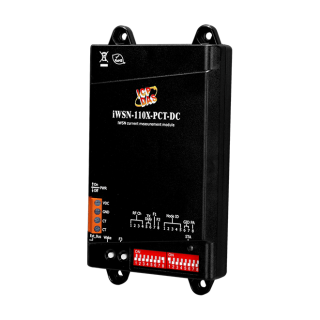

iWSN-110X-PCT-DC

  • Split-core current transformer (CT) for easy installation
  • Uses 433 MHz radio frequency for communication.
  • 16 RF Channels and 4 Group ID, consist of maximum 64 RF sub-networks
  • Supports maximum 400A open-core CT.
  • Provides expansion interface for flexibility and expansibility.
  • Offers wall-mount mechanism and magnet for installation

Introduction

The iWSN-110X-PCT-DC can realize true wireless deployment through Sub-1G's RF communication interface. The diversified IO interface, such as split-core CT and NTC thermistor (Requires expansion module) provides users more choices for various applications. Considering the maintenance and installation, the iWSN sensing module uses the DIP switch and rotary switch for configuration. Through the flexibility of the expansion interface and good price performance, the iWSN sensing module can be widely used in the application of saving power, big data analysis, and predict maintenance.

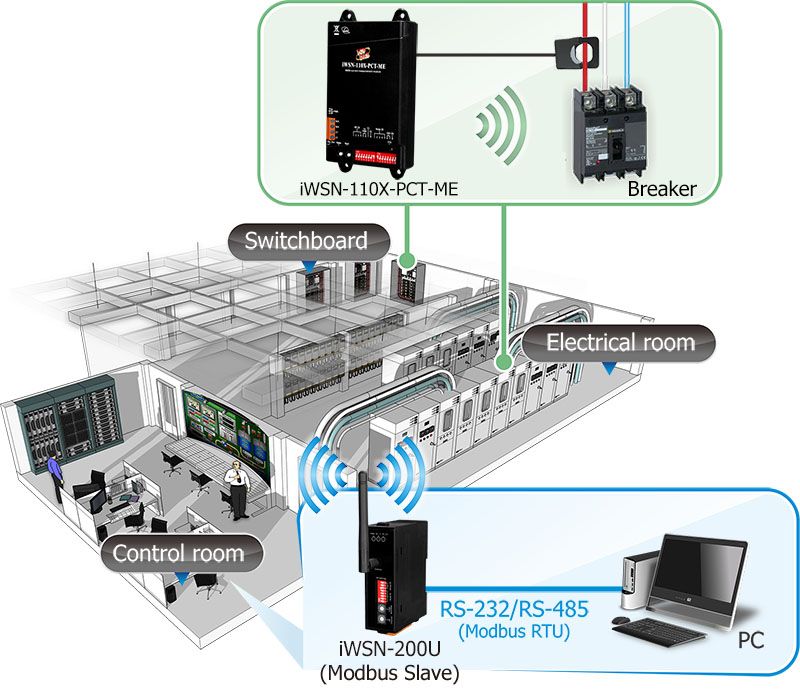

Application


Specifications

 Bus Interface
 Channels 1
 Type 4 pole 3.5mm audio cable with 25 cm wire lead



 EMS Protection
 EFT (IEC 61000-4-4) +/- 500 V
 ESD (IEC 61000-4-2) +/- 4 kV Contact



 Temperature Measurement
 Accuracy ± 3% or ± 0.3



 CT
 Split-core CT Channels 1
 Split-core CT Type Φ16mm (100A), Φ24mm (200A), or Φ36mm (400A); 8 m wire
 Input Voltage Maximum 500VAC, 50/60 Hz



 Antenna
 Type 0 dBi Omni directional PCB antenna



 Power
 Consumption 0.5W Max.
 Input Type +10 to +30 VDC



 Mechanical
 Dimensions (mm) 85 x 152 x 25 (W x L x H)
 Installation Wall-mount or magnet adsorption



 Environment
 Operating Temperature 0 °C ~ +45 °C
 Storage Temperature -20 °C ~ +50 °C
 Humidity 10 ~ 90% RH, Non-condensing



Accessories

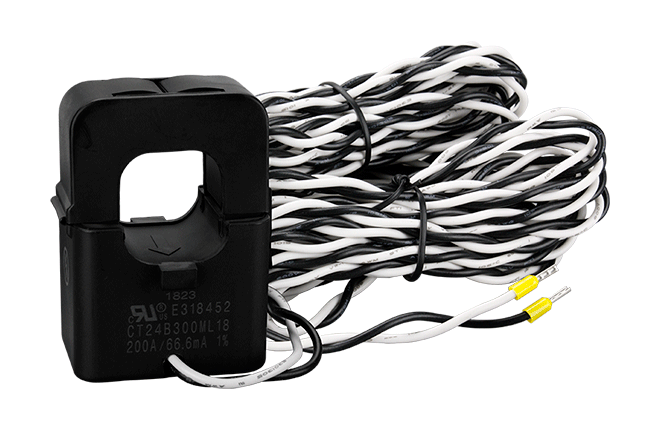

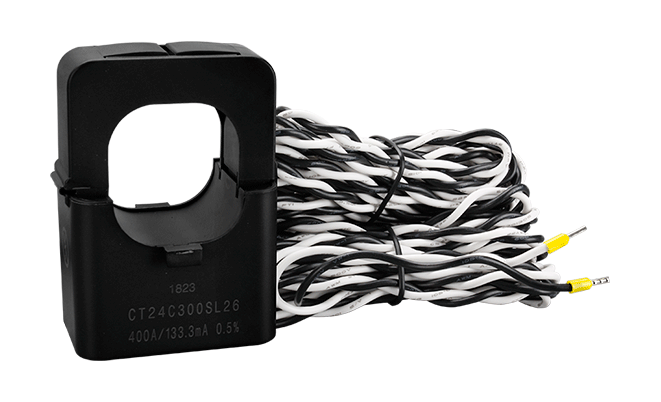

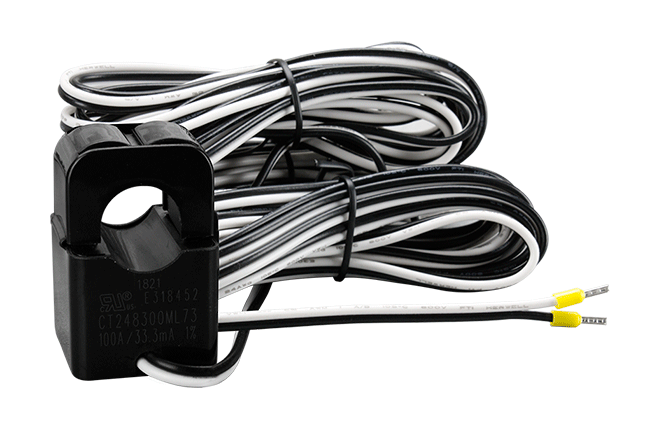

CA-SCT16I-100A-L080 CA-SCT24I-200A-L080 CA-SCT36I-400A-L080
CA-SCT16I-100A-L080 CA-SCT24I-200A-L080 CA-SCT36I-400A-L080

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
iWSN-110X-PCT-DC     CR  iWSN Current Sensing Module with 1-ch CT Input and 1 Expansion Interface (RoHS) (Optional 100A/200A/400A CT) (Asia Only) 1
