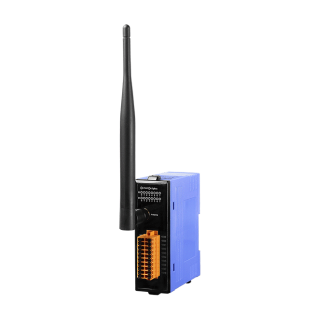

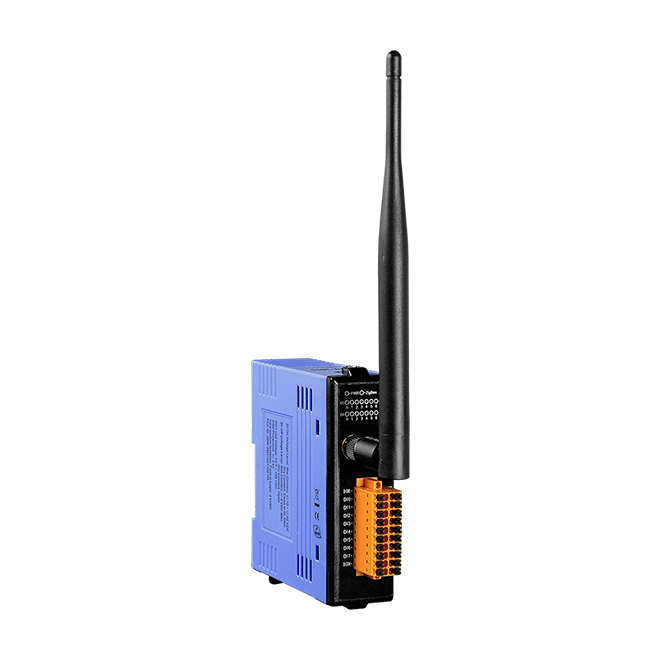

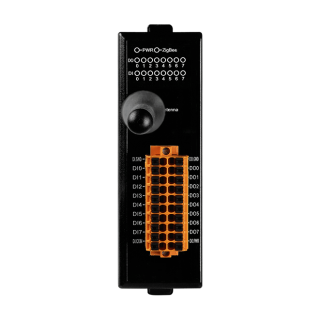

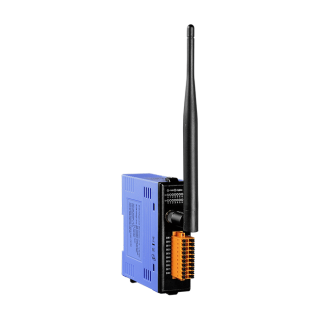

ZT-2055-IOP

ISM 2.4 GHz Operating Frequency
Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
Wireless Transmission Range up to 700 m (Default)
Adjustable RF Transmission Output Power
8 Channels Pair-connection of the Digital Input and Digital Output
DO Safe Value setting for Wireless Disconnection Monitoring
Configurable I/O Pairing Number
Surge and ESD Protection
Supports AES-128 Encryption for the Wireless Communication
DIN-Rail Mountable

Introduction

The ZT-2055-IOP module is a ZigBee coordinator that offers 8 isolated channels for digital input and 8 isolated channels for digital output. An embedded I/O channel binding function means that there is no need to use an external controller. The status of each channel is bound to a remote channel of the ZT-2055. The ZT-2055-IOP continually updates the status of the DO channel of the remote ZT-2055 based on its own DI channels. It also reads the status of the DI channel of the remote ZT-2055 to synchronize its own DO channels. The ZT-2055-IOP also provides external DIP switches for easy configuration, which can be used to synchronize the digital signals in any difficult wiring environment.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

 Isolation
 Intra-module Isolation 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) 4 kV for Power Line
 ESD (IEC 61000-4-2) 4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
 Surge (IEC 61000-4-5) 3 kV for Power Line



 LED Indicators
 Status 1 x Power/Debug
1 x Communication
8 x Digital Input
8 x Digital Output



 ZigBee
 Antenna 2.4 GHz, 5 Omni-Directional
 Certifications CE/FCC, FCC ID
 Max. Slaves 255
 Standard ZigBee 2007 Pro
 Transmission Power 11 dBm (FCC Certificated)
 Transmission Distance (LoS) 700 m (Typical)



 Digital Input
 Channels 8
 Type Dry Contact,
Wet Contact
 Sink/Source (NPN/PNP) Dry: Source
Wet: Sink/Source
 ON Voltage Level Dry: Close to GND
Wet: +10 VDC ~ +50 VDC
 OFF Voltage Level Dry: Open
Wet: Max. +4 VDC
 Input Impedance 10 KΩ
 Overvoltage Protection ±70 VDC



 Digital Output
 Channels 8
 Type Open Collector
 Sink/Source (NPN/PNP) Sink
 Load Voltage +3.5 ~ 50 VDC
 Load Current 650 mA/Channel
 Overvoltage Protection 1.4 A (with short-circuit protection)
 Overload Protection 60 VDC



 Power
 Input Range +10 VDC ~ +30 VDC
 Consumption Max. 2.5 W



 Mechanical
 Dimensions (mm) 33 x 96 x 110 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
ZT-2055-IOP     CR  ZigBee I/O Pair-connection Module with 8-ch Isolated DI and 8-ch DO (ZigBee Coordinator) (RoHS)
(Asia Only)		 1
