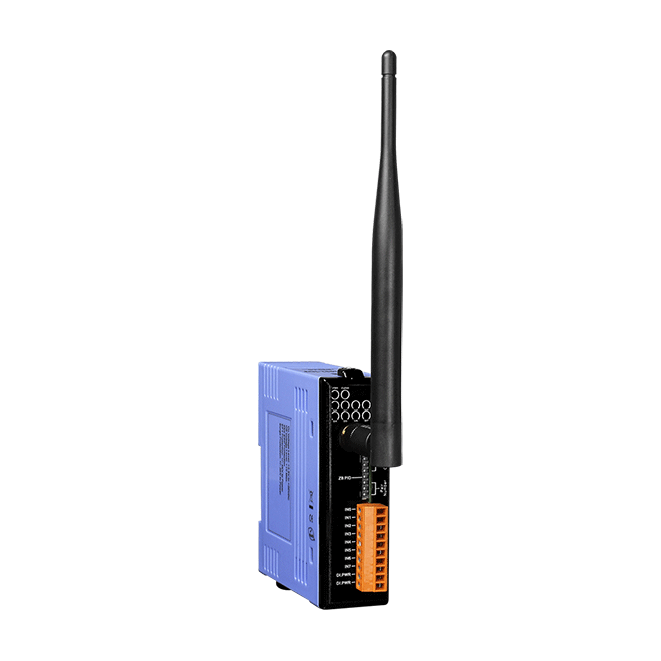

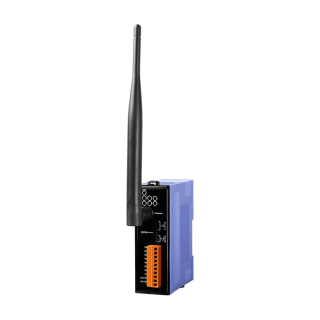

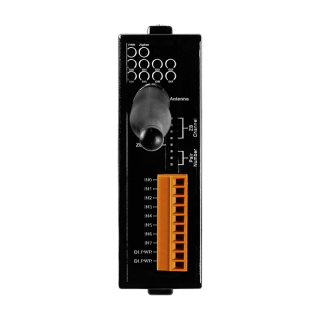

ZT-2052-IOP

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • 8 Channels Pair-connection of the Digital Input
  • DO Safe Value setting for Wireless Disconnection Monitoring
  • Configurable I/O Pairing Number 
  • Surge and ESD Protection
  • Supports AES-128 Encryption for the Wireless Communication
  • DIN-Rail Mountable

Introduction

The ZT-2052-IOP module acts as a ZigBee coordinator that provides 8-channel digital input pair-connection function with module of ZT-2042 (4-ch PhotoMOS Relay Output and 4-ch Open Collector). An embedded I/O channel binding function means that there is no need to use an external controller. The status of each ZT-2052-IOP channel triggers the corresponding remote digital output channels on the ZT-2042 module. The ZT-2052-IOP continually transmits updates on the status of the digital input channels to the remote ZT-2042 to ensure that the digital output channels are synchronized. The ZT-2052-IOP also provides external DIP and Rotary switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

 Isolation
 Intra-module Isolation 3000 Vrms



 EMS Protection
 ESD (IEC 61000-4-2) +/-4 kV contact for each channel



 LED Indicators
 Status 1 x Power and Communication
8 x Digital Input



 ZigBee
 Antenna 2.4 GHz, 5 Omni-Directional
 Max. Slaves 255
 Standard ZigBee 2007 Pro
 Transmission Power 11 dBm (FCC Certificated)
 Transmission Distance (LoS) 700 m (Typical)



 Digital Input
 Channels 8
 Type Wet Contact
 ON Voltage Level Wet: +3.5 VDC ~ +30 VDC
 OFF Voltage Level Wet: Max. +1 VDC
 Input Impedance 3 kΩ, 0.33 W



 Power
 Input Range +10 VDC ~ +30 VDC
 Consumption Max. 1 W



 Mechanical
 Dimensions (mm) 33 x 88 x 110 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
ZT-2052-IOP     CR  ZigBee I/O Pair-connection Module with 8-ch Isolated DI (ZigBee Coordinator) (RoHS)
(Asia Only)		 1
