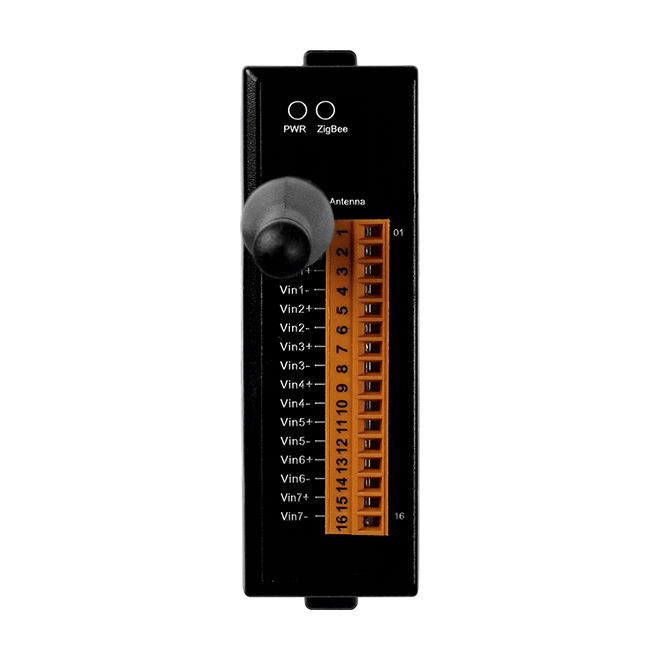

ZT-2017

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4 G / ZigBee Specifications
  • Wireless Transmission Range up to 700 m
  • GUI Configuration Software (Windows Version)
  • 8 Differential Analog Input Channels (mV, V)
  • Individual Channel Configuration
  • Overvoltage Protection up to 240 Vrms
  • ±4 kV ESD Protections (Conact for each Terminal)
  • DIN-Rail Mounting

Introduction

The ZT-2017 is a wireless 16-bit, 8-channel differential analog input ZigBee module that provides a programmable input range on all analog channels (±150 mV, ±500 mV, ±1 V, ±5 V or ±10 V). Each analog channel can be configured for an individual input range and has a high 240 Vrms overvoltage protection. Users can easily to configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

 CPU Module
 Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Power Line, Communication Line and each Channel,
±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±3 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication



 ZigBee
 Antenna 2.4 GHz - 5 dBi Omni-directional Antenna
 Certifications FCC/FCC ID, CE (RED excluded)
 Max. Slaves 255
 Protocol Supports DCON and Modbus RTU Protocols
 Standard ZigBee 2007 Pro
 Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
 Transmission Distance (LoS) 700 m (Typical)



 Analog Input
 Channels 8 Differential
 Type ±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
(Requires Optional External 125 Ω Resistor)
 Resolution 16-bit
 Sampling Rate 16-bit, 10 Samples/Sec. (Total)
 Bandwidth 15.7 Hz
 Input Impedance >2 MΩ
 Common Mode Rejection 86 dB
 Normal Mode Rejection 100 dB
 Overvoltage Protection 240 Vrms
 Individual Channel Configuration Yes
 Intra-module Isolation 3000 VDC



 Analog Output
 Accuracy ±0.1% of FSR



 Power
 Input Range +10 VDC ~ +30 VDC
 Consumption 1.4 W(Max.)



 Mechanical
 Dimensions (mm) 33 x 87 x 110 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
ZT-2017     CR  ZigBee Wireless 8-ch Analog Input Module with High Voltage Protection (ZigBee Router) (RoHS) (Asia Only) 1
