Data Acquisition

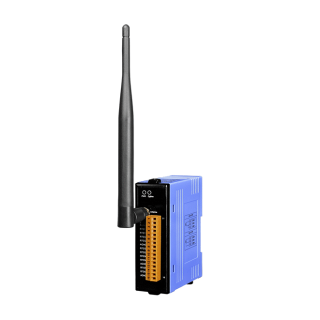

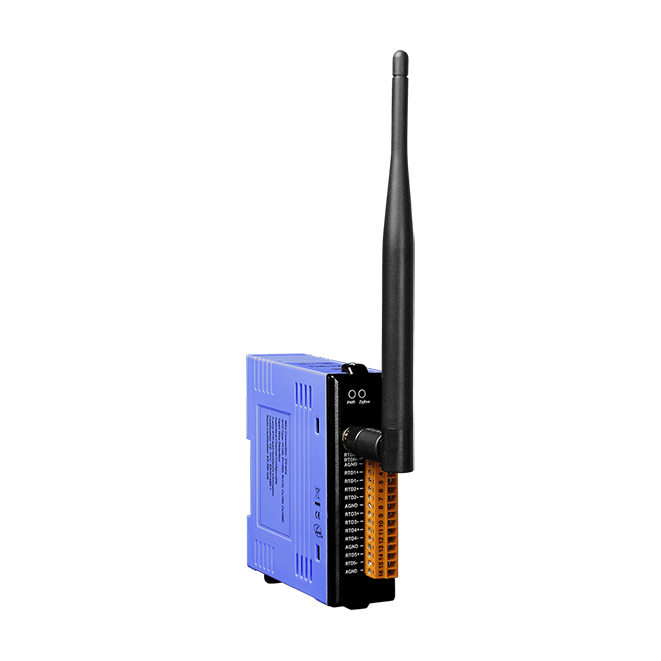

ZT-2015

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4 G / ZigBee Specifications
  • Wireless Transmission Range up to 700 m
  • External DIP and Rotary Switches for easy Configuration
  • GUI Configuration Software (Windows Version)
  • 3-wire RTD Input with Lead Resistance Elimination
  • Individual Channel Configuration
  • Open Wire Detection
  • Overvoltage Protection
  • DIN-Rail Mounting

Introduction

The ZT-2015 offers 6 wireless input channels, each of which can be connected to different kinds of RTD sensors. It features automatic compensation for 3-wire RTD, with long-distance measurement capabilities so that it can measure accurately regardless of the length of the wires. Also the ZT-2015 is fully RoHS-compliant and has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID, ZB-channel and type code settings using a combination of rotary and DIP switches.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
ZT-2015

Specifications

 CPU Module
 Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)



 Isolation
 Intra-module Isolation 3000 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Power Line, Communication Line and each Channel, ±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±3 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication



 ZigBee
 Antenna 2.4 GHz - 5 dBi Omni directional
 Certifications FCC/FCC ID, CE (RED excluded)
 Max. Slaves 255
 Protocol Supports DCON and Modbus RTU Protocols
 Standard 11 dBm (FCC Certificated) (Max. 19 dBm)
 Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
 Transmission Distance (LoS) 700 m (Typical)



 Analog Input
 Channels 6
 Type 2/3-wire RTD
 Sensor Type Pt100, Pt1000, Ni120, Cu100, Cu1000
 Sampling Rate 12 Samples/Sec. (Total)
 Common Mode Rejection 150 dB
 Normal Mode Rejection 100 dB
 Overvoltage Protection 120 VDC/110 VAC
 Individual Channel Configuration Yes
 Open Wire Detection Yes
 3-wire RTD Lead Resistance Elimination Yes



 Analog Output
 Accuracy ±0.05%



 Power
 Input Range +10 VDC ~ +30 VDC
 Consumption 1 W(Max.)



 Mechanical
 Dimensions (mm) 33 x 87 x 110 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 ZT-2015     CR  ZigBee Wireless 6-ch RTD Input Module with 3-wire RTD Lead Resistance Elimination (ZigBee Router) (RoHS) (Asia Only) 1
