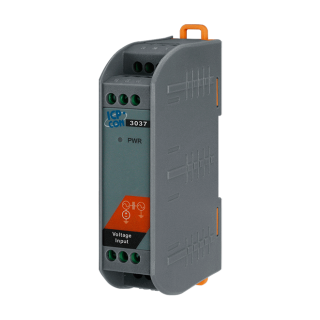

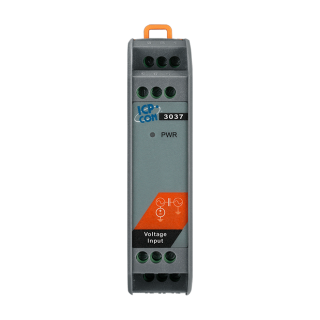

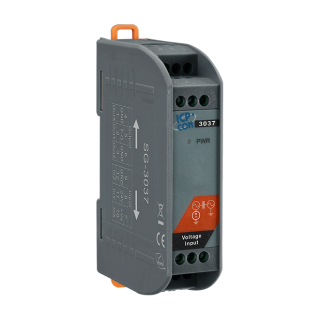

SIGNAL CONDITIONING

SG-3037-G

  • 3-channel voltage input & output
  • Input voltage range: 0-24V
  • Provides signal bandwidth: 50 kHz
  • Provides 24V power supply for the accelerometer

Introduction

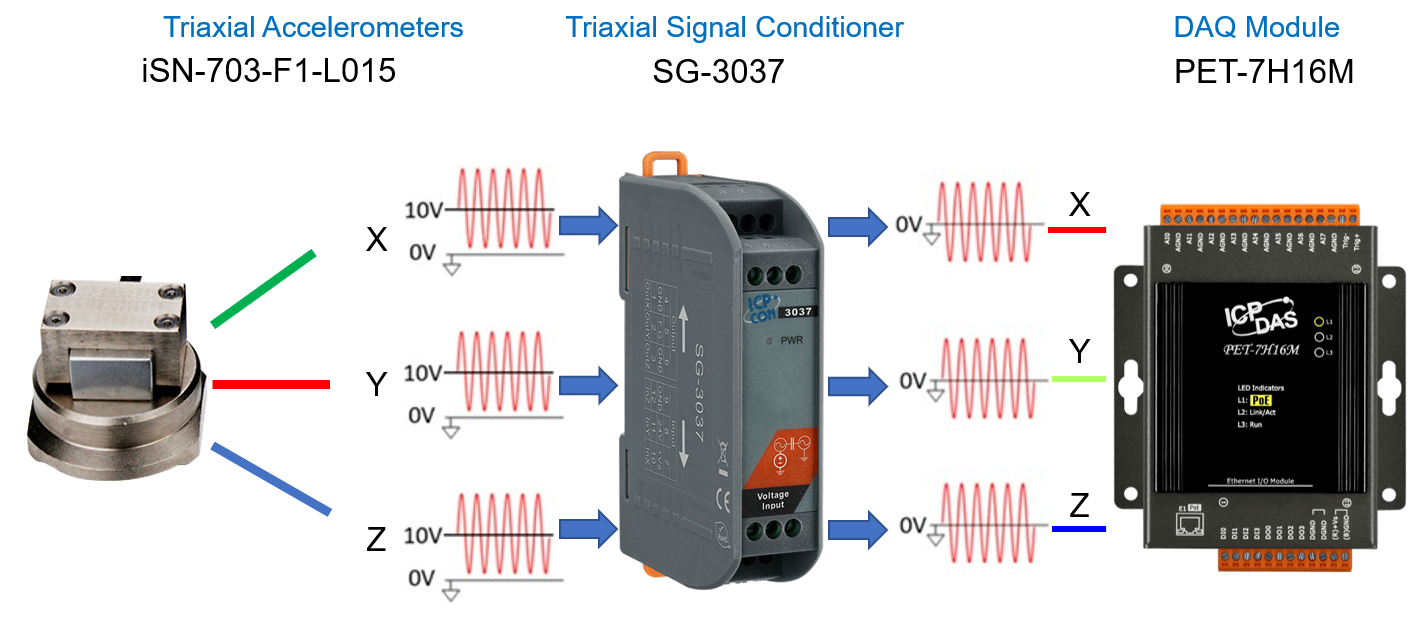

SG-3037 is a Triaxial Signal Conditioner. SG-3037 with 3-channel analog inputs can connect to the voltage output accelerometer, and convert the signal measured from the accelerometer into the analog voltage output. PET-7H16M module collects the vibration data through SG-3037, and then send them via high-speed Ethernet to the data center for processing and analysis.

Application

Data Acquisition System
Remote Diagnosis
Vibration Measurement
Testing Equipment

Specifications

 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
 Surge (IEC 61000-4-5) ±1 kV for Power Line



 LED Indicators
 Status 1 as Power Indicator



 Analog Input
 Channels 3
 Type Voltage
 Range 0 ~ 24 VDC
 Accuracy ±5% of FSR
 Bandwidth 50 kHz



 Analog Output
 Channels 3
 Type Voltage
 Range ±10 VDC



 Excitation Voltage Output
 Range 24 VDC



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.5 W



 Mechanical
 Dimensions (mm) 25 mm x 114 mm x 70 mm (W x L x H)
 Installation DIN-Rail or Wall Mounting



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -40 ~ +85 °C (-22 to 176 ℉)
 Humidity 10% ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 SG-3037-G     CR  Triaxial signal conditioner for voltage output type accelerometer (RoHS) 1
